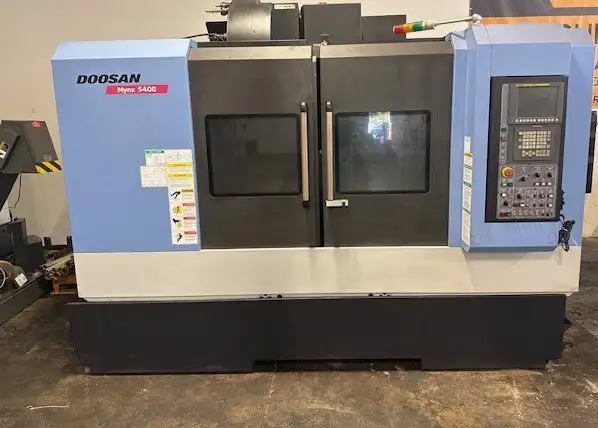

2012 DOOSAN MYNX 5400

SPECIFICATIONS:

X-AXIS TRAVEL ............................. 40.2" / 1020mm
Y-AXIS TRAVEL ............................. 21.3" / 540mm
Z-AXIS TRAVEL ............................. 20.9" / 530mm
TABLE SIZE ................................ 47.2" x 21.3"
TABLE LOAD CAPACITY ....................... 1764 LBS
TABLE TOP TO SPINDLE NOSE ................. 5.9" - 26.8"
SPINDLE TAPER ............................. CAT-40
SPINDLE SPEED ............................. 8,000 RPM
SPINDLE MOTOR ............................. 30 HP
SIDE MOUNT TOOLCHANGER .................... 30 ATC
RAPID TRAVERSE RATE (X,Y/Z) ............... 1181/945 IPM
CUTTING FEED RATES ........................ .04 - 472 IPM
APPROXIMATE FLOOR SPACE ............... 96.2" x 132" x 108"H
APPROXIMATE MACHINE WEIGHT ................ 15,500 Lbs.

EQUIPPED WITH:

- FANUC SERIES I WITH EZ GUIDE CONTROL
- BOX WAY CONSTRUCTION
- COOLANT THROUGH SPINDLE
- DOUBLE ARM, SIDE MOUNT AUTOMATIC TOOL CHANGER
- DUAL AUGERS
- 20 HORSE POWER SPINDLE MOTOR
