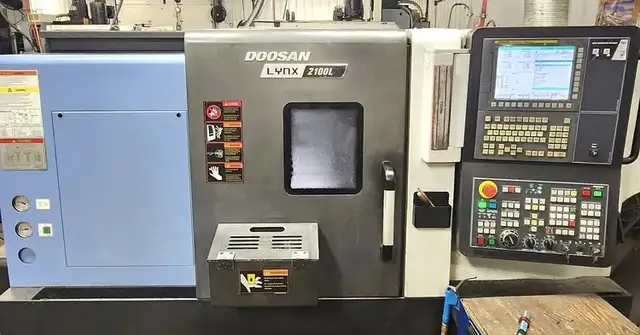

2017 DOOSAN LYNX 2100LB

Specifications

MAX CUTTING DIAMETER 13.78"
MAX CUTTING LENGTH 22"
X-AXIS TRAVEL 8.1"
Z-AXIS TRAVEL 22"
CHUCK SIZE 8"
BAR CAPACITY 2.6"
SPINDLE MOTOR 20 hp
SPINDLE SPEED 4,500 RPM
RAPID TRAVERSE RATE X-AXIS 1,181 in/min.
RAPID TRAVERSE RATE Z-AXIS 1,181 in/min.
TURRET POSITIONS 12
Dimensions 102" x 63" x 66"
Weight 7500 lbs

Equipped With

DOOSAN FANUC i SERIES CNC CONTROL
COLLET CHUC K SYSTEM
8” 3-JAW HYDRAULIC CHUCK
CHIP CONVEYOR
TOOL PRESETTER
TAILSTOCK
PARTS CATCHER
** ORIGINAL OWNER
** MACHINE CUTTING PRIMARILY STAINLESS STEEL & ALUMINUM
** AS OF JANUARY 2026 - CUTTING TIME: 7,500 HOURS
