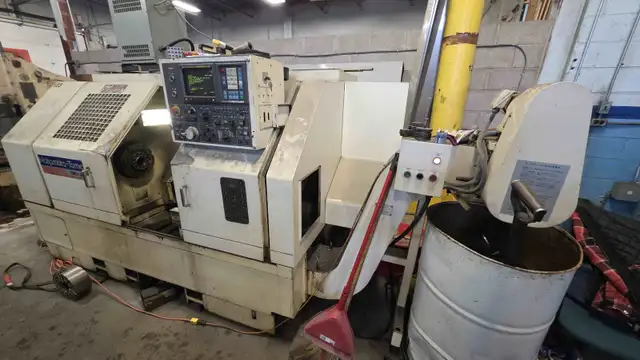

Here Is A Nakamura-Tome TMC-30 CNC Lathe We Have In Stock,
If You Require Anymore Photo`s & Info Please Call Or E-mail Us.

Specifications:

Model - TMC-30
Year - 08/1989
Swing Over Bed - 19.68”
Max Turning Diameter - 12.99”
Max Work Piece Length - 21.65”
Cross Slide Travel X Axis - 8.46”
Longitudinal Travel Z Axis - 22.83”
Spindle Bore - 2.5”
Chuck Diameter (Hydraulic) - 10”
ATC - 10
Max Spindle Speed - 3500 RPM
Control - Fanuc
Main Motor - 11/15 KW
Electrics - 220V/3PH/60HZ
Made In - Japan
Approximate Weight - 9,500 LBS
Approximate Overall Dimension -147”L x 60”W x 98”H

Equipped With:

Fanuc OT CNC Control
10” Three Jaw Hydraulic Chuck
10 Position Turret
Tailstock

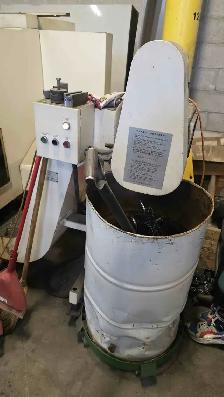

Chip Conveyor
Coolant System
Foot Pedal
Fully Enclosed
