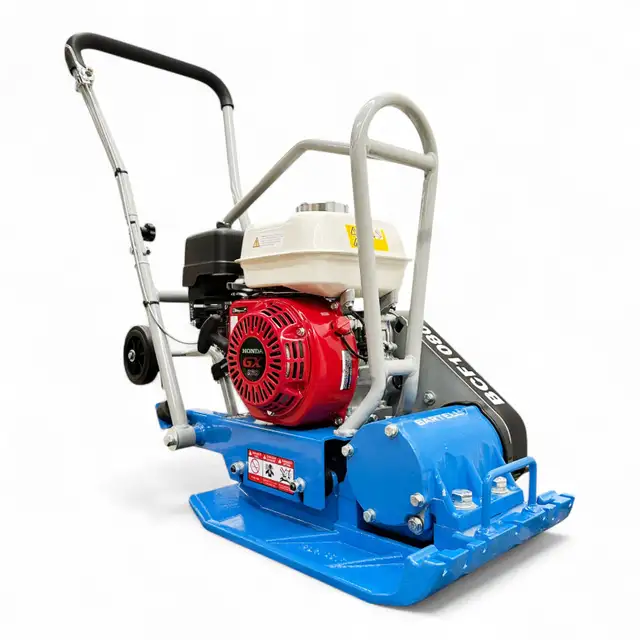

Bartell BCF1080 Forward Plate Compactor - MSRP $2,280.00 SALE PRICE $2,166.00

The Bartell BCF1080 Forward Plate Compactor is a compact, hard-hitting solution designed for light compaction applications. As the smallest compactor in Bartell's lineup, it is ideal for contractors working on landscaping, pathways, and small asphalt or soil projects. Lightweight and easy to maneuver, the BCF1080 delivers reliable compaction performance while remaining low maintenance and highly portable around the job site.

KEY FEATURES

HONDA GX160 ENGINE POWER: Powered by a Honda GX160 engine rated at 4.8 HP (3.6 kW), this compactor delivers consistent and dependable performance. The proven engine design ensures easy starting, fuel efficiency, and long service life.
HIGH COMPACTION FORCE: Produces 2381 lbf (10.5 kN, 1080 kgf) of compaction force for effective soil and asphalt consolidation. This ensures solid, stable surfaces with fewer passes required.
ROBUST THROTTLE CONTROL: The throttle control is conveniently mounted on the handle for safe and precise operator control. This placement enhances ease of use while keeping operation smooth and responsive.
ANTI-VIBRATION HANDLE: Designed to reduce operator fatigue during extended use. The anti-vibration system improves comfort and helps maintain better control throughout operation.
FOLDING HANDLE DESIGN: The folding handle allows for compact storage and easy transport between job sites. This makes it convenient for contractors with limited storage space.
RETRACTABLE TRANSPORT WHEELS: Built-in wheels flip down quickly for smooth mobility around the job site. This eliminates the need for additional transport equipment.
INTEGRATED LIFTING BALE: The lifting bale provides a secure attachment point for cranes or hoists. This ensures safe loading and unloading during transport.
STRAIGHT-EDGE PLATE DESIGN: The straight-edge plate allows compaction close to forms, curbs, and edges without leaving unreachable margins. This improves overall finish quality.
SEALED BELT HOUSING: The sealed housing protects internal components from debris and dust. This reduces maintenance requirements and extends equipment lifespan.
OPTIONAL URETHANE PAD: An optional urethane pad helps protect pavers and slabs from scratches or breakage during compaction. Ideal for delicate hardscape applications.

TECHNICAL SPECIFICATIONS

ENGINE: Honda GX160, 4.8 HP (3.6 kW)
COMPACTION FORCE: 2381 lbf (10.5 kN, 1080 kgf)
MAX TRAVEL SPEED: 82 ft/min (25 m/min)
PLATE SIZE: 14 × 22 in (35 × 55 cm)
LENGTH: 28 in (711 mm)
WIDTH: 16 in (406 mm)
HEIGHT: 23 in (584 mm)
OPERATING WEIGHT: 137 lb (62 kg)

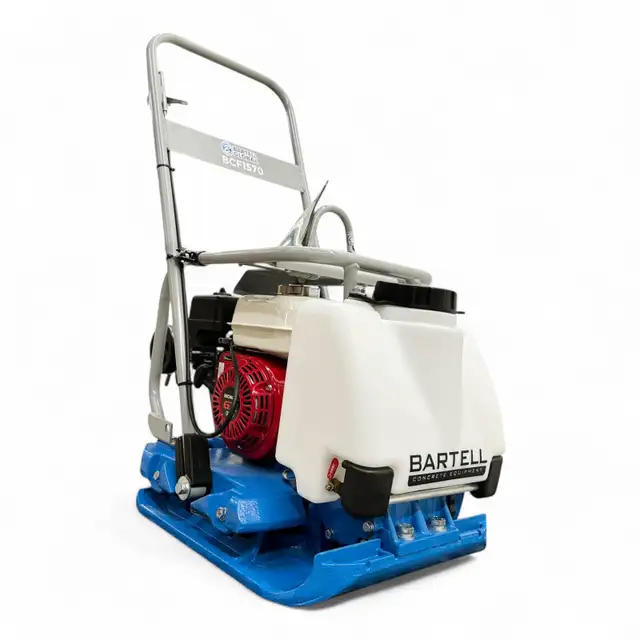

Bartell BCF1570 Forward Plate Compactor - MSRP $2,880.00 SALE PRICE $2,736.00

The Bartell BCF1570 Forward Plate Compactor is an innovative, hard-hitting, and low-maintenance solution designed for a wide range of compaction applications. As Bartell's most popular forward plate model, it delivers reliable performance for contractors working on soil, gravel, and asphalt projects. Equipped with a built-in removable water tank, the BCF1570 is ideal for asphalt work while also improving dust control on dirt and soil surfaces.

KEY FEATURES

HONDA GX160 GAS ENGINE: Powered by a Honda GX160 engine rated at 4.8 HP (3.6 kW), this compactor provides dependable starting and consistent performance. The proven engine design ensures durability and fuel efficiency on demanding job sites.
HIGH COMPACTION FORCE: Produces 3461 lbf (15 kN, 1570 kgf) of compaction force for effective soil and asphalt consolidation. This higher force output allows for improved density and fewer passes.
BUILT-IN REMOVABLE WATER TANK: The integrated water tank allows safe and efficient asphalt compaction by preventing material from sticking to the plate. It also helps control dust when working on soil or gravel applications.
ROBUST THROTTLE CONTROL: Conveniently mounted on the handle for safe and responsive operator control. This positioning improves handling and operational efficiency.
ANTI-VIBRATION HANDLE: Designed to reduce operator fatigue during extended use. The vibration-dampening system enhances comfort and control throughout operation.
FOLDING HANDLE DESIGN: The folding handle allows for compact storage and easier transport between job sites. Ideal for contractors managing limited storage space.
RETRACTABLE TRANSPORT WHEELS: Flip-down wheels provide built-in mobility, allowing operators to move the compactor easily without additional equipment.
INTEGRATED LIFTING BALE: Provides a secure lifting point for cranes or hoists. Ensures safe loading and unloading during transport.
STRAIGHT-EDGE PLATE DESIGN: Allows compaction close to forms, curbs, and edges without leaving gaps. This ensures a cleaner and more professional finish.
SEALED BELT HOUSING: Protects internal components from debris and dust contamination. Reduces maintenance requirements and extends equipment life.
OPTIONAL URETHANE PAD: Protects pavers and slabs from scratches or breakage during compaction. Ideal for delicate hardscape installations.

TECHNICAL SPECIFICATIONS

POWER SOURCE: Gas – Honda GX160, 4.8 HP (3.6 kW)
COMPACTION FORCE: 3461 lbf (15 kN, 1570 kgf)
MAX TRAVEL SPEED: 82 ft/min (25 m/min)
PLATE SIZE: 20 × 21 in (500 × 525 mm)
LENGTH: 44 in (1118 mm)
WIDTH: 20 in (508 mm)
HEIGHT: 33 in (838 mm)
OPERATING WEIGHT: 217 lb (98 kg)

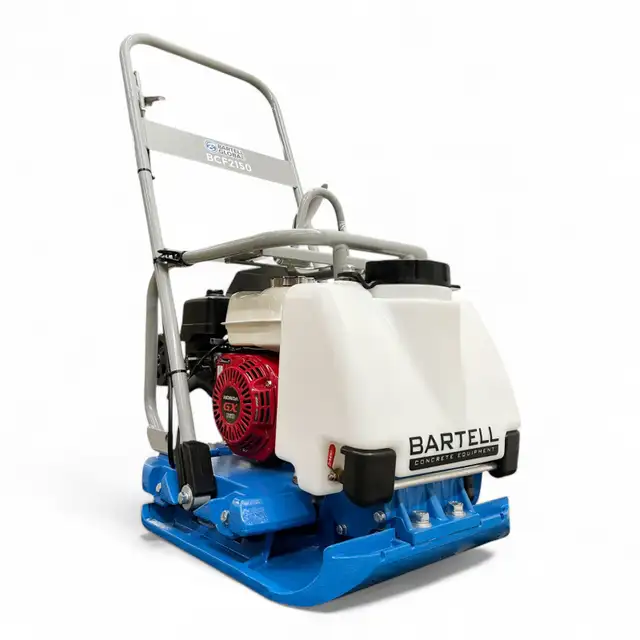

Bartell BCF2150 Forward Plate Compactor - MSRP $3,345.00 SALE PRICE $3,178.00

The Bartell BCF2150 Forward Plate Compactor is the largest and most powerful forward plate in the Bartell lineup. Designed for demanding compaction applications, it delivers high compaction force ideal for paver installations, base preparation, asphalt work, and soil compaction. With over 4000 lbs of compaction force, the BCF2150 is perfectly suited for compacting both base materials and pavers themselves when used with the optional polyurethane pad.

KEY FEATURES

HONDA GX160 ENGINE POWER: Powered by a Honda GX160 engine rated at 4.8 HP (3.6 kW), this compactor delivers reliable starting and consistent performance. The proven engine ensures durability and dependable operation on tough job sites.
HIGH COMPACTION FORCE: Produces 4740 lbf (21 kN, 2150 kgf) of compaction force, exceeding the 4000 lb requirement often specified for paver base compaction. This makes it ideal for both compacting base layers and setting pavers securely.
BUILT-IN REMOVABLE WATER TANK: The integrated water tank prevents asphalt from sticking to the plate during operation. It also improves dust control when compacting soil or aggregate materials.
ROBUST THROTTLE CONTROL: Conveniently mounted on the handle for safe and precise operator control. This design enhances responsiveness and ease of use.
ANTI-VIBRATION HANDLE: Reduces operator fatigue by minimizing vibration transfer. This improves comfort and control during extended compaction tasks.
FOLDING HANDLE DESIGN: Allows compact storage and easier transport between job sites. Ideal for contractors with limited trailer or storage space.
RETRACTABLE TRANSPORT WHEELS: Flip-down wheels provide built-in mobility, allowing easy repositioning around the job site without additional equipment.
INTEGRATED LIFTING BALE: Offers a secure lifting point for cranes or hoists. Ensures safe loading and unloading during transportation.
STRAIGHT-EDGE PLATE DESIGN: Enables compaction close to curbs, forms, and edges without leaving gaps. This results in a clean, professional finish.
SEALED BELT HOUSING: Protects internal components from debris and dust contamination. This reduces maintenance needs and extends equipment lifespan.
OPTIONAL URETHANE PAD: Protects pavers and slabs from scratches and breakage during compaction. Essential for delicate hardscape installations.

TECHNICAL SPECIFICATIONS

ENGINE: Honda GX160, 4.8 HP (3.6 kW)
COMPACTION FORCE: 4740 lbf (21 kN, 2150 kgf)
MAX TRAVEL SPEED: 82 ft/min (25 m/min)
PLATE SIZE: 20 × 21 in (500 × 525 mm)
LENGTH: 44 in (1118 mm)
WIDTH: 20 in (508 mm)
HEIGHT: 33 in (838 mm)
OPERATING WEIGHT: 219 lb (95 kg)

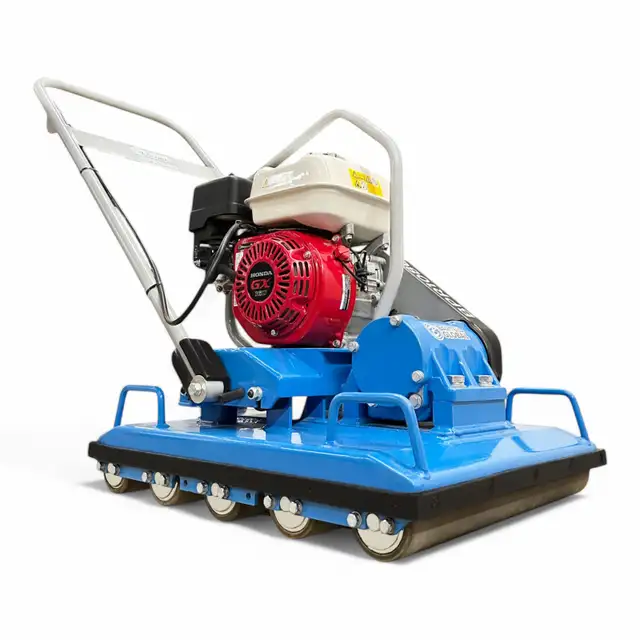

Bartell BPR1080 Vibratory Paver Roller - MSRP $4,470.00 SALE PRICE $4,247.00

The Bartell BPR1080 Vibratory Paver Roller is engineered specifically for hardscape professionals who demand safe, effective joint consolidation when installing pavers and slabs. Designed to gently work polymeric sand deep into joints, right down to the bedding layer, this roller eliminates the risk of cracking or chipping that can occur with traditional plate compactors. Built tough and powered by a reliable Honda engine, the BPR1080 is an essential tool for professional paver installations.

KEY FEATURES

DESIGNED FOR PAVERS & SLABS: Engineered to safely roll over a wide range of stone and concrete textures and thicknesses. The vibratory rollers consolidate polymeric sand without causing surface damage.
CHOICE OF 4 OR 5 ROLLERS: Available in four-roller or five-roller configurations to suit different project requirements. Both versions deliver consistent 1080 kgf (2381 lbf / 10.5 kN) centrifugal force for effective joint compaction.
HONDA GX160 ENGINE POWER: Powered by a Honda GX160 engine rated at 5.5 HP, providing dependable performance and easy starting. Ideal for consistent vibration output on demanding job sites.
ADJUSTABLE OPERATOR HANDLE: The adjustable handle enhances comfort and safety for operators of varying heights. This reduces fatigue during extended use.
THROTTLE CONTROL ON HANDLE: Conveniently mounted throttle allows safe and responsive control during operation. Improves ease of use and operational efficiency.
ONE-PERSON LOADING & UNLOADING: Built-in hand-holds allow for easy transport and positioning. Designed so one operator can safely manage loading and unloading.
PROTECTIVE BAR WITH BALANCED LIFTING POINT: Helps prevent accidental damage while providing a stable lifting location. Ensures safe hoisting and transportation.
ROLLER LOCKS FOR TRANSPORT: Integrated roller locks prevent movement during transport. This protects both the equipment and surrounding surfaces.
DURABLE PLATE STEEL BODY: Heavy-duty steel construction ensures long-term durability and job site resilience.
BUILT-IN LIFTING HOOK & TIE-DOWN HANDLES: Lifting handles double as secure tie-down points. Makes transport safer and more convenient.

TECHNICAL SPECIFICATIONS

PART NUMBER: BPR1080H-4 (Four Roller) / BPR1080H-5 (Five Roller)
ENGINE: Honda GX160, 5.5 HP
WEIGHT: 243 lb (110 kg) - 4 Roller / 258 lb (117 kg) - 5 Roller
DIMENSIONS: 21.5 in × 26 in × 48 in (54 × 65 × 122 cm)
VIBRATION FREQUENCY: 93 Hz (5600 RPM)
COMPACTION FORCE: 2381 lbf (10.5 kN / 1080 kgf)

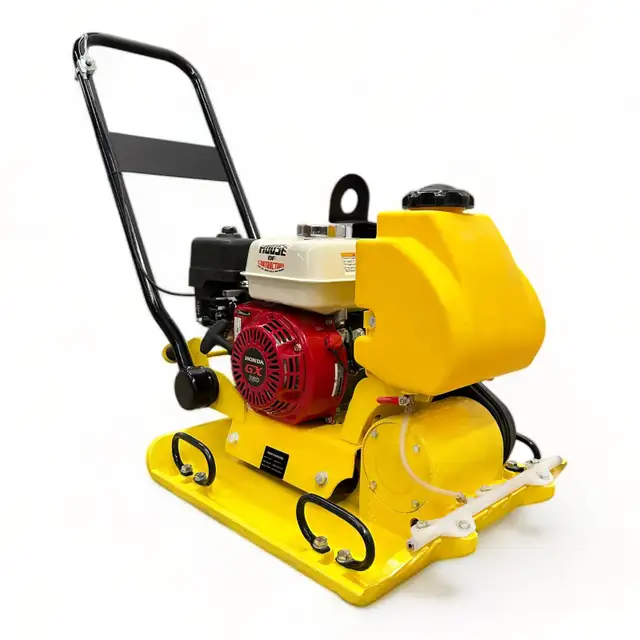

HC60 14 Inch Commercial Honda GX160 Plate Compactor Wheel Kit Water Kit - MSRP $1,589.99 SALE PRICE $1,484.99

The HC60 14 Inch Commercial Plate Compactor is a professional-grade solution built for contractors and landscaping professionals who demand power, portability, and durability. Powered by the reliable Honda GX160 5.5 HP EPA engine, this compact yet powerful machine delivers outstanding compaction performance for soil, gravel, and asphalt applications. Featuring a built-in wheel kit and advanced water tank system, the HC60 combines affordability with commercial-grade North American construction for long-lasting performance.

KEY FEATURES

SUPERIOR COMPACTION POWER: Delivering an impressive 2697.71 lbf (12 kN) of compaction force for a 154 lb (70 kg) unit, the HC60 sets a new benchmark in performance and efficiency. Its high power-to-weight ratio ensures deep, reliable soil consolidation with fewer passes.
HONDA GX160 5.5 HP EPA ENGINE: Equipped with the trusted Honda GX160 engine, this compactor offers exceptional fuel efficiency, easy starting, and long-term reliability. Built for high-stress commercial use, it minimizes downtime and maximizes productivity.
BUILT-IN WHEEL KIT: The included wheel kit allows for quick and effortless transport across job sites. Improve mobility and reduce operator strain when repositioning the unit.
ADVANCED LARGE WATER TANK: The integrated water tank prevents asphalt from sticking during hot applications. It can also be filled to add extra operational weight, enhancing compaction force when needed.
EASY-TO-USE LIFTING HOOK: A centrally positioned lifting hook allows for safe and efficient hoisting with cranes or lifts. This feature improves portability and job site convenience.
COMPACT YET POWERFUL DESIGN: With a 14 inch plate width, the HC60 is ideal for tight spaces without sacrificing compaction strength. Perfect for confined areas, trenches, and smaller project zones.
FAST TRAVEL SPEED: Operating at 25 cm/s (9.8 in/s), the HC60 quickly covers ground, increasing overall job efficiency and reducing project timelines.
UNIFORM HIGH-FREQUENCY COMPACTION: Running at 5600 vibrations per minute (vpm), the compactor ensures deep and even soil consolidation. This consistent vibration promotes stable and durable foundations.
ERGONOMIC USER-FRIENDLY DESIGN: Integrated lifting handles and balanced construction simplify loading and unloading. Reduced vibration and smart design minimize operator fatigue during extended use.
DURABLE NORTH AMERICAN BUILD QUALITY: Featuring custom North American exciter bearings and a heavy-duty cast iron base plate, each unit is manually assembled to meet strict quality standards. Built for longevity in demanding environments.

TECHNICAL SPECIFICATIONS
OPERATING WEIGHT: 70 kg (154 lb)
ENGINE: Honda GX160, 5.5 HP EPA
COMPACTION FORCE: 12 kN (2697.71 lbf)
TRAVEL SPEED: 25 cm/s (9.8 in/s)
VIBRATION FREQUENCY: 5600 vpm
PLATE WIDTH: 14 in (356 mm)

HC90 17 Inch Commercial Honda GX160 Plate Compactor Wheel Kit Water Kit MSRP $1,749.99 SALE PRICE $1,694.99

The HC90 17 Inch Commercial Plate Compactor is engineered for professionals who demand higher compaction force, durability, and efficiency on asphalt and soil projects. Combining premium North American components with the legendary Honda GX160 5.5 HP EPA engine, this model delivers exceptional reliability and performance. Designed with operator comfort in mind, the vibration-reducing handle and built-in mobility features make it ideal for extended use in tight and demanding job site environments.

KEY FEATURES

REVOLUTIONARY COMPACTION FORCE: Delivering 3372.13 lbf (15 kN) of compaction force at approximately 180 lb (82 kg), the HC90 sets new performance standards in its class. Its superior power-to-weight ratio ensures deep, efficient soil consolidation with fewer passes.
HONDA GX160 5.5 HP EPA ENGINE: Powered by the globally trusted Honda GX160 engine, this compactor offers consistent performance, fuel efficiency, and dependable starting. Built for high-demand commercial use, it minimizes downtime and maximizes productivity.
DETACHABLE WHEEL KIT: The removable wheel kit enhances transport convenience and job site mobility. Easily move the unit between work areas without additional equipment.
SUPERIOR LARGE WATER TANK: Designed for asphalt applications, the integrated water tank prevents sticking during hot compaction tasks. Adding water also increases operational weight, improving compaction force when needed.
EASY LIFT HOOK: A centrally located lifting hook allows for secure and efficient hoisting. This makes transportation safe and convenient for commercial crews.
COMPACT YET POWERFUL DESIGN: With a 17 inch (432 mm) plate width, the HC90 delivers strong compaction while remaining maneuverable in confined areas such as parking lots and near structures.
FAST TRAVEL SPEED: Operating at 25 cm/s (9.8 in/s), this compactor quickly covers large areas, increasing overall job efficiency.
HIGH-FREQUENCY VIBRATION: Running at 5600 vibrations per minute (vpm), the HC90 ensures uniform and thorough compaction, creating a stable base for construction or paving.
ERGONOMIC, VIBRATION-REDUCING HANDLE: The guide handle is engineered to reduce vibration transfer to the operator. This minimizes fatigue and improves comfort during long working hours.
DURABLE NORTH AMERICAN EXCITER & CAST IRON BASE: Featuring a North American-engineered exciter system and heavy-duty cast iron base plate, the HC90 is built for long-term durability and sustained performance.

TECHNICAL SPECIFICATIONS

OPERATING WEIGHT: 82 kg (180 lb)
ENGINE: Honda GX160, 5.5 HP EPA
COMPACTION FORCE: 15 kN (3372.13 lbf)
TRAVEL SPEED: 25 cm/s (9.8 in/s)
VIBRATION FREQUENCY: 5600 vpm
PLATE WIDTH: 17 in (432 mm)

HC120 18 Inch Commercial Honda GX160 Plate Compactor Wheel Kit MSRP $2,064.99 SALE PRICE $1,854.99

The HC120 18 Inch Commercial Plate Compactor is engineered for professionals who demand maximum compaction force, durability, and efficiency on demanding job sites. Combining premium North American components, a dual belt drive system, and the legendary Honda GX160 5.5 HP EPA engine, this model delivers exceptional soil and asphalt compaction performance. Designed with an advanced vibration-reducing ergonomic handle and built for confined commercial environments, the HC120 sets a new benchmark for forward plate compactors.

KEY FEATURES

UNMATCHED COMPACTION POWER: Delivering an impressive 4720.1 lbf (21 kN) of compaction force, the HC120 leads its class in performance and efficiency. This high-output force ensures deep, stable consolidation for demanding base and asphalt applications.
HONDA GX160 5.5 HP EPA ENGINE: Powered by the globally trusted Honda GX160 engine, this compactor offers consistent power, easy starting, and long-term reliability. Built for commercial-grade use, it ensures dependable operation day after day.
DUAL BELT DRIVE SYSTEM: The innovative double belt system enhances torque transfer and operational efficiency. This design improves performance while increasing durability under heavy workloads.
SMART DETACHABLE WHEEL KIT: The removable wheel kit allows for effortless transportation and improved job site mobility. Move the unit efficiently without additional equipment.
ADVANCED ERGONOMIC HANDLE: Featuring shock-absorption technology, the vibration-reducing guide handle enhances operator control and comfort. Ideal for long-duration tasks requiring precision and reduced fatigue.
CONVENIENT LIFTING HOOK: The centrally located lifting hook simplifies hoisting and transport. This improves job site efficiency and safe handling.
COMPACT YET POWERFUL DESIGN: With an 18 inch (457 mm) plate width, the HC120 offers strong compaction while remaining maneuverable in confined areas such as parking lots, highways, and bridge approaches.
FAST TRAVEL SPEED: Achieving a travel speed of 30 cm/s (11.8 in/s), the HC120 increases productivity by covering more ground in less time.
HIGH-FREQUENCY PERFORMANCE: Operating at 7000 vibrations per minute (vpm), it ensures uniform and consistent soil consolidation for long-lasting structural stability.
FOUR ERGONOMIC LIFTING HANDLES: Strategically positioned handles simplify loading and unloading while reducing operator strain.
DURABLE NORTH AMERICAN EXCITER & CAST IRON BASE: Built with a North American-made exciter and a heavy-duty cast iron base plate, the HC120 is designed for long-term durability and sustained high performance.

TECHNICAL SPECIFICATIONS

OPERATING WEIGHT: 110 kg (242 lb)
ENGINE: Honda GX160, 5.5 HP EPA
COMPACTION FORCE: 21 kN (4720.1 lbf)
TRAVEL SPEED: 30 cm/s (11.8 in/s)
VIBRATION FREQUENCY: 7000 vpm
PLATE WIDTH: 18 in (457 mm)

C60 14 Inch Commercial GX200 Plate Compactor Wheel Kit Water Kit MSRP $1,269.99 SALE PRICE $1,219.99

The C60 14 Inch Commercial Plate Compactor is a flagship model in the HOC Commercial Plate Series, engineered for construction and landscaping professionals who demand reliability, power, and efficiency. Powered by a robust 6.5 HP GX200 engine and built with high-quality North American components, the C60 delivers exceptional soil and asphalt compaction performance. Compact yet powerful, this unit combines durability, maneuverability, and cost-effectiveness to meet the toughest job site demands.

KEY FEATURES

UNPRECEDENTED COMPACTION FORCE: Delivering 2697.71 lbf (12 kN) of compaction force at just 154 lb (70 kg), the C60 sets new standards for power-to-weight performance. This ensures deep, reliable compaction with fewer passes and greater efficiency.
POWERFUL 6.5 HP GX200 ENGINE: Equipped with a durable 6.5 horsepower GX200 engine, this compactor provides consistent, high-output performance across various soil types. Built for demanding commercial use, it ensures dependable operation day after day.
INTEGRATED WHEEL KIT: The included wheel kit enhances mobility and job site maneuverability. Easily transport the unit without additional equipment, saving time and reducing operator strain.
ENHANCED LARGE WATER TANK: The oversized water tank prevents asphalt from sticking during hot compaction jobs. It can also be filled to add operational weight, increasing compaction force when extra density is required.
ERGONOMIC LIFTING HANDLES: Specially designed lifting handles allow for effortless movement and positioning. This ergonomic feature minimizes fatigue and simplifies loading and unloading.
CONVENIENT LIFTING HOOK: A strategically placed lifting hook makes hoisting simple and secure. This improves job site efficiency and portability.
COMPACT YET POWERFUL DESIGN: With a 14 inch (356 mm) plate width, the C60 provides strong compaction while maintaining easy access in tight or confined spaces.
FAST AND AGILE PERFORMANCE: Operating at 25 cm/s (9.8 in/s), the unit covers ground quickly, enhancing overall productivity on diverse terrain.
CONSISTENT HIGH-FREQUENCY OPERATION: Running at 5600 vibrations per minute (vpm), the C60 ensures even and deep soil compaction for long-lasting stability.
HEAVY-DUTY NORTH AMERICAN CONSTRUCTION: Built with specially designed North American exciter bearings and a robust cast iron base plate, each unit is assembled by hand to meet strict durability standards.

TECHNICAL SPECIFICATIONS

OPERATING WEIGHT: 70 kg (154 lb)
ENGINE: GX200, 6.5 HP
COMPACTION FORCE: 12 kN (2697.71 lbf)
TRAVEL SPEED: 25 cm/s (9.8 in/s)
VIBRATION FREQUENCY: 5600 vpm
PLATE WIDTH: 14 in (356 mm)

C120 18 Inch Commercial GX200 Plate Compactor Wheel Kit MSRP $1,749.99 SALE PRICE $1,589.99

The C120 18 Inch Commercial Plate Compactor is engineered for professionals who demand maximum compaction force, durability, and efficiency. Built with premium North American components and powered by a robust 6.5 HP GX200 engine, this model delivers exceptional soil and asphalt compaction performance. Designed for commercial environments such as parking lots, highways, bridges, and tight structural areas, the C120 sets a new benchmark in forward compactor power and reliability.

KEY FEATURES

REVOLUTIONARY COMPACTION CAPABILITY: Delivering an impressive 4720.1 lbf (21 kN) of compaction force at 242 lb (110 kg), the C120 redefines performance standards. Its superior power-to-weight ratio ensures deep consolidation with fewer passes and greater efficiency.
POWERFUL 6.5 HP GX200 ENGINE: Equipped with a reliable 6.5 horsepower GX200 engine, the C120 provides consistent torque and dependable performance across various soil types. Designed for demanding commercial applications, it minimizes downtime and maximizes output.
DUAL BELT DRIVE SYSTEM: The advanced double belt system increases torque transfer and enhances operational speed. This design boosts compaction efficiency while improving long-term durability.
DETACHABLE WHEEL KIT: Included for improved job site mobility, the removable wheel kit allows effortless transport between work areas.
SHOCK-ABSORBENT ERGONOMIC HANDLE: Featuring vibration-dampening technology, the advanced guide handle improves control and reduces operator fatigue. Ideal for precision work in confined spaces and long-duration tasks.
CONVENIENT LIFTING HOOK: The strategically placed lifting hook ensures secure and easy hoisting, enhancing portability and job site flexibility.
FOUR ERGONOMIC LIFTING HANDLES: Strategically positioned handles simplify loading and unloading, reducing strain and improving overall usability.
COMPACT YET HIGHLY EFFICIENT DESIGN: With an 18 inch (457 mm) plate width, the C120 delivers powerful compaction while maintaining maneuverability in tight areas near curbs, abutments, and structures.
FAST TRAVEL SPEED: Operating at 30 cm/s (11.8 in/s), this compactor accelerates project completion by covering more ground efficiently.
HIGH-FREQUENCY PERFORMANCE: Running at 7000 vibrations per minute (vpm), it ensures consistent, uniform compaction essential for long-lasting foundations.
LONG-LASTING NORTH AMERICAN CONSTRUCTION: Built with a specially designed North American exciter and a heavy-duty cast iron base plate, and hand-assembled to strict quality standards, the C120 is engineered for longevity.

TECHNICAL SPECIFICATIONS

OPERATING WEIGHT: 110 kg (242 lb)
ENGINE: GX200, 6.5 HP
COMPACTION FORCE: 21 kN (4720.1 lbf)
TRAVEL SPEED: 30 cm/s (11.8 in/s)
VIBRATION FREQUENCY: 7000 vpm
PLATE WIDTH: 18 in (457 mm)

HZR70 PRO 14 Inch Honda GX160 Plate Compactor Wheel Kit Water Kit MSRP $1,979.99 SALE PRICE $1,799.99

The HZR70 PRO 14 Inch Honda GX160 Plate Compactor is engineered for high-performance compaction of light mixed soils, gravel, asphalt, and interlocking paving stones. Designed for professionals working in confined areas near walls, curbs, and foundations, this vibratory plate delivers precision, durability, and efficiency. Featuring a Honda GX160 engine, shock-absorbing handles, a heavy-duty nodular cast iron base plate, and a built-in wheel and water kit, the HZR70 PRO is built for demanding job sites.

KEY FEATURES

VERSATILE COMPACTION PERFORMANCE: Designed for multiple applications including soil, gravel, asphalt, and pavers, this unit offers high travel speeds and excellent maneuverability. It is ideal for confined spaces and precision compaction near structures.
HONDA GX160 5.5 HP ENGINE: Powered by the trusted Honda GX160 engine, delivering 5.5 horsepower of reliable, fuel-efficient performance. Built for durability and consistent output under heavy-duty use.
SUPERIOR COMPACTION FORCE: Produces 14 kN (3147.33 lbf) of compaction force, ensuring deep, stable consolidation. With a compaction depth of up to 35 cm (13.8 in), it provides a strong and lasting base.
PATENTED VIBRATION-DAMPENING HANDLE: The guide handle features an advanced shock absorption system to significantly reduce operator fatigue. This allows for longer working hours with improved comfort and control.
HIGH-GRADE NODULAR CAST IRON BASE PLATE: The self-cleaning base plate ensures smooth asphalt finishes while resisting wear under harsh conditions. Its durable construction extends the service life of the unit.
LARGE CAPACITY WATER TANK: The 7.6 L (2.0 gal) water tank prevents asphalt from sticking and improves compaction efficiency. The wide filler opening allows for quick and convenient refilling.
DUAL LIFTING HANDLES & HOIST HOOK: Ergonomically positioned lifting handles and a central hoist hook simplify loading, unloading, and transport on job sites.
INCLUDED WHEEL KIT: The additional wheel kit enhances mobility, making transportation across uneven terrain quick and effortless.
EASY MAINTENANCE DESIGN: Special ball bearings and patented exciter access simplify maintenance procedures. Easily check oil levels and maintain optimal machine performance.
FAST TRAVEL SPEED: Operating at 30 cm/s (11.8 in/s), the HZR70 PRO covers more ground efficiently, increasing overall productivity.
CONSISTENT HIGH FREQUENCY: Running at 5820 vibrations per minute (vpm), it delivers uniform compaction across the entire surface area.

TECHNICAL SPECIFICATIONS

MODEL: HZR70 PRO
ENGINE TYPE: Honda GX160
POWER: 5.5 HP
OPERATING WEIGHT: 70 kg (154 lb)
COMPACTION FORCE: 14 kN (3147.33 lbf)
COMPACTION DEPTH: 35 cm (13.8 in)
TRAVEL SPEED: 30 cm/s (11.8 in/s)
FREQUENCY: 5820 vpm
WATER TANK CAPACITY: 7.6 L (2.0 gal)
ENGINE OIL CAPACITY: 600 ml
FUEL TYPE: Unleaded gasoline (octane rating 90 )
FUEL TANK CAPACITY: 3.6 L
FUEL CONSUMPTION: 230 g/PS·h
DIMENSIONS (W × L × H): 14 × 21 × 36 in (356 × 533 × 914 mm)

HZR80 PRO 16 Inch Honda GX160 Plate Compactor Wheel Kit Water Kit MSRP $2,099.99 SALE PRICE $1,999.99

The HZR80 PRO 16 Inch Honda GX160 Plate Compactor is built for precision compaction across a wide range of demanding construction environments. Ideal for curbs, gutters, footings, guard rails, drainage ditches, sewer works, and asphalt applications, this vibratory plate delivers powerful, consistent results. Designed for confined spaces and powered by a reliable Honda GX160 engine, the HZR80 PRO combines durability, maneuverability, and operator comfort for professional-grade performance.

KEY FEATURES

HIGH-PERFORMANCE COMPACTION FORCE: Delivering 17 kN (3821.75 lbf) of compaction force, the HZR80 PRO provides deep, stable consolidation for soil, gravel, and asphalt applications. Its powerful output ensures fewer passes and improved job efficiency.
HONDA GX160 5.5 HP ENGINE: Equipped with the trusted Honda GX160 engine, producing 5.5 horsepower for consistent and fuel-efficient operation. Designed for commercial reliability and long-term durability.
ADAPTIVE COMPACTION CAPABILITIES: High travel speeds and smooth maneuverability allow the unit to adapt to a wide range of compaction tasks. Ideal for both hot and cold asphalt as well as granular soils.
PATENTED VIBRATION-REDUCING HANDLE: The guide handle features a shock-absorption system that significantly reduces vibration transfer. This enhances operator comfort and allows longer work periods with reduced fatigue.
NODULAR CAST IRON SELF-CLEANING BASE PLATE: Constructed from high-grade nodular cast iron, the base plate ensures smooth asphalt finishes and superior wear resistance. Designed for long service life in harsh conditions.
LARGE 7.6 L (2.0 GAL) WATER TANK: Prevents asphalt from sticking during compaction and improves operational efficiency. The wide filler opening enables quick and convenient refilling on site.
FAST TRAVEL SPEED: Operating at 30 cm/s (11.8 in/s), this compactor increases productivity by covering more surface area in less time.
HIGH-FREQUENCY OPERATION: Running at 5820 vibrations per minute (vpm), it delivers uniform and consistent compaction across the entire plate surface.
LOW-MAINTENANCE DESIGN: Specially designed ball bearings and easy exciter access simplify oil checks and servicing. This enhances machine uptime and reduces maintenance downtime.
EASY TRANSPORT FEATURES: Equipped with a central hoist hook and three ergonomically positioned lifting handles for safe loading and unloading. The included wheel kit further improves mobility across job sites.
EXCELLENT PRODUCTIVITY & CLIMBING ABILITY: Capable of compacting up to 490 m²/h (5274 ft²/h) with a climbing angle of up to 30 degrees, making it suitable for varied terrain and environmental conditions.

TECHNICAL SPECIFICATIONS

MODEL: HZR80 PRO
ENGINE TYPE: Honda GX160
POWER: 5.5 HP
OPERATING WEIGHT: 86 kg (189.2 lb)
COMPACTION FORCE: 17 kN (3821.75 lbf)
TRAVEL SPEED: 30 cm/s (11.8 in/s)
FREQUENCY: 5820 vpm
WATER TANK CAPACITY: 7.6 L (2.0 gal)
ENGINE OIL CAPACITY: 600 ml
FUEL TYPE: Unleaded gasoline (octane rating 90 )
FUEL TANK CAPACITY: 3.6 L
FUEL CONSUMPTION: 230 g/PS·h
MAX COMPACTED AREA: 490 m²/h (5274 ft²/h)
MAX CLIMBING ANGLE: 30°
DIMENSIONS (W × L × H): 16 × 23 × 36 in (406 × 584 × 914 mm)

HZR90 PRO 20 Inch Honda GX160 Plate Compactor Wheel Kit Water Kit MSRP $2,639.99 SALE PRICE $2,399.99

The HZR90 PRO 20 Inch Honda GX160 Plate Compactor is engineered for maximum compaction performance in demanding construction environments. Designed to handle curbs, gutters, columns, footings, guard rails, drainage ditches, sewer works, and asphalt applications, this model delivers exceptional power and maneuverability. Built for professionals working in tight or high-demand areas, the HZR90 PRO combines durability, comfort, and high-output performance for reliable results on every job.

KEY FEATURES

POWERFUL 22 kN COMPACTION FORCE: Delivering 22 kN (4945.79 lbf) of compaction force, the HZR90 PRO ensures deep and stable soil consolidation. Its high output makes it ideal for heavy-duty base preparation and asphalt applications.
HONDA GX160 5.5 HP ENGINE: Powered by the trusted Honda GX160 engine, producing 5.5 horsepower for consistent and fuel-efficient operation. Built for long-term reliability in commercial environments.
HIGH TRAVEL SPEED PERFORMANCE: Operating at 35 cm/s (13.8 in/s), this model covers more surface area quickly, significantly improving job site productivity.
PATENTED VIBRATION-DAMPENING HANDLE: The guide handle features advanced shock absorption technology to reduce vibration transfer. This enhances operator comfort and reduces fatigue during extended use.
NODULAR CAST IRON SELF-CLEANING BASE PLATE: Constructed from high-quality nodular cast iron, the base plate ensures smooth asphalt finishes while resisting wear under tough conditions. Designed for long service life and consistent performance.
LARGE 7.6 L (2.0 GAL) WATER TANK: Prevents asphalt from sticking and improves surface finish quality. The wide filler opening allows quick and convenient refilling on-site.
LOW-MAINTENANCE DESIGN: Special ball bearings and an exclusive exciter access system simplify oil level checks and servicing. This reduces downtime and keeps the unit running efficiently.
FOUR ERGONOMIC LIFTING HANDLES: Strategically placed lifting handles make loading and unloading easier while reducing operator strain.
INTEGRATED HOIST HOOK: A centrally located hoist hook provides secure and convenient lifting for transport or repositioning.
INCLUDED WHEEL KIT: Enhances mobility and makes transporting the 99 kg (217.8 lb) unit quick and efficient across job sites.
HIGH PRODUCTIVITY OUTPUT: Capable of compacting up to 630 m²/h (6781 ft²/h) with a climbing angle of up to 30 degrees, allowing reliable performance across varied terrain conditions.
CONSISTENT HIGH-FREQUENCY OPERATION: Running at 5820 vibrations per minute (vpm), ensuring uniform compaction across the entire 20 inch (508 mm) plate width.

TECHNICAL SPECIFICATIONS

MODEL: HZR90 PRO
ENGINE: Honda GX160
POWER: 5.5 HP
OPERATING WEIGHT: 99 kg (217.8 lb)
COMPACTION FORCE: 22 kN (4945.79 lbf)
TRAVEL SPEED: 35 cm/s (13.8 in/s)
FREQUENCY: 5820 vpm
WATER TANK CAPACITY: 7.6 L (2.0 gal)
ENGINE OIL CAPACITY: 600 ml
FUEL TYPE: Unleaded gasoline (90 octane)
FUEL TANK CAPACITY: 3.6 L
FUEL CONSUMPTION: 230 g/PS·h
MAX COMPACTED AREA: 630 m²/h (6781 ft²/h)
MAX CLIMBING ANGLE: 30°
DIMENSIONS (W × L × H): 20 × 23 × 36 in (508 × 584 × 914 mm)

HZR120 PRO 21 Inch Honda GX160 Plate Compactor Wheel Kit Water Kit MSRP $2,969.99 SALE PRICE $2,699.99

The HZR120 PRO 21 Inch Honda GX160 Plate Compactor is built for high-performance compaction in demanding construction and landscaping applications. Designed to handle curbs, gutters, building foundations, drainage systems, and both hot and cold asphalt, this heavy-duty vibratory plate delivers exceptional force and reliability. With a powerful Honda GX160 engine, large-capacity water tank, and enhanced mobility features, the HZR120 PRO is engineered for precision, durability, and productivity in confined or challenging job site conditions.

KEY FEATURES

EXCEPTIONAL 23 kN COMPACTION FORCE: Producing 23 kN (5170.61 lbf) of compaction force, the HZR120 PRO delivers deep and stable soil consolidation. Its high-output performance ensures fewer passes and superior base preparation for demanding applications.
HONDA GX160 5.5 HP ENGINE: Powered by the trusted Honda GX160 engine, offering 5.5 horsepower of consistent and fuel-efficient performance. Designed for durability and dependable operation under heavy workloads.
HIGH-GRADE NODULAR CAST IRON BASE PLATE: The self-cleaning base plate ensures smooth asphalt finishes while resisting wear in harsh environments. Built for long-term durability and reliable compaction performance.
PATENTED VIBRATION-DAMPENING HANDLE: Advanced shock absorption technology significantly reduces vibration transfer to the operator. This enhances comfort, minimizes fatigue, and supports extended working hours.
LARGE 15 L (3.96 GAL) WATER TANK: The expanded water tank prevents asphalt adhesion and reduces the need for frequent refilling. A wide filler opening allows quick and convenient on-site access.
FAST 35 CM/S (13.8 IN/S) TRAVEL SPEED: Covers more surface area quickly, increasing productivity and reducing overall project time.
CONSISTENT 5820 VPM FREQUENCY: Ensures uniform and even compaction across the full 21 inch (533 mm) plate width for stable and long-lasting results.
MAINTENANCE-SMART DESIGN: Special ball bearings and a patented exciter access system simplify oil checks and routine maintenance. This reduces downtime and keeps the machine operating efficiently.
DIRECT POWER TRANSMISSION SYSTEM: Power is transferred from the engine directly to the exciter via a centrifugal clutch and V-belt, ensuring efficient torque delivery and reliable performance.
ERGONOMIC LIFTING HANDLES & HOIST HOOK: Strategically positioned lifting handles and an integrated hoist hook simplify loading, unloading, and repositioning on job sites.
INCLUDED WHEEL KIT: Enhances mobility and makes transporting the 120 kg (242 lb) unit easier across varied terrain.
HIGH PRODUCTIVITY CAPACITY: Capable of compacting up to 630 m²/h (6781 ft²/h) with a maximum climbing angle of 30 degrees, depending on soil and environmental conditions.

TECHNICAL SPECIFICATIONS

MODEL: HZR120 PRO
ENGINE TYPE: Honda GX160
POWER: 5.5 HP
OPERATING WEIGHT: 120 kg (242 lb)
COMPACTION FORCE: 23 kN (5170.61 lbf)
TRAVEL SPEED: 35 cm/s (13.8 in/s)
FREQUENCY: 5820 vpm
WATER TANK CAPACITY: 15 L (3.96 gal)
ENGINE OIL CAPACITY: 600 ml
FUEL TYPE: Unleaded gasoline (90 octane)
FUEL TANK CAPACITY: 3.6 L
FUEL CONSUMPTION: 230 g/PS·h
MAX COMPACTED AREA: 630 m²/h (6781 ft²/h)
MAX CLIMBING ANGLE: 30°
POWER TRANSMISSION: Centrifugal clutch with V-belt drive
DIMENSIONS (W × L × H): 21 × 25 × 36 in (533 × 635 × 914 mm)

FINANCING & LEASING OPTIONS AVAILABLE - FREE SHIPPING NATION WIDE ENJOY OUR LOWEST PRICE POLICY CASH BACK REWARDS MULTI YEAR WARRANTIES!
HIGHEST RATED INDUSTRIAL EQUIPMENT SUPPLIER ON GOOGLE, BING AND YAHOO!
BUY FROM A BUSINESS YOU CAN TRUST!  AWARDED CANADIAN SMALL BUSINESS!


HOUSE OF CONTRACTORS INC.
1(844)440-4014
WWW.HOUSEOFCONTRACTORS.COM
When you call please mention you found this ad listing on OKz.ca
