Jones & Shipman (England) Model - 1300
Center Height - 127 mm 5”
Max. Job Diameter - 254 mm 10”
Max. Length of Job - 686 mm 27”
Grinding Wheel Size - Diameter 305 mm x 25.4 mm Width…..Dia 12” x width 1”
Power 5.5 hp
Workhead Power 4 hp
Work-Head Speeds - 40 rpm to 320 rpm
Max Weight Between Centers
Table Rotation - 20 Degree to -18 Degree
- With Internal Grinding Attachment.
- With Wheel Dresser, 2 x Steady, other accessories etc.
- With Coolant Tank & Coolant Pump.
In excellent running condition and can be seen under power

--------------------------------------------------------------------------------

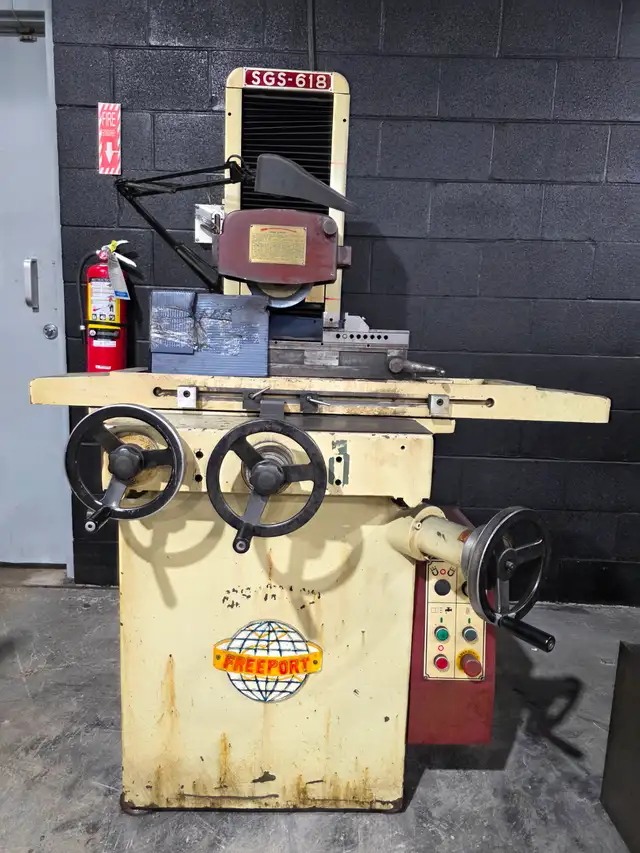

1997 Freeport SGS-618M 6" x 18" Manual Precision Surface Grinders
SGS-618
Max. grinding surface WxL 152 x 455mm
6” x 18”
Working Surface of table. WxL 150 x 465mm 5.9" x 18.3"
Max. Horizontal travel of table. 480mm 18.9"
Table surface to spindle center 175mm 6.9"
Max. Cross travel of table. 400mm 15.7"
Vertical handwheel (1 gra) 0.005mm 0.0002"
Vertical handwheel (1 rev) 1mm 0.05"
Cross feed handwheel (1 gra) 0.02mm 0.001"
Cross feed handwheel (1 rev) 5mm 0.1"
Spindle motor 1.5 Hp
Grinding wheel OD x T x ID 180 x 13 x 31.75mm
77" x 0.5" x 1.25"
Spindle speed, standard 3,450 RPM
Spindle speed, variable 2,000 to 4,000 RPM
Coolant motor 1/8 Hp
Dust collector motor 1/2 Hp
Net Weight 680kgs 1496lbs
Gross weight 780 kgs 1,716 lbs
