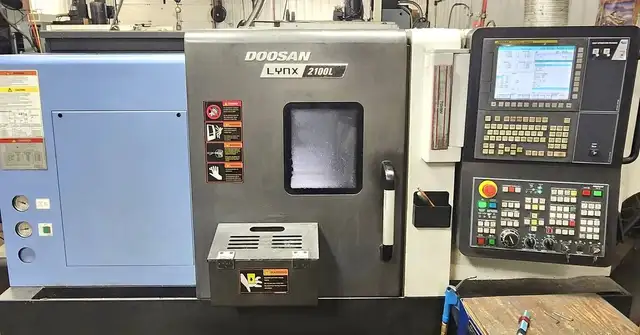

2017 DOOSAN LYNX 2100LB
SPECIFICATIONS:
MAX CUTTING DIAMETER 13.78"
MAX CUTTING LENGTH 22"
X-AXIS TRAVEL 8.1"
Z-AXIS TRAVEL 22"
CHUCK SIZE 8"
BAR CAPACITY 2.6"
SPINDLE MOTOR 20 hp
SPINDLE SPEED 4,500 RPM
RAPID TRAVERSE RATE X-AXIS 1,181 in/min.
RAPID TRAVERSE RATE Z-AXIS 1,181 in/min.

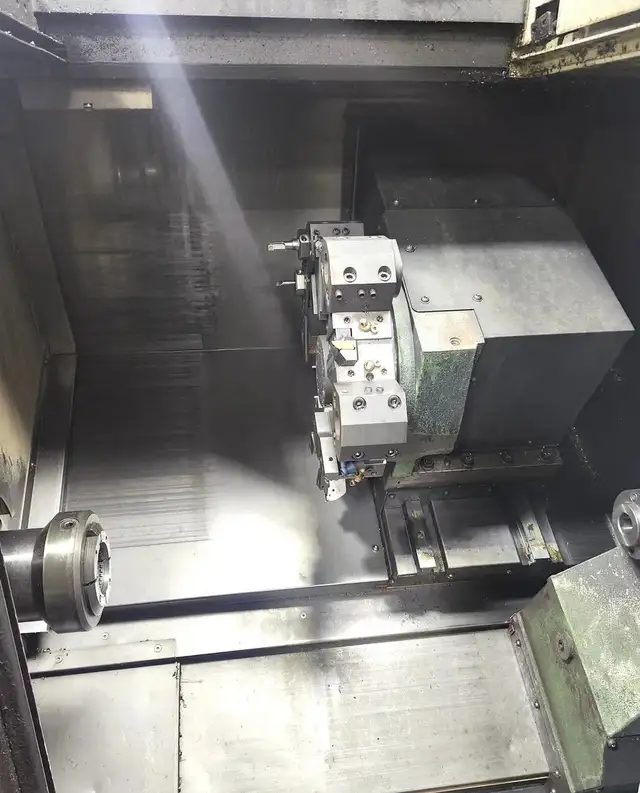

TURRET POSITIONS 12
DIMENSIONS 102" x 63" x 66"
WEIGHT 7500 lbs
EQUIPPED WITH:

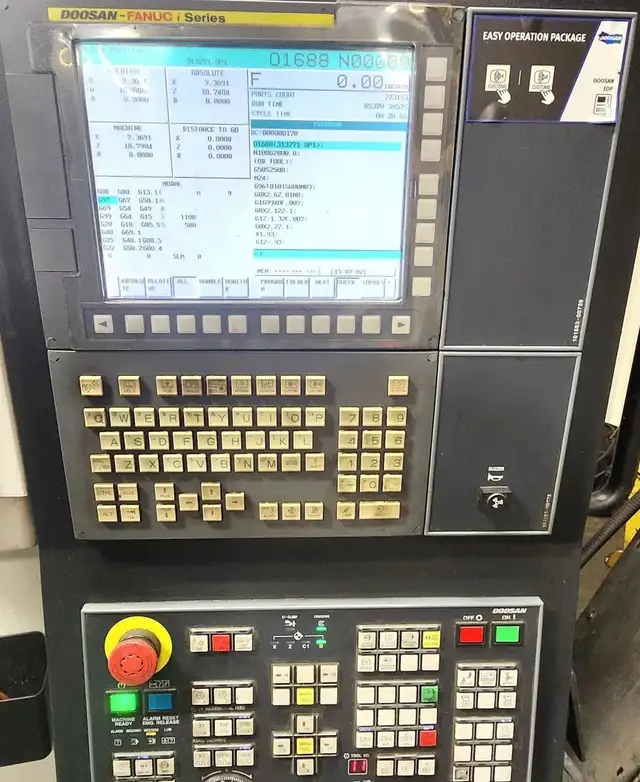

DOOSAN FANUC i SERIES CNC CONTROL

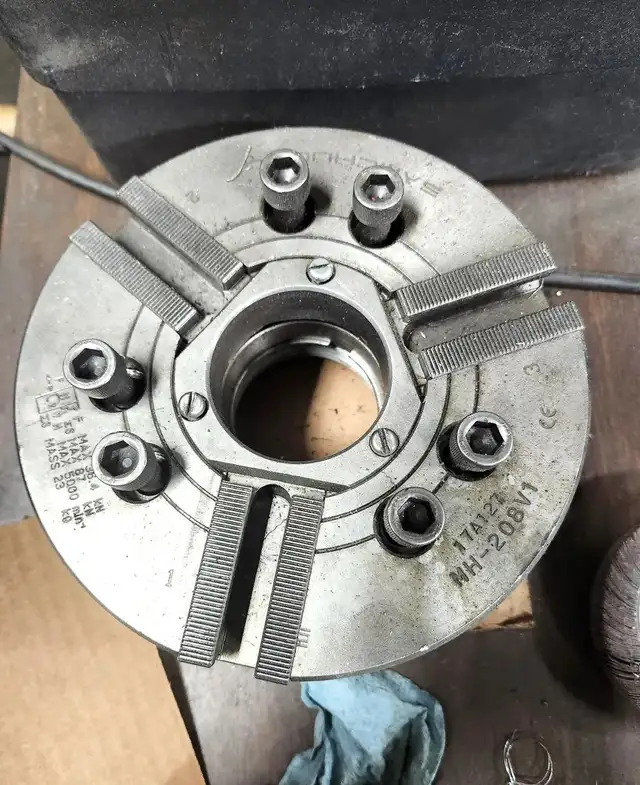

8”, 3-JAW SAMCHULLY (MH-208V1) HYDRAULIC CHUCK
COLLET CHUCK SYSTEM
CHIP CONVEYOR
TOOL PRESETTER
TAILSTOCK
PARTS CATCHER

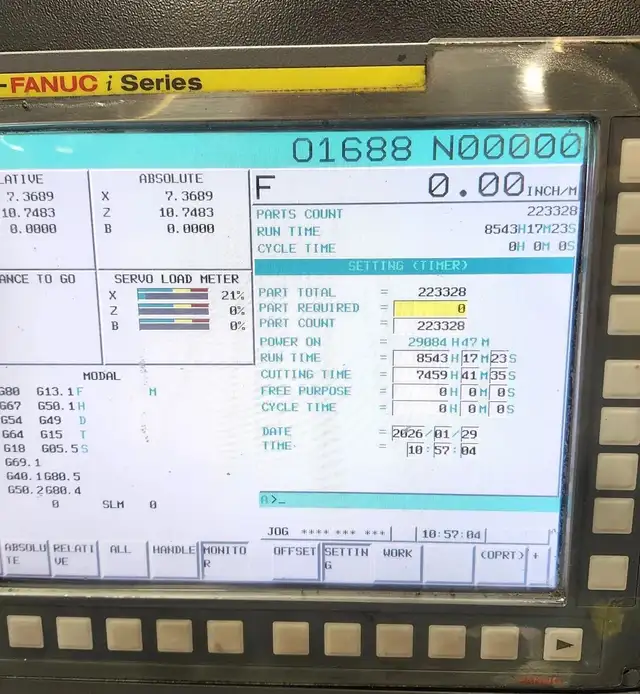

** AS OF MARCH 2026, CUTTING TIME: 7,459 HOURS
** MACHINE CUTTING PRIMARILY STAINLESS STEEL & ALUMINUM
