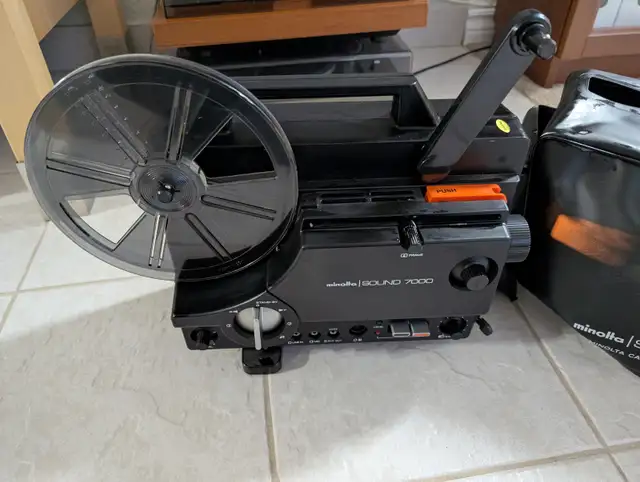

Minolta Sound 7000 (Super 8 film – with sound) (used), film projector
The following things are included:– a copy of the manual (English, German, French, Italian)
Technical information:
Minolta Sound 7000
marketed in 1978
super 8 mm film
lens: Minolta P. Zoom Rokkor f: 1.3 F: 15-25 mm
lamp: 100 W, 12 V, EFP
reel capacity: 180 m
film loading: automatic threading
projection: forward, reverse
projection speed: 18, 24 fps
sound: magnetic playback on main sound track
sound mode: mono
amplifier: 2 IC”s, 7 Transistors, 5 Diodes
amplifier output: 4 W
recording: magnetic recording on main track, sound-on-sound, sound fading
recording level control: ALC (automatic level control) and manual
VU meter: recording level meter
input terminal: Microphone, Line-In, Phono
input jacks: Microphone, Line-In: mini jack; Phono: DIN 5-pin plug (Eurepean type)
output terminal: Monitor/Line-out, External Speaker
output jacks: Monitor: mini jack; External Speaker: DIN 2-pin plug or mini jack
built-in speaker: 2 W
motor: DC magnetic motor
power source: 100-110-117-125-160-200-220-240 V AC, 50/60 Hz, 170 W
weight: 6,300 g
dimensions: 180 x 285 x 335 mm
