Item number: 056481

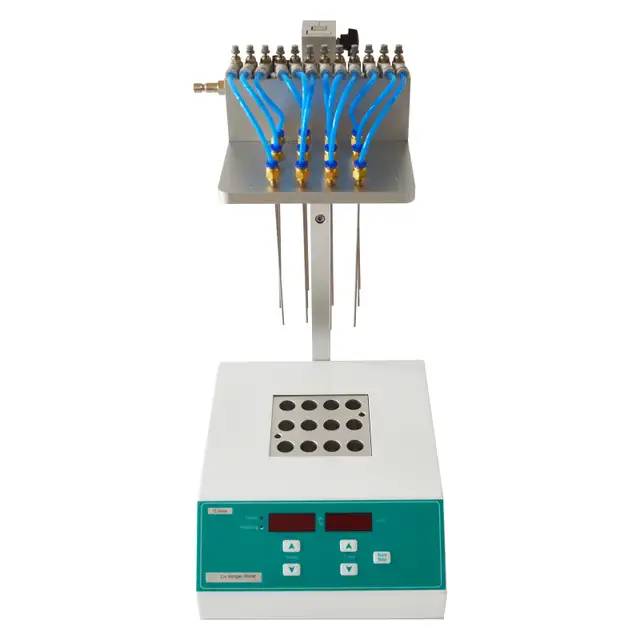

Sample Concentrator Dry-Type Nitrogen Evaporator 12-Gas-Needles Pressure Blowing Concentrator 056481

-

Nitrogen concentrator is mainly used for enrichment of large-volume sample or preparation. Working principle: the nitrogen into the heated surface of the sample and make the solvent t evaporate and separated rapidly, thereby reaching the sample enrichment purpose without oxygen, keep the sample purer. Nitrogen concentrator instrument can concentrated dozens of samples simultaneously, saving time and high efficient, instead of rotary evaporation instrument.



Parameters:

Voltage: AC110V 50/60Hz

Heating Power: 200W

The Number of Holes: 12

The Diameter of Each Hole: 0.63"(16mm)

Gas Needle Length: 5.9"(15cm)

Temperature Range: Room Temperature 5-150 Degrees Centigrade

Timing Time: A maximum of 99 hours 59 minutes

Control Accuracy: ≤±0.5 Degrees Centigrade

Display Precision: ±0.1 Degrees Centigrade

Maximum Gas Pressure: 0.02Mpa

Package Size: 16.9"*16.5"*10.6"(43cm*42cm*27cm)

Net Weight: 12.1LB(5.5kg)



Features:

1.Temperature range: room temperature 5-150 Degrees Centigrade Timing time: A maximum of 99 hours 59 minutes Display precision: ±0.1 Degrees Centigrade The number of holes: 12 The diameter of each hole: 16mm (0.63")

2.Nitrogen concentrator is mainly used for enrichment of large-volume sample or preparation.

3.Working principle: the nitrogen into the heated surface of the sample and make the solvent t evaporate and separated rapidly, thereby reaching the sample enrichment purpose without oxygen, keep the sample purer. Nitrogen concentrator instrument can concentrated dozens of samples simultaneously, saving time and high efficient, instead of rotary evaporation instrument.

4.The heater allows samples to be heated rapidly to the evaporation temperature, through the gas blow to the solution surface via needle at the same time, prompting rapid evaporation and concentration solution.

5.Gas needle position in the gas chamber can be changed, suitable for various kinds of tubes. Built in over-temperature protection device, automatic fault detection and alarm function.



Item Included(056481)

Termovap Sample Concentrator *1

The Power Cord *1

Nitrogen Connection Pipe *1

Fuse *3
