Item number: 057113

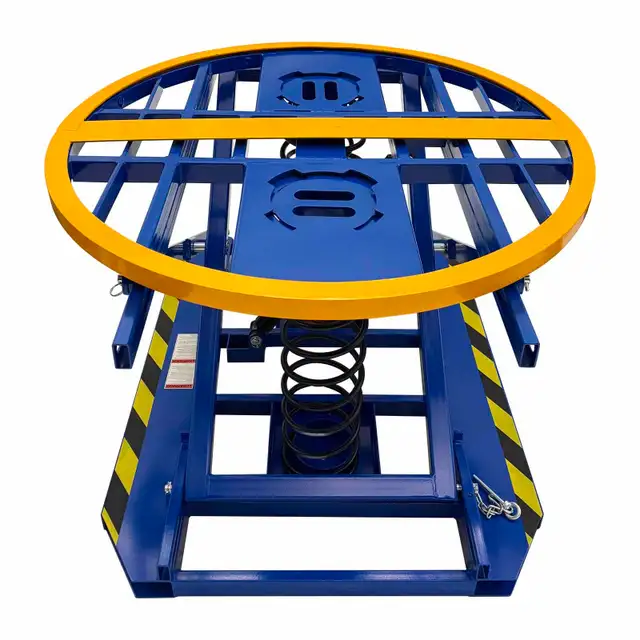

Mobile 360° Rotating Spring Automatic Lifting Platform Spring-Actuated Pallet Carousel Skid Positioner 4400lbs 057113

-

Product Overview

The Pallet & Spring Level Loader is a simple device which will automatically maintain a load at the ideal height for manual loading and unloading. If a palletized load is placed on the product, it gradually rises as boxes or parts are removed. This automatically maintains the top of the load at the correct working height. The Pallet & Spring Level Loader may also be used in another way. An empty pallet may be placed on it. It gradually lowers as boxes or parts are added. Again, this keeps the top of the load at the correct height. Complete pallets may be loaded or unloaded using a fork lift.

Each Pallet & Spring Level Loader includes a steel scissor lift and three compression springs. The springs are chosen to match the weight and height of a fully loaded pallet. Springs are available for a wide range of weight and height combinations. The Pallet & Spring Level Loader also includes a shock absorber. This eliminates any tendency for the load to bounce on the springs.



Product Parameters

Capacity: 441lbs-4410lbs (200-2,000kg)

Platform Diameter: 43.7" (1,110mm)

Compressed Height: 10.6" (270mm)

Extended Height: 27.9" (710mm)

Number of springs: 3

Package size: 56.9"*49.2"*16.9" (144.5cm*125cm*43cm)

Net weight/Gross weight: 358.2lbs(162.5kg) / 468.5lbs(212.5kg)



Product Features & Advantages

Rotating Platform

The 360°rotating platform enables omnidirectional horizontal rotation of materials to coordinate with the lifting function,facilitating loading/unloading operations. It synchronizes with the spring lifting mechanism below to maintain horizontal stability during rotation.

Safety Pin

This safety pin must be inserted when replacing or repairing the spring assembly to prevent accident platform descent. It must be inserted before spring disassembly and removed after spring installation(to restore lifting function)

Spring

This heavy-duty spring features auto-leveling capability,dynamically adjusting platform height (270-710mm)based on pallet load weight.Its detachable design supports customizable load configurations and integrates with forklift slots for workstation mobility.

Hydraulic Buffer System

The buffer functions as a damping system to ensure progressive lifting/lowering motion,effectively preventing sudden platform drops and rebound oscillations.

Bearing Roller

The bearing roller rotation platform enables smooth 360°omnidirectional rotation with low rolling friction.allowing smooth pallet rotation and multi-directional operational flexibility.

Forklift-Compatible Base Design

The base is designed with forklift pockets to facilitate overall mobility,handling,and loading/unloading,ensuring seamless compatibility with forklift operations for effortless use.



Omnidirectional Rotation - Features 360° swivel design with turntable structure for horizontal multi-angle positioning.

Spring-Lift Synchronization - Utilizes spring damping to auto-adjust platform height based on load weight, reducing worker fatigue during cargo handling with effortless operation.

Modular Safety - Equipped with tool-free quick release safety pins to prevent accidental rebound.

Adaptive Stability - Rotating platform dynamically synchronizes with lifting mechanism to maintain level balance under load movement.

Wide Applicability - Ideal for diverse venues including construction sites, workshops, warehouses, and retail stores (e.g. supermarkets), meeting all fixed-lift platform requirements









Item Included: 057113

Spring-Actuated Pallet Carousel Skid Positioner *1

Spring *3
