Item number: 220582

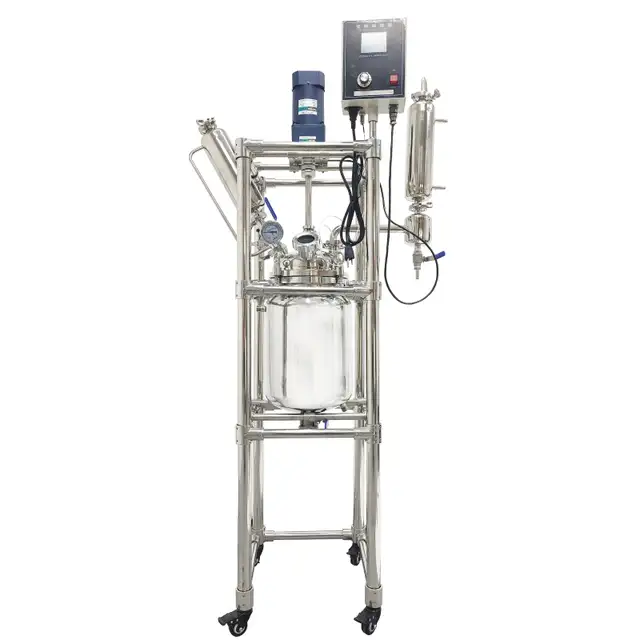

The stainless steel reaction kettle is a testing instrument, has the characteristics of rapid heating, high temperature resistance, corrosion resistance, hygiene, environmental protection and so on, and can be used for vacuum distillation experiments, purification experiments, extraction experiments, etc. The reaction kettle can be used in conjunction with a high and low temperature all-in-one machine and other equipment.



Parameters:

Power Supply: 110V 60Hz

Power: 250W

Spindle Speed: 0-600 rpm

Heating Mode: interlayer circulating oil heating

Condensation Area of Stainless Steel Condenser: 0.2㎡

Stainless Steel Constant Pressure Hopper: 1.5L

Covering and Sealing Type: fluorine rubber cushion sealing, spiral pressing type

Dimensions after installation:66*47*162cm

Interior of Kettle Body:

Capacity of Kettle Body: 10L

Working Pressure: -0.1mpa-0.3mpa

Working Temperature: -80℃-200℃

Material: 304 stainless steel

Material Thickness: 4mm

Interior of Interlayer:

Interlayer Capacity: 6L

Working Pressure: 0.3mpa

Working Temperature: -80℃-200℃

Working Medium: heat conduction oil, refrigerant, etc. (The customer needs to prepare the working medium by himself.)

Material: 316 stainless steel

Spindle Sealing Type: mechanical sealing

Stirring Type: three-blade propulsion type stirring paddle

Material Thickness: 4mm



Features:

1. The parts making contact with the material are all made of 316 stainless steel which has good corrosion resistance and high temperature resistance. This material can cope with the highly-corrosive and high-temperature environment that may be encountered during chemical reactions, ensure the smooth progress of the reactions and prolong the service life of the equipment.

2.Due to the double-layer design, constant-temperature cold and heat sources (such as refrigerant or hot oil) can be poured into the reaction kettle through the interlayer, and constant-temperature heating or cooling of the materials inside the kettle can be achieved. This design can conduct concentration, distillation, reflux, separation, purification and other operation under the conditions of constant speed, constant force and constant temperature and is suitable for teaching, experimentation, pilot plant testing and production.

3.Stainless steel stirring rods are suitable for mixing various solvents. The deceleration and power boosting motor is smooth in stirring operation, high in torque, free of sparks and long in service life. The speed regulator achieves dual digital display of speed and temperature, and operation is intuitive and convenient.

4.A fluorine rubber pad assembly and mechanical sealing are adopted to ensure a good vacuum degree and long service life. This design can maintain a good sealing state to prevent medium leakage and environmental pollution under the high pressure and high temperature or vacuum conditions.

5.The overall structure is compact and reasonable. The machine is equipped with universal wheels so as to facilitate overall movement and operation. The stainless steel discharging valve design effectively reduces the number of mixing dead corners and is convenient to discharge. A stainless steel ball valve is used in a lower discharging outlet, there are no obstructions or dead corners inside the container, and the parts are detachable, so that solid materials are conveniently discharged.

6.The machine is equipped with an observation window and a flashlight, the flashlight can be fixed to the observation window, and therefore the situation of the interior of the kettle can be conveniently observed at any time.



Notice:

The battery of the flashlight needs to be prepared by customers, and the battery model is 1200mAh/3.7V/9.6Wh.
