Item number: 022204

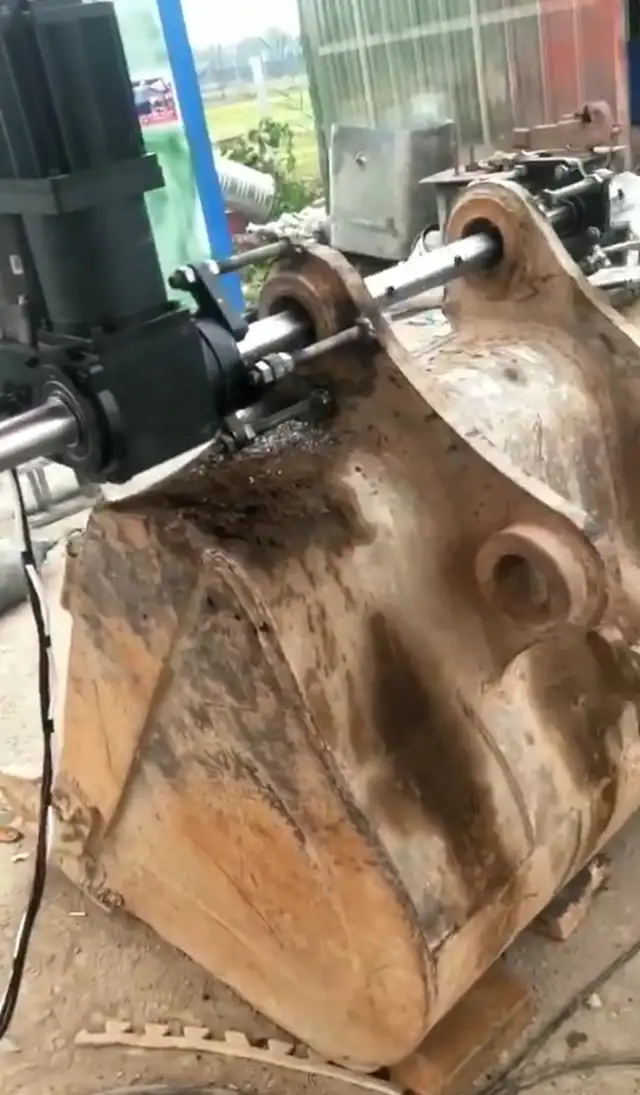

Portable boring machine is a piece of processing equipment mainly developed for on-site maintenance of engineering, energy, and chemical equipment. It is mainly used for processing small pipe inner holes and concentric spacing holes. It is widely used in excavators, cranes, loaders, and cranes.
The machine is combined with the actual needs of on-site processing, the equipment structure has been continuously improved and perfected, and the XDT50 portable boring and welding machine has been developed. It combines high-end equipment with multiple function modes for welding holes, boring holes, and end face processing.
-
Specification
Operating Voltage: AC 110V/50hz
Welding machine: European connector
(Note: The welding machine needs to be equipped by yourself)
Maximum welding hole diameter: 230mm
Minimum welding hole diameter: 60mm
Maximum boring diameter: 260mm
Minimum boring diameter: 55mm
Maximum processing stroke: 240mm
Maximum infeed depth: 3mm on one side (A3 steel)
Surface roughness: Ra3.2
Hole roundness error <=0.02mm
Boring bar: 50*1500MM
Welding bar: 30*1200mm
-
Item Included:022204

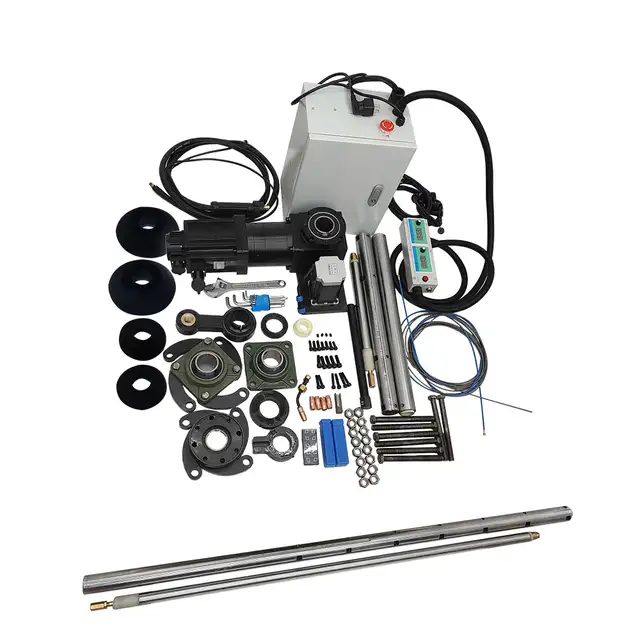

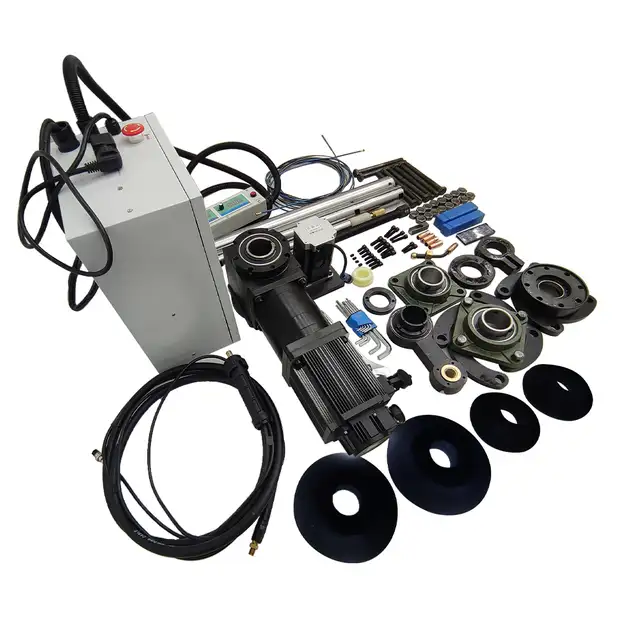

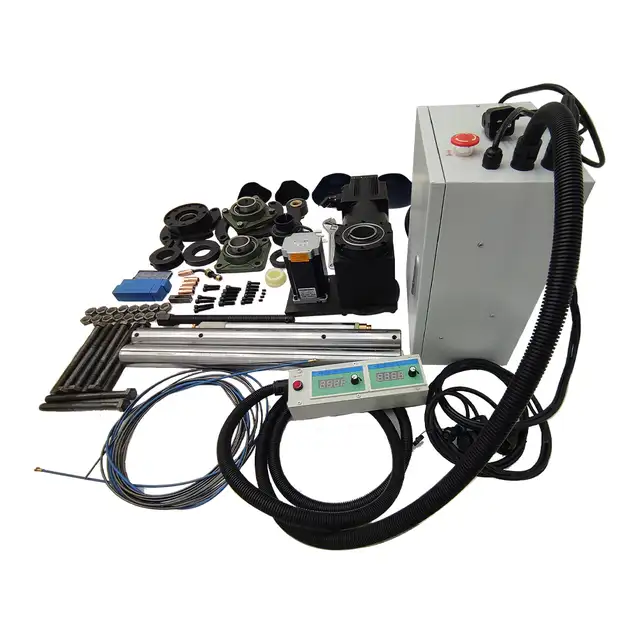

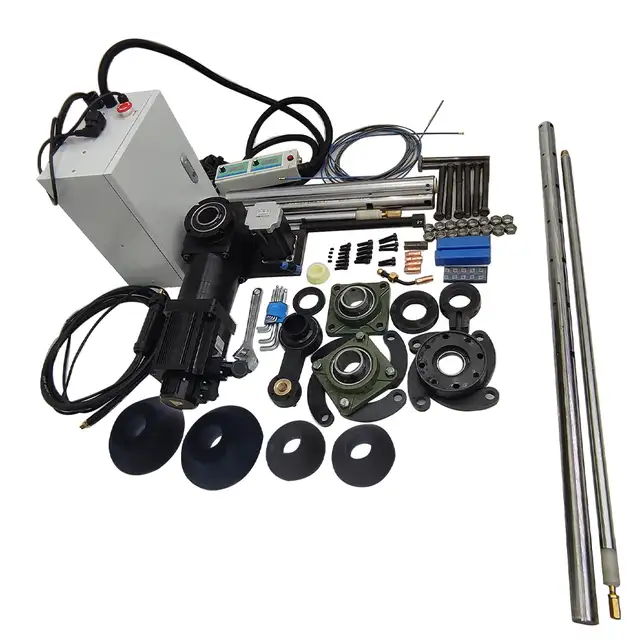

Line Boring Machine & Bore Welder Servo Line Boring & Bore WelderX1
Operating InstructionsX1
