Item number 130114
We provide service and technical support for free during warranty period.
The main function of is water cycle, if you want refrigeration and cooling, we recommend #130058
-

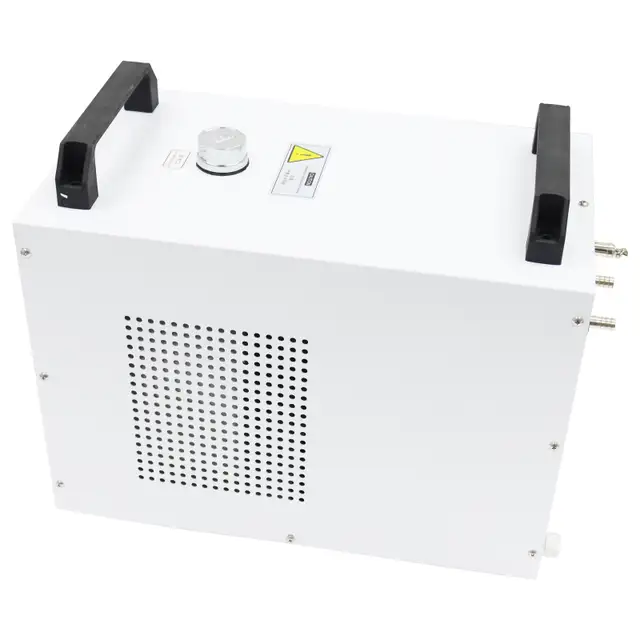

CW-3000 Series is professional cooling machine referring to international, advanced thermolysis cooling system design, suitable for small water-cooled cooling devices requested machinery.

1. Specific disconnection alarm security protection.
2. Hermetic type water tank, water is available for a long time used.
3. Real-time temperature monitoring, accurate knowledge of heating devices
working condition.
4. Professional air-cooled forced radiator with strong heat dissipating
capacity and difficult to be blocked up.
5. Equipped with alarm output port to protect sensitive components quickly.
6. High cost performance, low failure rate.
-
SPECIFICATIONS
MODEL:CW-3000DG
Voltage:AC100-120V
Frequence:50/60HZ
Current: 0.9 A
Cooling:50W/ Degrees Celsius
Capacity:9L
Inlet and outlet hold:Outside dimensions 10mm brass connector
Max .Lift:10M
Max.Flow:10L/min
Protection:Flow alarm
N.W: 9.5 Kg
G.W:12Kg
Dimensions: 47*27*37cm (L*W*H)
Packing dimensions: 59*39*48cm (L*W*H)
-
The first Installation
It is very simple to install this industrial cooling machine. The first time
installation of the new machine can be carried out by following steps.
1. Open the package to check if the machine is intact and all the necessary
accessories are completed.
2. Open the injection port, then add cooling water.
3. According to system conditions, connect the water inlet and outlet pipe
well.
4. Plug in power, turn on the power switch. (Do not allow the water overflow)
5. Check the water level of the water tank again. (It should be 80-150cm from
the surface of water to the injection port)
-
Maintenance
1. To ensure good heat dissipating, please open the lid to clean the dirt after the
cooler used in long-term.
2. Working in cold north area, it is better to use noncorrosive antifreeze fluidinstallation of the new machine can be carried out by following steps.
-
Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
-
