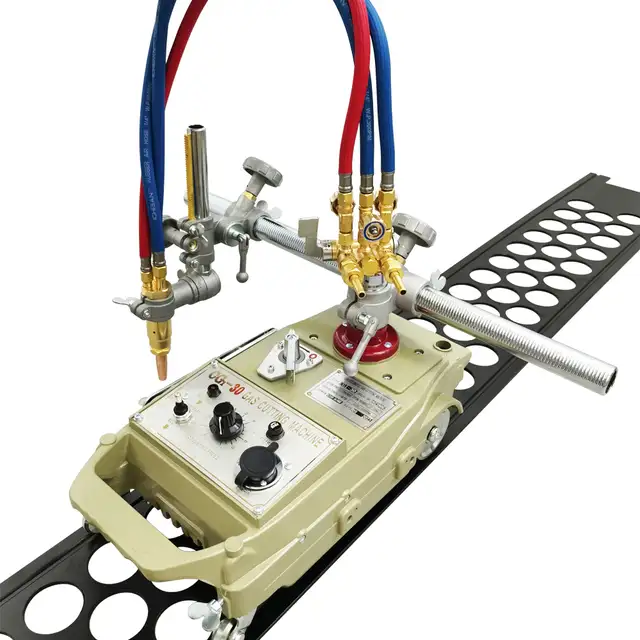

CG1-30CB Torch Track Burner Portable handle Gas Cutting machine 110V(Contains one track) 028346

Product Overview
This is a new portable gas cutting machine. It will automatically cut steel by using a track to run along. There is a track each approximately 5.9' in length. It can cut straight or beveled clean edges. This item will ship in two separate packages (one the machine and the other the track). Welding hose to connect to the machine not included.


Product Parameters
Voltage: AC110V
Automatic Cutting Speed: 1.97"-29.5"/min(50mm-750mm/min)
Thickness of cut steel plate: 0.16"-17.7"(4mm-450mm)[It depends on the type of cutting nozzle]
Cutting Circle Diameter: 7.87"-78.7"(200mm-2000mm)
Cutting torch specifications: Propane:G03#1 *1 G03#0 *1
Acetylene:G02#1 *1
Track length: 5.9ft(1.8m)
Machine package size: 26.4"*12.2"*11.0"(67cm*31cm*28cm)
Track packing size:72.8"*9.8"*1.6"(185cm*25cm*4cm)
Machine net weight/gross weight: 29.1LB(13.2kg)/30.0LB(13.6kg)


Product Features & Advantages
Shifting Unit
The moving device above the bar can make the cutting head move around, can accurately adjust thecutting torch cutting position,processing accuracy is higher.

Position Gauge
The machine is equipped with a standard positioning gauge, which can be used for circle cutting after installation, and can cut circles with a diameter range of 7.87"-78.7", providing more processing options!

Control Panel
The control panel includes the function of forward/backward and speed adjustment, the fuse is easy to change, and the caseis spraying plastics to prevent corrosion and clean easily.

Cutting Head
Cutting torch is made of pure copper material, high temperature resistant, with Angle adjustment scale, can adjust the cutting head Angle, cutting precision is higher.

Metal Casters
The four casters of the machine are made of metal, wear-resistant
and high-temperature resistant. They are perfectly matched with
their own track and move smoothly without shaking.

Gas Distributor
Gas distributor is made of high- quality alloy, with good sealing
performance. Intake volume of the two nozzles can be controlled
precisely through valves and quick switch.



- Adopt thyristor speed control, Steady speed change,walk smoothly.
- The fuselage adopts high strength alloy aluminum precision die-casting and durable.
- The Angle of the cutting torch can be adjusted freely. High cutting accuracy.
- With straight cut, can cut I, Y, V groove.Double torch can be cut at the same time.
- You can cut steel plates of different thickness by changing the cutting nozzle.Mesh guide is not easy to deform.

Item Included(028346)
CG1-30CB Flame Cutting Machine *1 Track *1(5.9ft) The power cord *1
Acetylene Cutting Torch *1 Propane Cutting Torch *2 English Manual *1
Fork wrench *1 Nozzle cleaner *10
