Item number: 021088

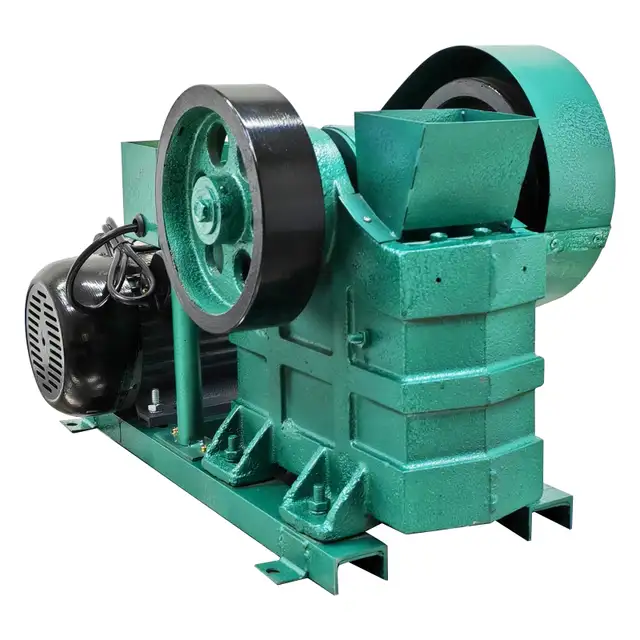

100X60 Mini Jaw Crusher for Rock Ore Slag Steel Slag Coal Stone Crushing 220V #021088
-
This jaw crusher is made of manganese steel which has higher hardness than carbon steel.

It is applicable to medium and fine crushed materials for the purposes of laboratories and production and is primarily provided as environmental protection equipment for coal, electric power, mine, geology, chemical, metallurgy, building material and other industries.
Suitable for crushing materials: Calcite, talcum, cobblestones, kaolin, slag, steel slag, diabase, coom, coalgangue, maifanstone, basalt,iron ore, quartz sand, CaCO3, bentonite ect.

Parameters
Voltage : 220V
Power: 1.5 KW
Feeding Inlet Size : 60*100mm
Feeding size: ≤55mm
Output size: 2mm~10mm (Adjustable)
Rotating Speed: 1400 RPM
Capacity: 250kg/h
Maximum Input size 3.9 * 2.3inch
Output size: 0.078-0.393 inches
Material: Cast iron
Shipped by a wooden box.
Crushing size can be adjusted.

Attentions

1.Install the machine on a sturdy base to avoid uneven force.

2.Put the side of strap against the wall for safety.

3.For the convenience of outlet, install the machine on a proper height.

4.Check the screws and strap before testing machine.

5.No-load test. It’s available to use after half an hour of test.

6.It’s better to crush medium-hard materials for prolonging the lifespan of the machine.

Usage method
1. After receiving the goods, check whether the machine packaging is intact and remove any abnormal situations that may occur during
transportation.

2. Fix the body horizontally and firmly on a solid ground to reduce vibration and noise.

3. The machine needs to be connected to the air switch. After turning on the power, rotate the emergency stop switchto ensure normal operation of the machine and ensure that the motor direction is consistent with the arrow mark ofthe crusher.

4.Start the motor for a few minutes and load the material into the hopper. Equipment into the normal operation phase,should pay close attention to whether the abnormal, if abnormal must immediately stop inspection, remove theexception. After the preparation of the sample, should continue to use the machine running for a minute, and then stop cleaning equipment, remove sieve block and debris.

Product details
Jaw plate regulating device
The discharge particle size can be adjusted as needed

Cast iron material
Good cutting performance,anti-penetration, wear-resistant and durable

Copper core motor
Sufficient power, low noise, strong ability to withstand overload

Note:
1.This machine has no plug and needs to be connected to the air switch for use by the customer (we have a video of the wiring, if you can't wire it, you can contact us for a video reference)

2.When using the machine, preventive measures must be taken. During machine operation,hands, clothing, and tools should be kept away from moving parts to avoid touching them with hands and prevent harm to the human body.

3.After working for about 2 hours, let the motor rest and cool down before continuing to use it.


Items included: 021088
1 set of 220V 100X60 Mini Jaw Crusher
