Item number: 021494

Heat Film Shrink Wrap Tunnel Packaging Sealing Machine BS3015 Mesh Type 220V #021494
-
BS-3015 thermal shrink packaging machine adopts quartz farinfrared tube in direct heating or PVC/POF shrinking membrane to achieve optimal contrationpackaging.The machine is made reliable by electronic stepless shift and booster in temperature control,The products packed can be sealed well,prevented from getting damp and protected against knocks.It is suitable for tight wrapping packaging of many-piece articles and tray packaging .which is applied in contraction packaging in.

Product parameter:
Material: Iron spray paint
Max shrink size: 11.81"X5.9" (30X15cm)
Max.feeding weigh: 10Kg (22Lb)
Conveyer speed: 0-32.8/ft (0-10m/min)
Power: 4500W
Voltage: 220V

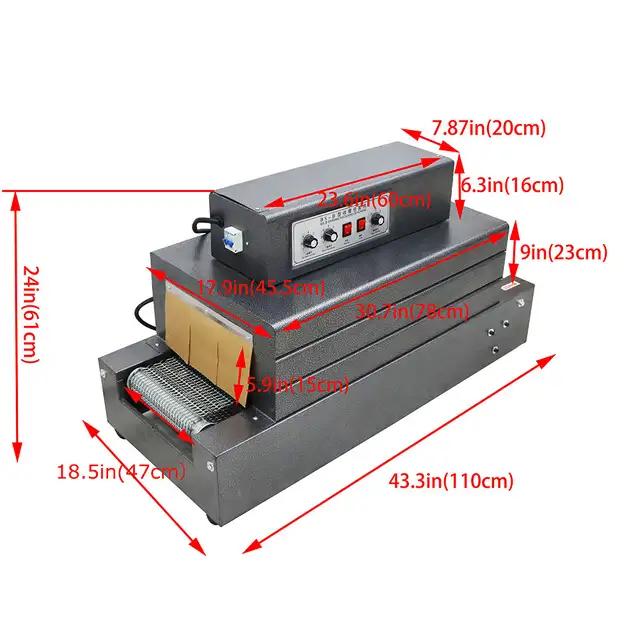

Machine size: 43.3*18.5*24inch/110*47*61cm

Shrinking Thickness (mm) Heating time(s) Temperature (C) Shrinking thickness (mm) Heating time(S) Temperature (C)
membrane
PVC 0.02-0.06 5-10.110-130
POF 0.02~0.06 5~ 12 120-180


Precautions for product use:
1.For high-power machines, we recommend directly connecting to the main power supply for greater safety and reliability, as well as a more stable voltage. (We have a video of wiring, if you are unable to connect, you can contact us for video reference)

2.After starting the machine and setting the temperature, customers need to wait for 10-15 minutes to properly shrink the product. (It takes a certain amount of time for the heating tube to rise to the set temperature)


Feature:
Mesh conveyor belt (recommended for products with small volume and light weight)
Metal mesh belts have fast thermal conductivity, high bottom temperature, and large contact surfaces. When placed on the mesh belt, the film is prone to imprinting. It is not recommended for products with strict appearance or large contact surfaces. For products with less contact between the bottom and the mesh, a mesh shrink machine can be used. (For products with large volume and heavy weight, it is recommended to use a chain type conveyor belt shrinkage machine)

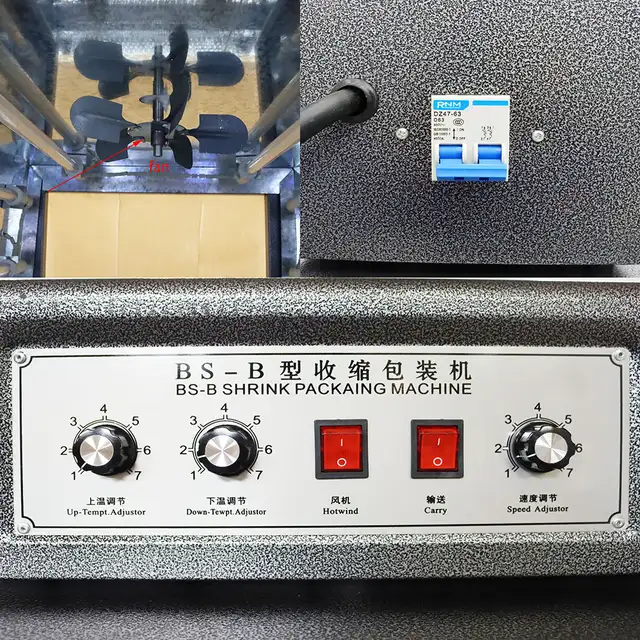

Intelligent control panel
Adjustable upper and lower temperatures, adjustable conveyor belt speed, and convenient operation.

Core electrical box control box (with fan)

Overload protector
Adopting an independent overload protector, effectively preventing problems such as overheating and overcurrent, safe and durable.

Exhaust and heat dissipation holes
When the machine is working, the heat generated will be dissipated through the heat dissipation holes, resulting in fast heat dissipation and prolonged machine usage.


Product safety precautions:
To ensure safe production, please read the following precautions carefully:
1. Remember the principle of "safety first" and operate this tool correctly;
2. Strictly start this machine according to the appropriate power supply;
3. When the machine is working, it is strictly prohibited to reach into the inside of the shrinking machine to prevent burns. After stopping the machine, it is necessary to wait for it to cool down for a period of time before touching the inside of the machine;
4. It is strictly prohibited to use strong acid and alkaline solutions to clean and wipe this machine;


Item include: 021494
220V Shrink Tunnel Packaging Machine*1
