Item number: 238005

Electric Floor Grinder for Concrete Epoxy Ground with Vacuum Dust Collector Sander Polisher for Removing Floor Coating with 4 Heads External Fan 380 Type 220V 238005
-
Features
1. The pure copper motor is of high quality and the product is sturdy and durable.
The new stator and rotor of the motor can easily realize the conversion of electrical
energy and mechanical energy.

2.The diamond chassis is sharp, hard, resistant to wear and high in work efficiency
and quality.

3.High performance, stable life, long service life.

4.Highly adaptable cement floors can also be fully hardened and work can be done
at the root of the wall.

5.With dust suction fan, dust-free operation.

6.The grinding head can be replaced for grinding, polishing, rust removal and paint
removal.

Parameter
Voltage 220V
Power 4KW
Fan Power 750W
Work Efficiency 2500m²/8h
Dust Bin Volume 20L
Work Depth 0-3mm

Details
Dust shield, can automatically adjust the height according to the ground height.

Rubber damping wheel, running more smoothly.

20L large-capacity dust collection box, without frequent cleaning.

Aviation plug, safe to use, fast and efficient connection.

High power fan, good dust absorption effect.

Give away 5 meters of wires. The maximum length of the wire connected to the machine can be 90 meters. The specification is three-core wires. Each wire should not be less than 6 mm ² of pure copper wire. The wire must be connected to the air switch, and the rated current of the air switch is about 63A. As shown in the picture of wiring mode,please contact us if you have any questions.Special dust removal device, gently pull, dust will fall.

Precautions for use

1. The input voltage should not be too low.

2. When using, first lift the machine head off the ground,and then turn on the
switch. When the machine head rotates normally, gently place it on the ground.

3. When working, the machine head swings left and right,then moves forward, and
cannot stop in place.

4. In case of power failure during operation, the switch should be reset and cannot
be stopped at the original position to avoid burning the motor when the power is
on.

5.If a generator is used to provide power, the output power of the generator must
be at least 12KW.

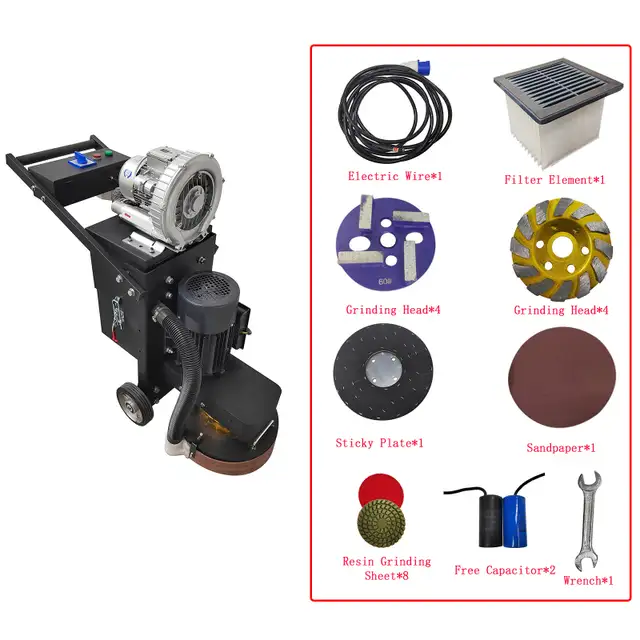

Item Included: 238005
1*Hand-push Cement Ground Grinder 220V




Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
