Item number: 153228

Product Overview

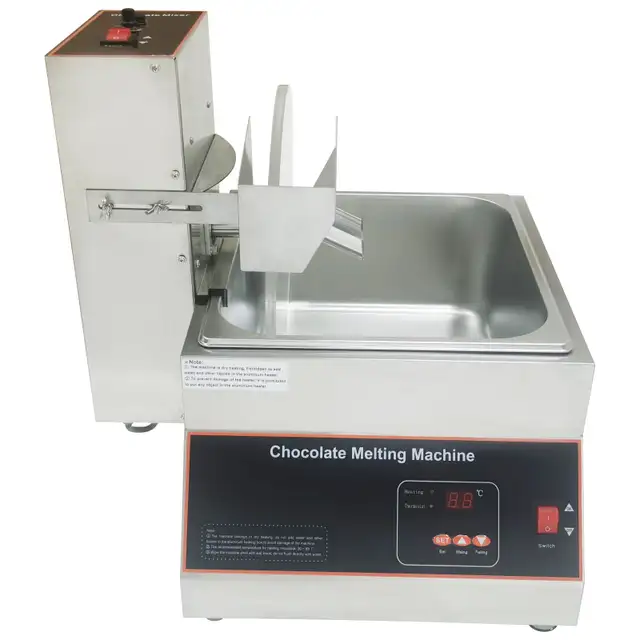

The digital display chocolate melting machine is a commercial and household heating device specially designed for heating chocolate bars and keeping the temperature of chocolate sauce and adopts the digital control over the temperature and the air heating mode to achieve uniform heating and heat preservation. The chocolate mixer can cooperate with the chocolate melting machine, is mainly used for stirring the melted chocolate to achieve more uniform heating and heat preservation of the melted chocolate, adopts an energy-saving high-torque gear motor and allows the mixing speed to be freely adjusted. The chocolate mixer and digital display chocolate melting machine can be widely applied to hotels, restaurants, bakeries, coffee shops, chocolate shops, families and so on.

Product Parameters
Name: Chocolate mixer
Name: Chocolate melting machine
Model: D2013
Model: D2018
Material: 201 Stainless steel machine body Acrylic plastic rotating disc
Material: Stainless steel
Voltage: AC 110V 60Hz
Voltage: AC 110V 60Hz
Power: 50W
Power: 500W
Speed range: 38-55RPM
Temperature range: 0-95˚C
Applicable model: D18-2/3
Capacity: 12kg (26.46LBS)
Diameter of rotating disc: 28.5cm (11.22in)
Size of pot: 35.3x32.5x15cm (13.9x12.8x5.91 inches)
Product size: 26x32x38cm (10.24x12.6x14.96 inches)
Product size: 35x46x25cm (13.78x18.11x9.84 inches)
Total net weight: 12.6kg (27.78LBS)

Attention
Notes for chocolate melting machine:
1. The product is made of stainless steel and should be put gently and should not be put upside down. It should not make contact with corrosive objects. It should be placed in a horizontal place during use. A certain distance should be kept between the body and other objects to ensure sufficient space for heat dissipation.
2. The used power voltage must accord with the voltage parameter on the product nameplate. It is recommended to use an independent special socket (15A), the power supply must have a grounding wire to prevent static electricity generated by the stainless steel shell.
3. To prevent danger caused by burnout of the PTC heating plate and the temperature probe, it is prohibited to add water or other liquid into the aluminum heater. To prevent deformation or damage of the heater, it is prohibited to put any object in the aluminum heater.
4. In case of warnings like “Heater deformation and breakage; power line damage”, stop using the machine immediately.
5. This product is not suitable for people (including children) with physical, sensory or mental handicaps and inadequate experience and knowledge.
6. The electrical connection installation and maintenance of the product should be conducted by the professional personnel with the electrician operation certificate.


Notes for chocolate mixer:
1. The product is made of stainless steel and should be put gently and should not be put upside down. Please assemble the support plate, the fixing screws, the guide chute and the chocolate rotating wheel of the mixer before using.
2. The power supply voltage must be consistent with the voltage parameter on the product nameplate. It is recommended to use an independent dedicated socket (5A), and the power supply must have a ground wire to prevent static electricity generated by the stainless steel shell.
3. When the chocolate is solidified, the mixer is strictly forbidden to start stirring, otherwise the motor will be blocked, and the machine will be damaged.
4. Avoid placing the machine in a high temperature environment, such as the place next to the gas stove and kerosene stove.
5. If warnings (e.g. the chocolate is not fully melted or is solidified, and the power cord is damaged) appear, stop using the machine immediately.
6. This product is not suitable for people (including children) with physical, sensory or mental handicaps and inadequate experience and knowledge.
7. The electrical connection installation and maintenance of the product should be conducted by the professional personnel with the electrician operation certificate.

Product Features
The independent control over the electric chocolate mixer is achieved through the power switch. The high-torque gear motor has the power of 50W, effectively saving energy and reducing consumption. The mixing speed can be freely adjusted to meet different mixing requirements and make chocolate paste uniform and smooth. The control panel is simple and compact in structure and facilitates operation and control. 　 The mixing disc is made of acrylic plastic materials with the excellent heat conductivity, prolonging the cooling time and keeping the stable temperature. The acrylic mixing disc is flat and smooth in surface, chocolate paste can be scraped away from the disc surface quickly and effortlessly, and the mixing effect is better. The mixing speed of the disc can be freely adjusted according to the melting state of chocolate.

The mixing pot of the chocolate melting machine is made of high-quality stainless steel, achieving rust and corrosion resistance, high structural strength and high temperature resistance. The capacity of the mixing pot is 12kg, more chocolate paste can be held, and the practicability is higher. The mixing pot has a smooth inner wall, so cleaning is much easier. 　 The chocolate melting machine is equipped with a digital display panel, the heating temperature can be displayed clearly and visually and adjusted freely as required. The states of heating and thermostat can be indicated directly to facilitate observation. The air heating mode is adopted to achieve uniform heating. The humanized design makes operation easy and convenient.

Operation Method
Operation steps of chocolate melting machine:
1. First, check whether power connection is available, and whether there are objects, liquid, chocolates and other residues in the aluminum heater.
2. Insert the power plug into a special socket.
3. Place the stainless steel pot on the aluminum heater. Adjust 4 mobile feet at the bottom to balance the machine.
4. Turn on the power switch (SWITCH), the switch light and the display screen are on. After the self-test is completed, press the SET key to enter the temperature setting mode, and pressing the up or down key to warm up or cool down. After the temperature is set, the Heating light is on, and it indicates that the PTC heating plate starts to work. After the temperature rises to the set value, the thermostat light is on, and the PTC heating plate stops working. When temperature falls to the preset lowest value, heating is conducted again. This process is recycled to ensure the aluminum heater is kept at constant temperature in the set range.

Operation steps of chocolate mixer:
1. Hang the main machine in the middle position on the left side of the chocolate melting machine, and fix the machine with screws.
2. Install and fix the Acrylic rotating disc on the motor shaft with screws. Use the butterfly nut to fix the stainless steel guide chute at its special position.
3. Check the chocolate in the chocolate melting machine and make sure that the chocolate is completely melted.
4. Insert the power cord into the machine's dedicated socket and ensure that the power supply is properly connected.
5. Turn on the power switch, the switch light is on, rotate the speed knob to adjust the speed appropriately, and then the machine starts to work.
6. After use, turn off the power switch and unplug the machine.　

Item Number (153228): 1 x Electric Chocolate Mixer and Melting Machine 110V
