Item NO. 130053
Features:
1.AC110V wide input voltage range, universal for all countries voltage.
2.Special design for outer shell, more beautiful appearance, better heat dissipation.
3.Improved current control mode, more stable laser, better compatibility, more adaptable for different kinds of laser tubes.
4.Simple power control, user can control laser with high or low level signal.
5.With test button, easy to test laser tube and power supply.
4.Small size outer shell, suitable for installing on the beam of cutting bed
-
Parameters:
Input voltage:AC110V
AC frequency:47---440Hz
Max input power:750W
Max input current:3.5A
Max output voltage:50KV
Max output current:32mA
Withstand voltage:Input-output, input-shell:AC1500V 10mA 60s
Cooling:Force air cooling
L*W*H(mm): 313*200*82
Shell color:blue
Efficiency:≥90%
MTBF(mean time between failure):≥10000hours
Response speed:≤1mS（the time from the signal is given to output current reaches 90% of set current ）
Working environment:Temperature（-10~40）℃ , relative humidity:≤90%
Applicable laser tube power:100W-150W
Weight:3.14kg
-
Included:130053

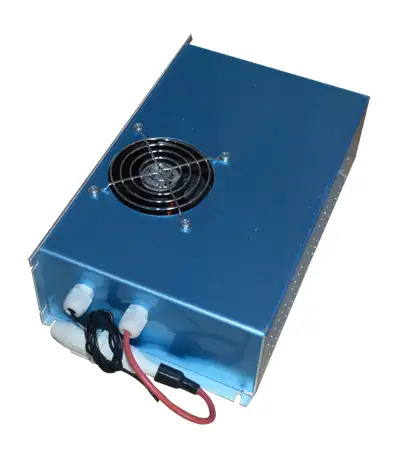

120W CO2 Laser Engrave Power Supply *1

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
-
