Item number: 021363
-
Final Sale,No return & No refund ,Six Month Warranty.
-

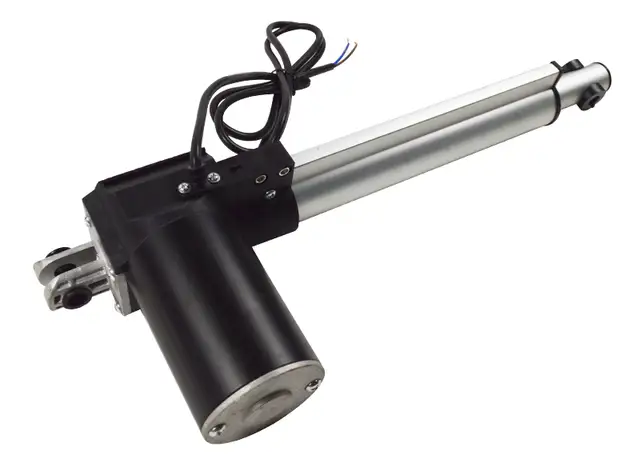

Linear Actuator 12V DC 1320LBS(6000N) 3.94inch(100mm) Linear Motor Actuator 021363

Linear actuators are widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on. With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc.

Please Note:

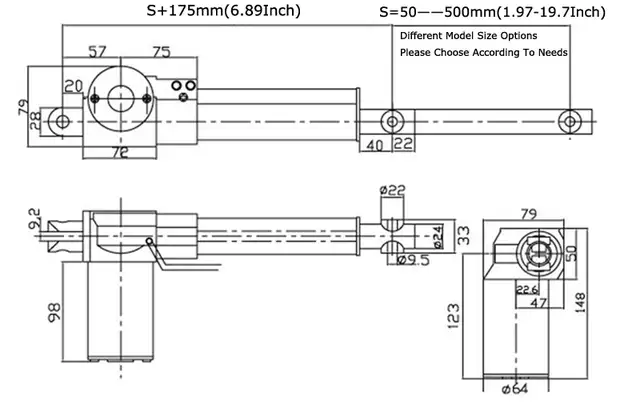

Because of many models, different telescopic length. So actual item may look different from the one shown on the web page. The web page shows: S = 200MM (8Inch).

Parameters:
Input Voltage : 12V DC
Stroke Length: S = 100mm (3.94inch)
Min Installation Dimension: L=S 175mm
Max Installation Dimension: A= 2S 175mm
Max Push Load : 6000N (1320lbs)
Max Pull Load : 4500N (990lbs)
Speed : 5~7mm/s
Operating frequency : Max 25%
Duty Cycle : 25%
Protective Class : IP54
Operation Temperature: -26~85℃
Control Mode : Positive & Negative
Package size: 13.8*6.7*4.7inch (35*17*12cm)
Gross weight: 5.28lbs (2.4kg)

Items included: 021363

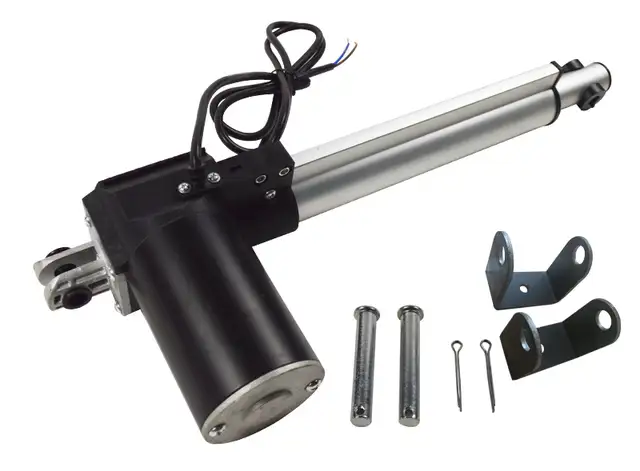

1 set of Linear Actuator(6000N,100mm,12V DC)
