Item number: 230196

110V 5mm Straight Vibrating Sieve Screen Shaker 110V Linear Sifter Machine Stainless Steel One Layer One Motor 230196

Introduction:
The new high-efficiency screening equipment has a screen moving trajectory that is approximately straight. This sieve machine has simple structure, large screening capacity, low energy consumption and easy maintenance. It is widely used in mining, coal, electric power, metallurgy, building materials, fire resistance and other industries for large block materials and medium and small granular materials.


Working principle:

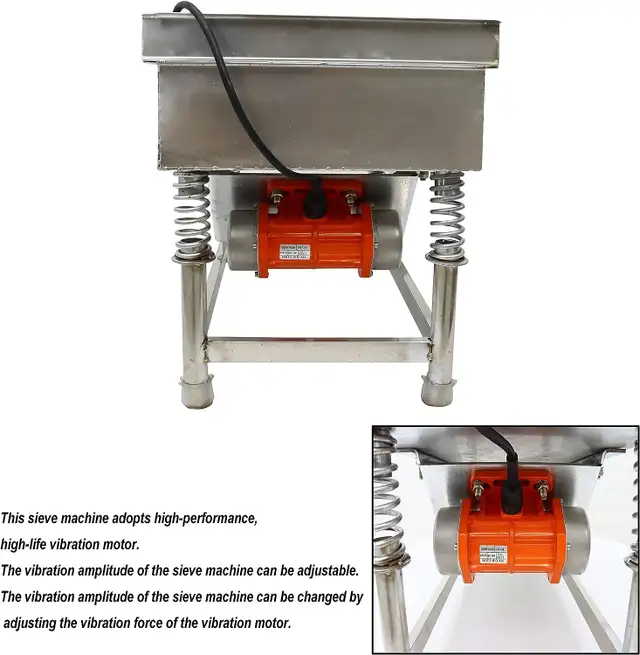

The screen box relies on the vibrating motor to rotate in the opposite direction simultaneously so that the whole screen machine supported on the damper vibrates in a straight line. After the material falls into the screen box from the feeding end, it quickly moves, loosens and sifts through the screen to complete the screening operation. This machine is composed of sieve box, vibration motor, vibration damping system and chassis. The sieve box is composed of a sieve frame, a sieve plate, a lining plate. This sieve machine adopts high-performance, high-life vibration motor. Adjusting the vibration force of the vibration motor, the vibration amplitude of the sieve machine and can be changed. The vibration damping system consists of a rubber spring and a clamp, a support base and the like. The chassis consists of a silo and a chassis.


Specification:
Parameters:
Voltage: 110V
Power: 80W

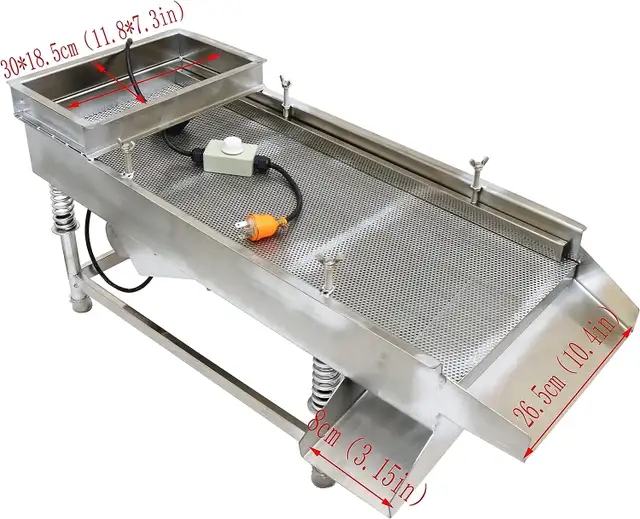

Screen size: 30cm*75cm(11.8 "*29.5")

Note:Two kinds of plugs are shipped randomly



Features:
1. Small volume and large screening capacity.
2. Light weight, easy to install.
3. Less energy consumption.
4. Simple structure and beautiful appearance.
5. The screen is assembled from small pieces and the replacement is very simple.

Item included: 230196
1*110V Full Stainless Steel Linear Vibrating Screen(JG30-75 5mm)

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
