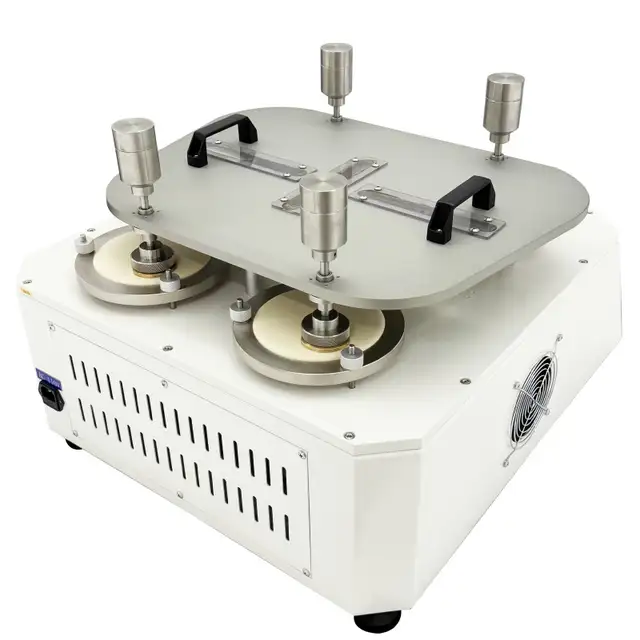

Martindale Abrasion Tester 4-Station 110V Digital Display Textile Fabric Pilling Wear Resistance Testing Machine ASTM D4966 056467
-
Product Overview
The Martindale Abrasion Tester is a professional-grade laboratory instrument designed for testing the abrasion resistance and pilling performance of textile fabrics. This advanced 4-station testing machine allows simultaneous testing of four samples, significantly improving testing efficiency for quality control labs, textile manufacturers, and research institutions.
Ideal for woven, non-woven, and knitted fabrics including apparel textiles, upholstery, industrial fabrics, and floor coverings with pile depth less than 2mm. The machine performs reciprocating friction motion under specified load conditions to accurately determine material durability and surface changes, providing reliable data for product development and quality assurance.
Pilling Test Notice: Pilling test function requires separate purchase of pilling test heads. Standard machine configuration includes abrasion testing only; please contact seller for pilling test head upgrade options !!!

Key Applications
●Textile abrasion resistance testing (ASTM D4966, ISO 12947)
●Fabric pilling assessment (ISO 12945-2)
●Quality control for fabric manufacturers
●Research and development testing

Product Parameters
Voltage: AC110V/60Hz
Number of Stations: 4
Power: 200W
Display Type: Digital Display
Applicable Standards: ASTM D4966,ISO 5470, ISO 12947-2, ISO 12945-2
Counter Range: 0 – 99,999,999 cycles
Gripper Weight: 200 ± 1g
Fabric Sample Weight: 395 ± 2g
Loading Hammer Weight: 2,385 ± 10g
Friction Diameter: 28.8mm
Sample Size: 38mm diameter
Friction Speed: 50 ± 2 r/min
Maximum Stroke: 60.5±0.5mm

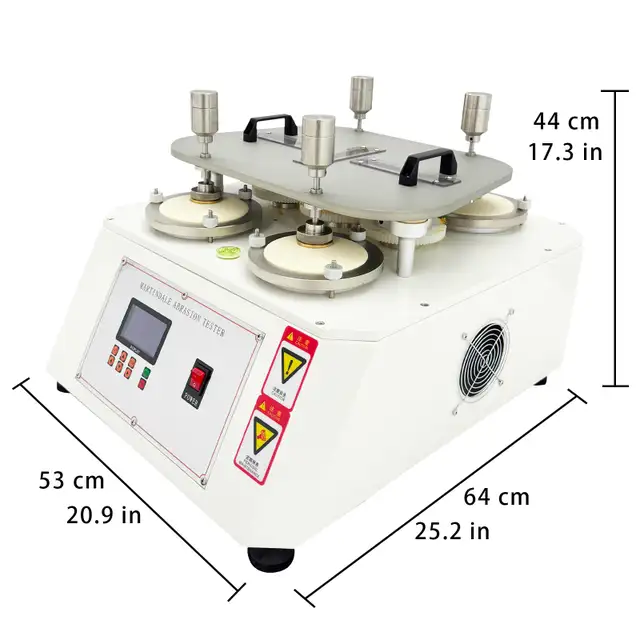

Package size: 36.6"*24.4"*21.3"(93cm*62cm*54cm)
Net weight/Gross weight: 109.1LB(49.5kg)/196.2LB(89kg)

Safety Warnings
⚠ HIGH VOLTAGE WARNING
This equipment operates on 110V electrical power. Ensure proper grounding connection before use to prevent electric shock.
⚠ GROUNDING PROTECTION
Apparatus MUST be connected to grounding terminal. Do not operate without proper earth connection.
⚠ OPERATIONAL SAFETY
Keep hands away from moving parts during operation
Do not exceed maximum stroke limits
Ensure adequate ventilation during operation to prevent overheating
⚠ MAINTENANCE SAFETY
Disconnect power supply before cleaning or maintenance
Use appropriate supply voltage only - voltage mismatch will damage equipment
Clean cylinder surfaces with cotton cloth before and after each test
⚠ HANDLING PRECAUTIONS
Machine contains precision plastic components (central wheel) - handle carefully when converting between test modes to avoid thread damage
Do not disassemble or modify machine without professional guidance
Contact manufacturer for any abnormal operation - do not attempt unauthorized repairs

Product Features & Advantages
Efficient Heat Dissipation System
The built-in high-performance cooling fan with protective chrome grill ensures optimal thermal management during continuous testing operations. The cross-brace design prevents foreign object intrusion while maintaining maximum airflow, extending motor lifespan and ensuring stable performance even during extended 24-hour testing cycles.

Calibrated Pressure Mass Assembly

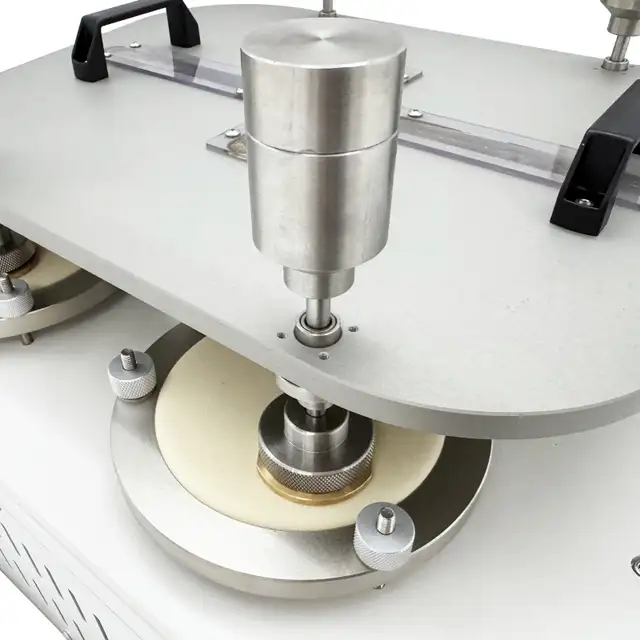

Features precision-machined stainless steel weight cylinders that deliver consistent, ISO and ASTM-compliant pressure distribution. The knurled adjustment ring allows for quick, tool-free weight configuration changes between abrasion and pilling tests. Engineered for repeatable load application with ±1g accuracy, ensuring test results meet international certification standards.

Intelligent Digital Display Control Panel

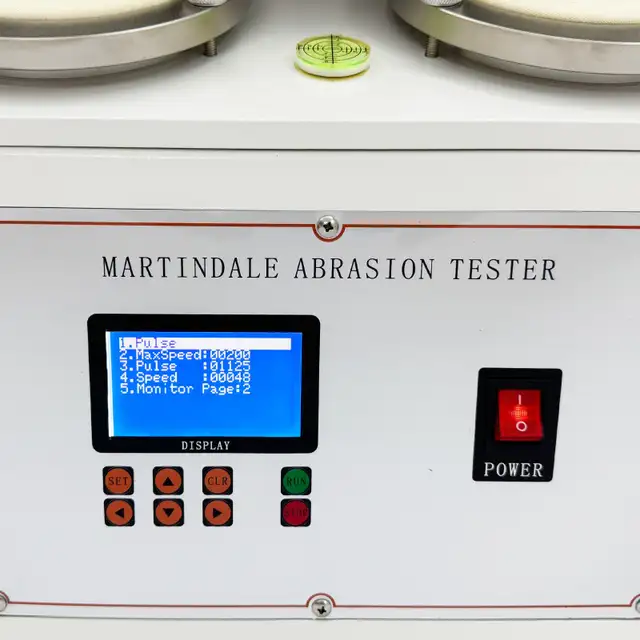

Large-format blue backlight digital display provides real-time monitoring of test parameters including cycle count, speed (50-2r/min), and operational status. Intuitive button layout with tactile feedback: SET for programming, directional arrows for navigation, CLR for reset, RUN/STOP for operation control. Programmable counter range 0-99999999 cycles with automatic stop function prevents over-testing and sample damage

Industrial-Grade Stability Base
Heavy-duty rubberized leveling feet with threaded height adjustment provide superior vibration dampening and floor protection. The wide-diameter base design distributes machine weight evenly, preventing movement during high-frequency testing operations. Easily adjustable for uneven laboratory floors, ensuring precise horizontal alignment critical for accurate Lissajous curve motion.

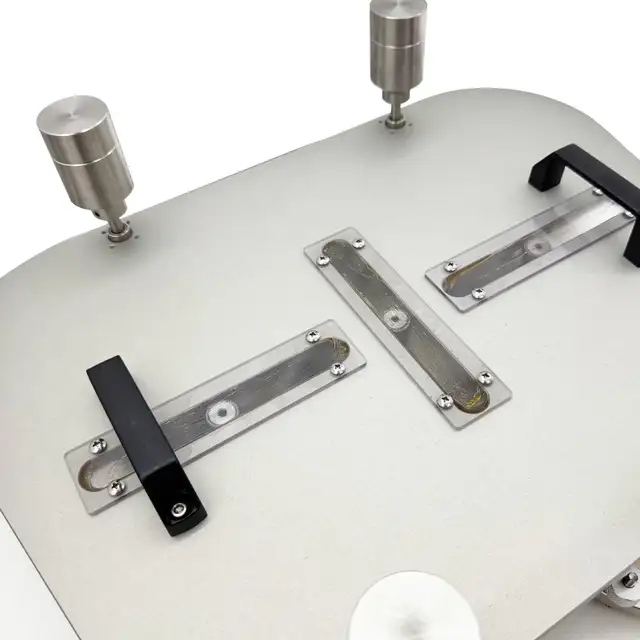

Robust Transmission System
Exposed view of the precision-engineered drive rails and bearing blocks that create the characteristic Lissajous motion pattern. Hardened steel guide tracks with self-lubricating bronze bushings ensure smooth, maintenance-free operation for millions of cycles. The modular design allows quick conversion.

Built-In Leveling Verification

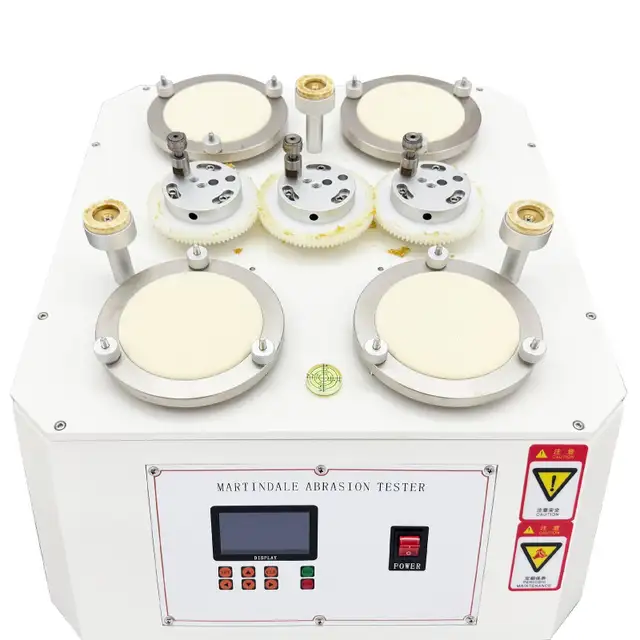

Integrated bullseye spirit level (0-9° scale) enables quick horizontal calibration, ensuring test specimens maintain optimal contact pressure across all four stations. The dual-station view shows the 28.8mm diameter grinding blocks with precision-machined clamping rings. Knurled thumb screws provide secure, tool-free sample holder fixation while allowing rapid specimen changes between tests.

4-Station Simultaneous Testing – Test up to 4 fabric samples at once, maximizing laboratory efficiency and throughput for high-volume quality control operations.
Precision Lissajous Motion – Unique geometric friction pattern ensures consistent, repeatable testing results that meet international standards
Intelligent Digital Display Control – Easy-to-program counter (0-99999999 cycles) with automatic stop function; simple button interface for test parameter setting and operation.
Expandable Test Capabilities – Standard configuration includes abrasion testing; optional pilling test heads available for upgrade (additional purchase required), allowing future expansion without equipment replacement.
ISO-Compliant Testing Standards – Meets international certification requirements (ISO 5470, ISO 12947-2, ASTM D4966) for textile abrasion resistance testing; trusted by quality control labs and textile manufacturers worldwide for accurate, repeatable results.
Heavy-Duty Industrial Construction – Precision-machined stainless steel frame with corrosion-resistant coating ensures years of reliable operation in demanding laboratory environments; robust vibration-dampening base maintains stability during high-frequency testing.

Operating Instructions
Step 1: Sample Preparation
Cut fabric samples using the 38mm or 140mm sample cutter (depending on test type)
Ensure samples are free from wrinkles, defects, and edge effects
Condition samples in standard atmosphere (temperature 20±2°C, humidity 65±4%) for minimum 24 hours
Step 2: Equipment Setup
Place machine on solid, level ground
Install standard felt (165mm diameter, 750±50g/m²) and wool pad on grinding table
For abrasion test: Set three drive shaft blocks to Position #1
For pilling test: Set three drive shaft blocks to Position #2
For linear test: Set three drive shaft blocks to Position #3
Step 3: Sample Mounting
Place sample face-down on sample holder with standard foam backing
Secure sample holder onto grinding table and insert center shaft
Ensure proper alignment and secure clamping
Step 4: Test Execution
Press SET button for 3 seconds to enter programming mode
Input required test cycles using control buttons
Press RUN to start the test
Machine will automatically stop when programmed cycles are completed
Step 5: Evaluation
Remove tested samples carefully
Rate pilling performance using standard photographic rating charts under specified lighting conditions
Record abrasion resistance data for analysis

Item Included (056467)
Martindale Abrasion Testing Machine X1
The Toolkit X1
American Standard Plug X1
