Item number: 054574
-
Final Sale,No return & No refund ,Six Month Warranty.
-
30 Ton Low Profile Hydraulic Jack CP-700 Manual Hydraulic Hand Pump Kit 054574

Product Description:

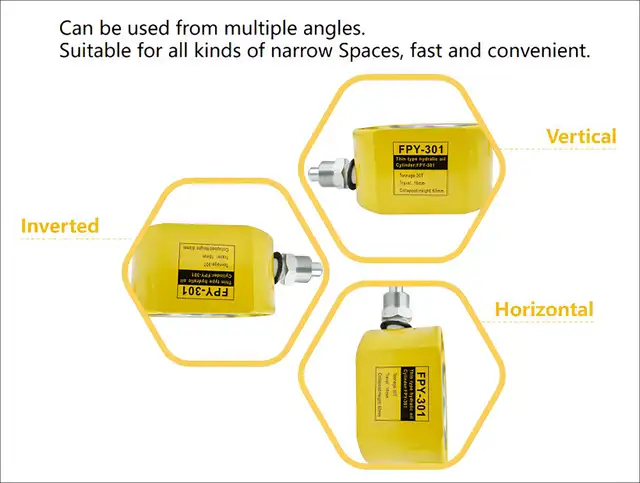

1.Ultra-thin & Portable：This low profile hydraulic ram is small in size, strong in load-bearing capacity.It is especially suitable for use in narrow spaces and has the characteristics of lightness and flexibility.

2.Smooth lacquer surface & Anti-dust cover：The surface of hydraulic ram cylinder is painted with lacquer, which is not easy to rust. Made of heavy-duty metal construction, our hydraulic cylinder jack is durable and designed for long-lasting use. Anti-dust ring can reduce pollution, thereby prolonging the service life of hydraulic cylinder.

3.Composite structure & Multi-function：It has multiple functions such as lifting, jacking, shoveling and splitting, and can be quickly installed by using quick connectors. The CP-700 pump is suitable for various types of jacks such as FPY (301, 501), RSC (3050, 5050, 10050, 20100, 30100, 10150, 20150, 30150), etc.

4.Can be used with multiple tools：Manual hydraulic pump can be used with split hydraulic products, such as punching machine, cutting machine, bending machine, hydraulic jack, hydraulic puller, split hydraulic clamp, flange expander, split ram and other separate hydraulic equipment.

5.Wide Range of Applications：This hydraulic jack cylinder is a great helper for riggers, fabricators, welders, and frame shops in electric power, chemical industry, steel, Bridges, machinery, and other industries.

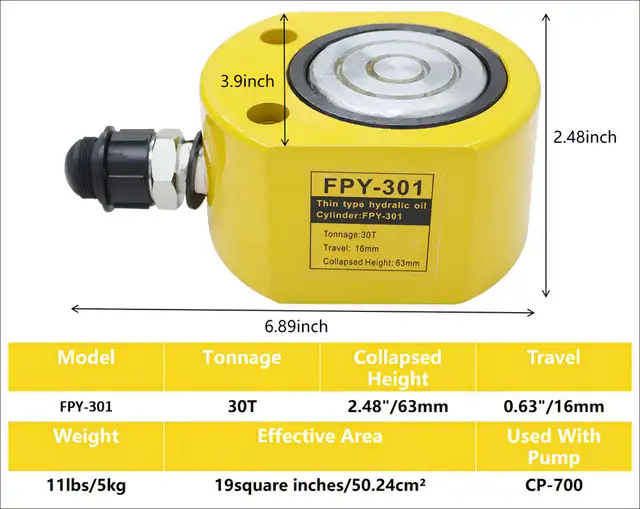

Product Parameter:

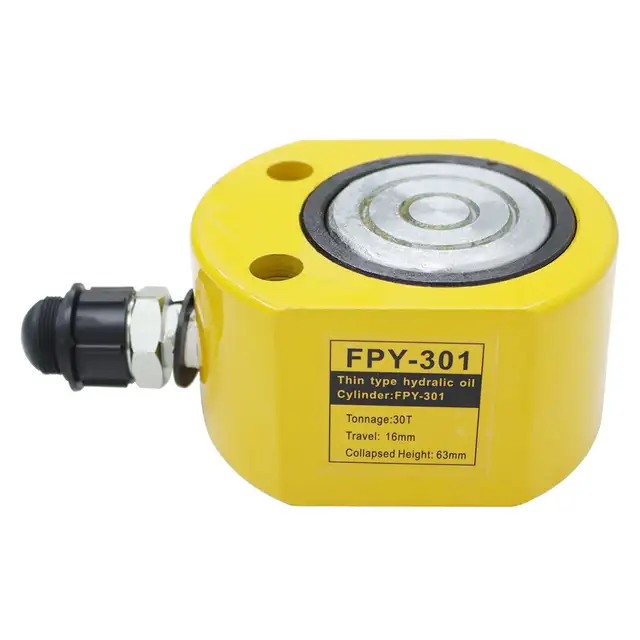

Mode： FPY-301
Tonnage： 30T
Collapsed Height： 2.48" / 63mm
Travel： 0.63" / 16mm
Weight： 11 lbs / 5kg
Effective Area： 19 sq.in / 50.24 cm²
Used with Pump：CP-700

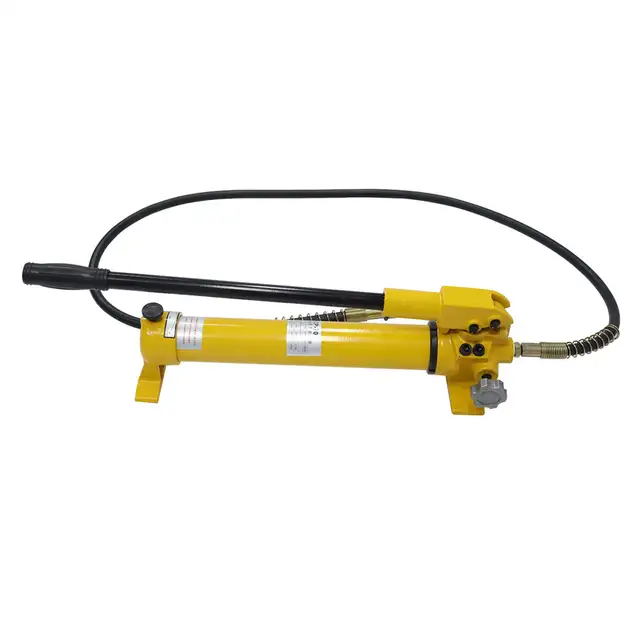

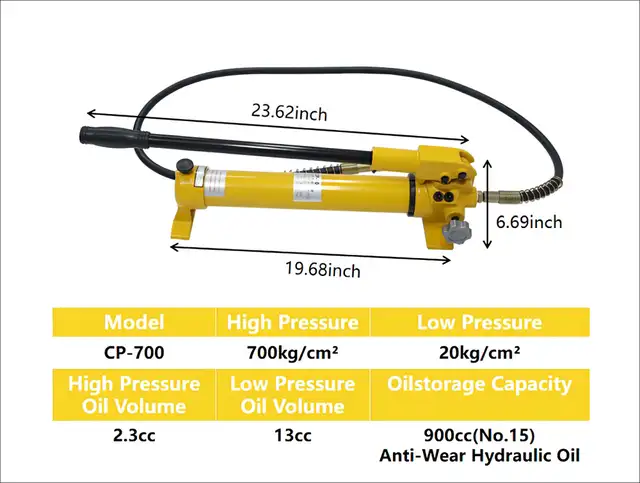

Compatible Pump
Model： CP-700
High Pressure： 700 kg/cm²
Low Pressure： 20 kg/cm²
High Pressure Oil Volume： 2.3 cc
Low Pressure Oil Volume： 13 cc
Oil Storage Capacity： 900 cc (with No.15 Anti-Wear Hydraulic Oil)

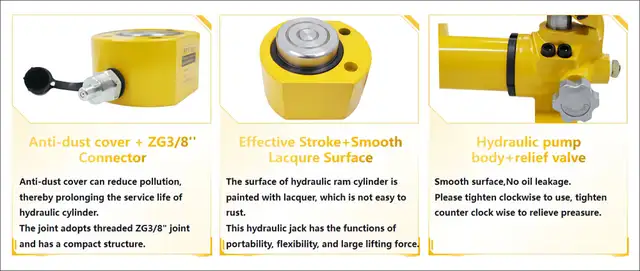

Product advantage
Anti-dust cover ZG3/8" Connector
Anti-dust cover can reduce pollution, thereby prolonging the service life of hydraulic cylinder.
The joint adopts threaded ZG3/8" joint and has a compact structure.

Effective Stroke Smooth Lacqure Surface
The surface of hydraulic ram cylinder is paintedwithlacquer,whichis noteasy to
rust.
This hydraulic jack has the functions of portability,flexibility,andlargeliftingfore

Hydraulic pump body relief valve
Smooth surface,No oil leakage.
Please tighten clockwise to use, tighten counter clock wise to relieve preasure.


Item Included: 054574

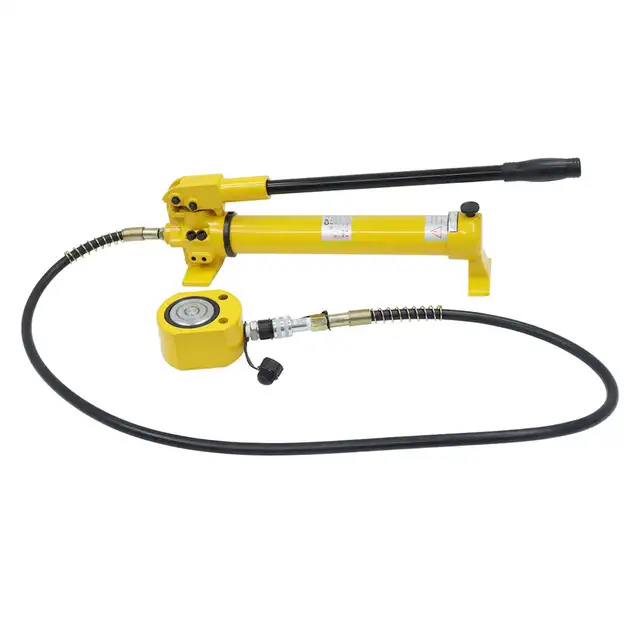

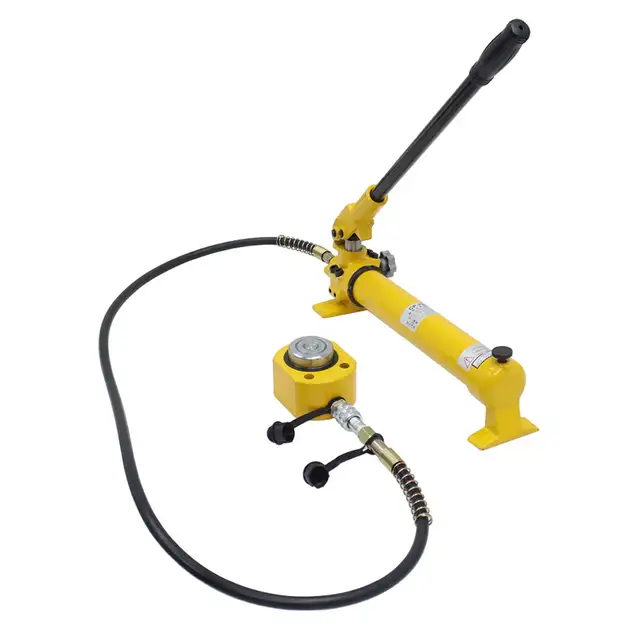

1*30 Ton Low Profile Hydraulic Jack 1*CP-700 Manual Hydraulic Hand Pump





Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
