Item number: 057066

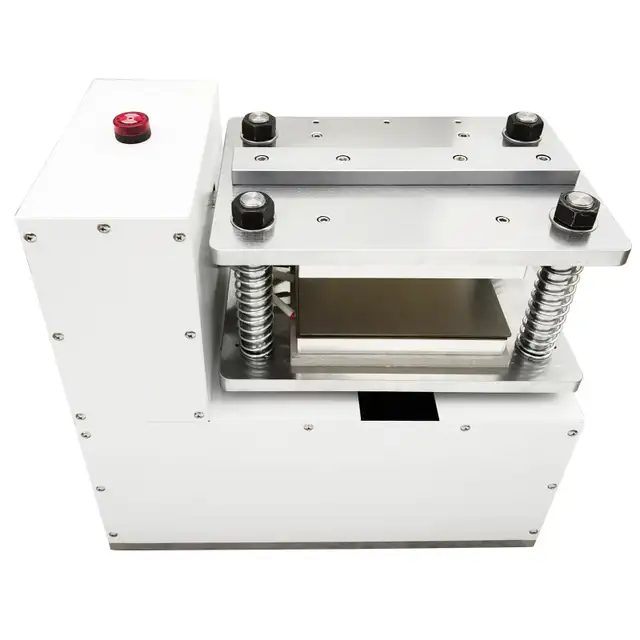

Desktop Flat Plate Vulcanizing Machine 50~350℃ Range Hydraulic Hot Pressing Vulcanizing Machine for Plastic, Rubber, and Silicone Product 110V 057066
-
Product Overview
This plate vulcanizing machine is specially designed for hot press molding of PVC, plastic, rubber and silicone products. The machine ensures the precision and efficiency of your manufacturing process with compact structure, precise temperature control, easy operation, safety and reliability.

Product Parameters
Voltage: AC110V
Power: 1500W
Temperature Range:
50~350℃ (independent temperature control for upper and lower parts)
Molding Technology: Hot Pressing
Timer:
Pressing time can be set with beep reminder
Hydraulic System: Yes

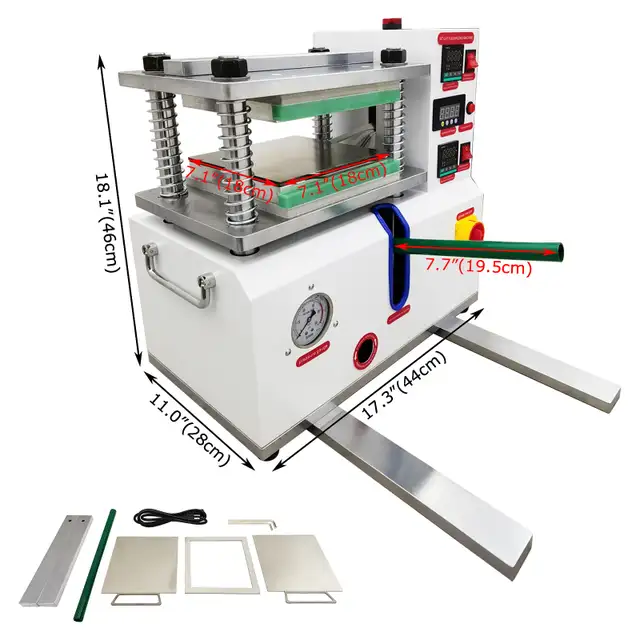

Heating Plate Size:
18 * 7.1 "* 7.1" (18 cm)
Inner Diameter Size:
5.9 "* 5.9" (15 * 15 cm)
Downward Pressing Stroke:
2.7 "(7 cm)
Hydraulic Pressure:
The maximum jack is 12 tons, but the manual operation of the jack can actually reach a maximum of 8 tons
Material Compatibility: PVC, Plastic, Rubber, Silicone
Package Size: 23.6"*15.4"*22.0" (60cm*39cm*56cm)
Net Weight/Gross Weight: 127.9lbs(58kg)/148.2lbs(67.2kg)

Product Features & Advantages

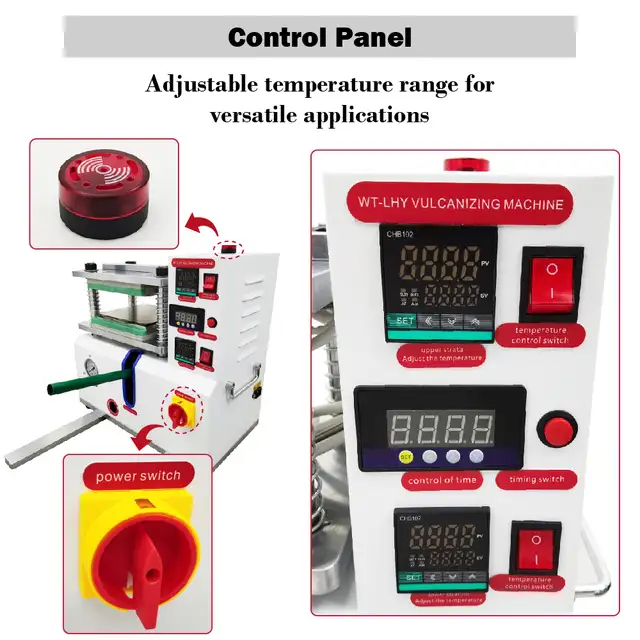

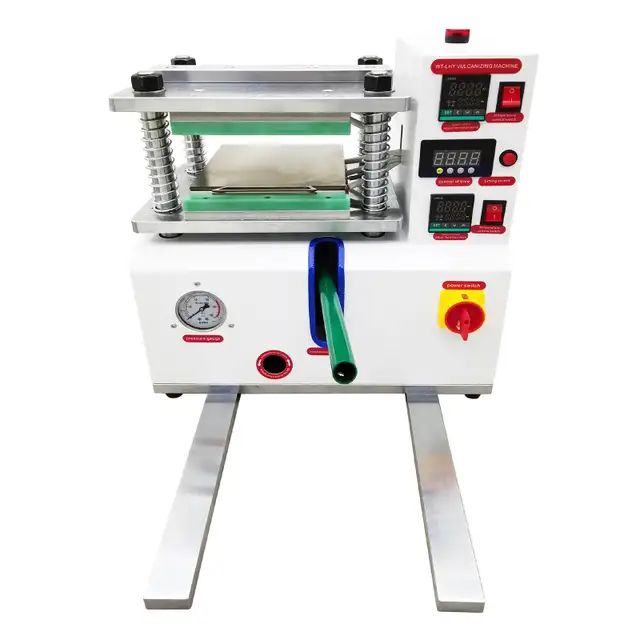

Control Panel
The control panel is intuitive and simple, you can set the working time and temperature, with timing function and automatic alarm, safe and convenient operation.

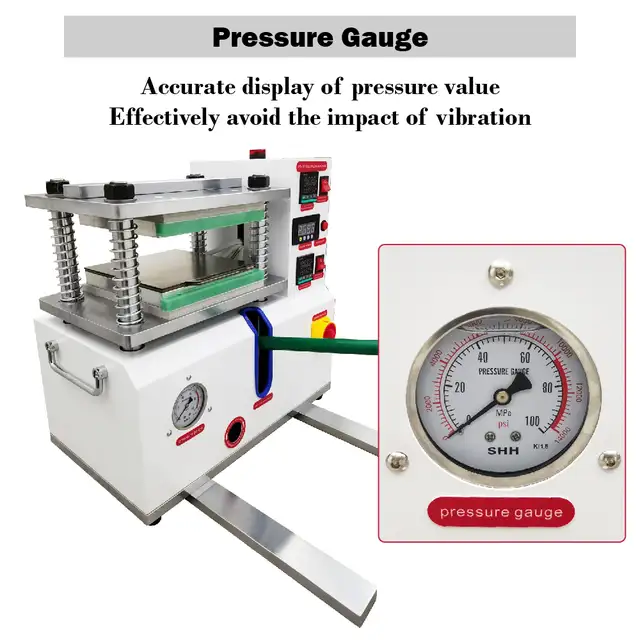

Pressure Gauge
Shockproof pressure gauge, reliable and durable, high accuracy, can clearly observe the pressure changes of the vulcanizing machine.

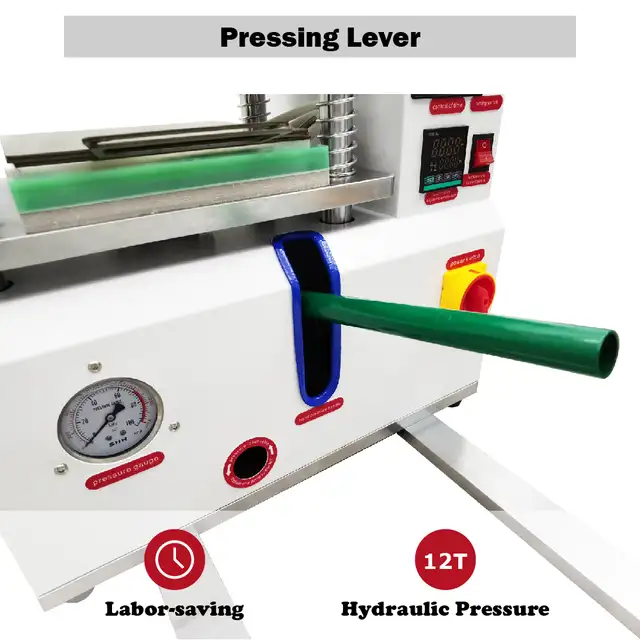

Pressing Level
Equipped with a reliable hydraulic system, press the long lever to operate, efficient and powerful operation. Achieve precise and consistent molding results with the hot pressing technology.

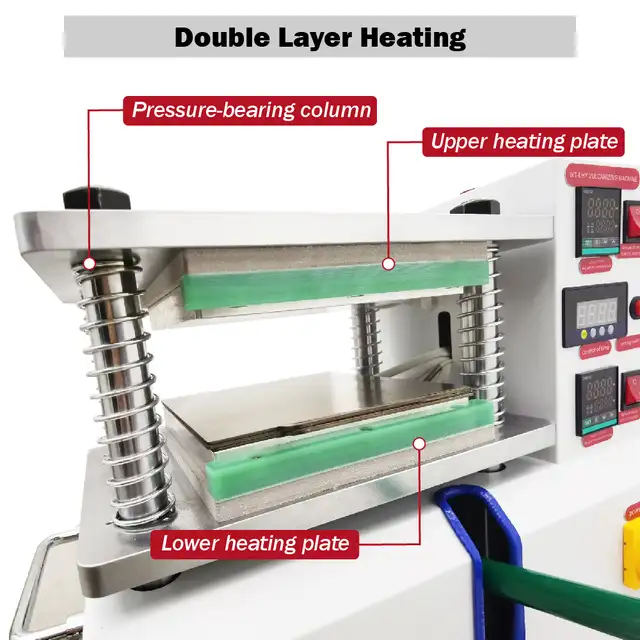

Double Layer Heating
Double heating, independent temperature control, automatic constant temperature, 50-350℃ can be set; Four solid pressure-bearing columns for more stable support.

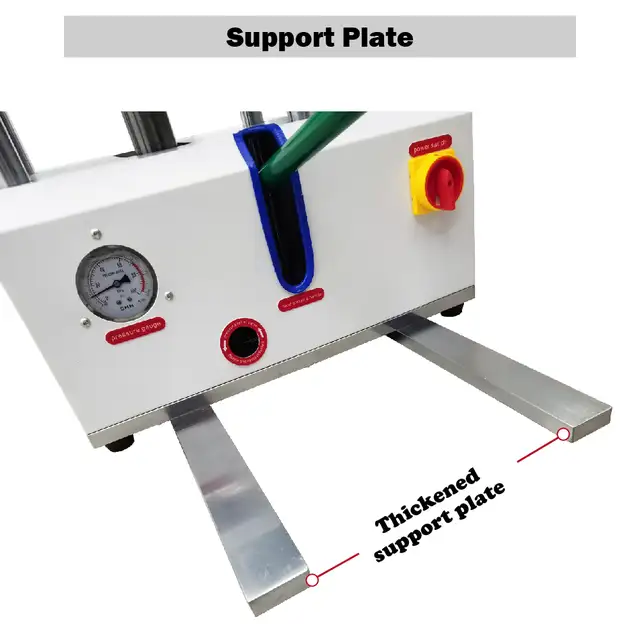

Support Plate
The material of the support plate is nickel-plated iron plate, which can provide good support. If you press down the lever too hard, it is easy to cause the center of gravity imbalance. It is removable and space saving when not in use.

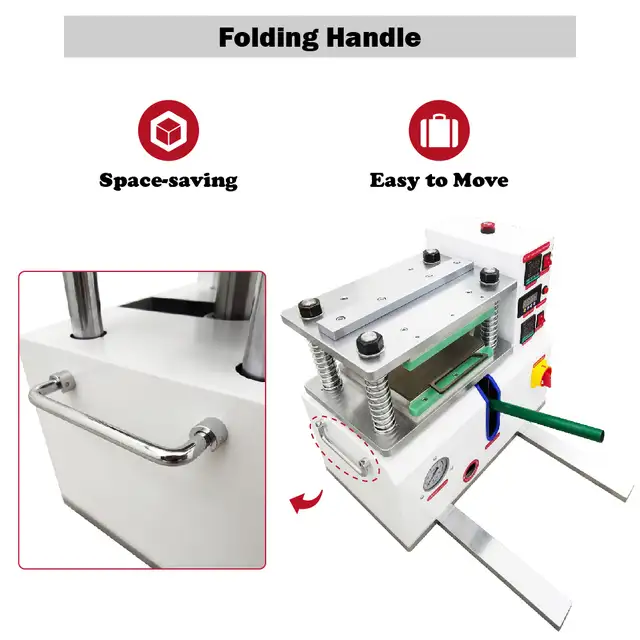

Folding Handle
The design of the folding handles takes full consideration of the user's experience and portability, and the handles can be folded up when not in use, thus saving space and avoiding accidental collision.

Item Included: 057066
Desktop Flat Plate Vulcanizing Machine *1
Accessory Kit *1
