Item number: 056192
-

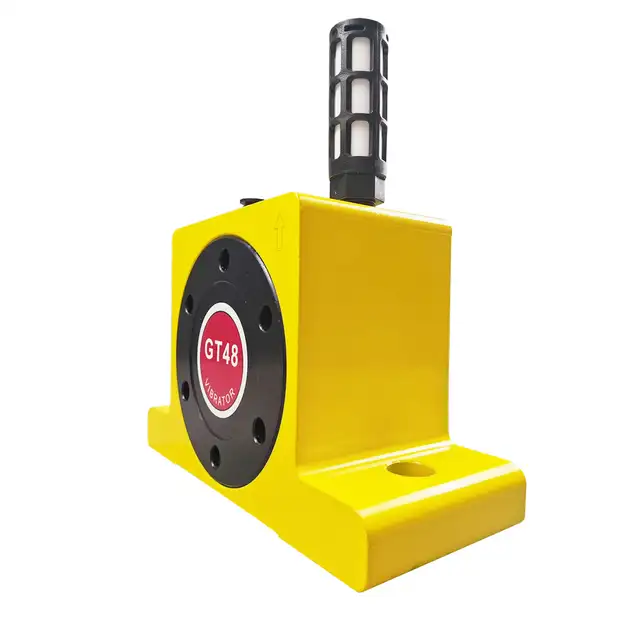

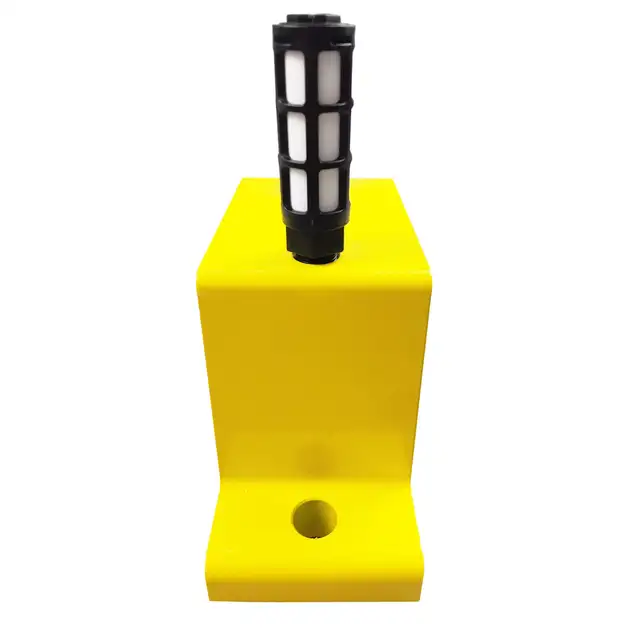

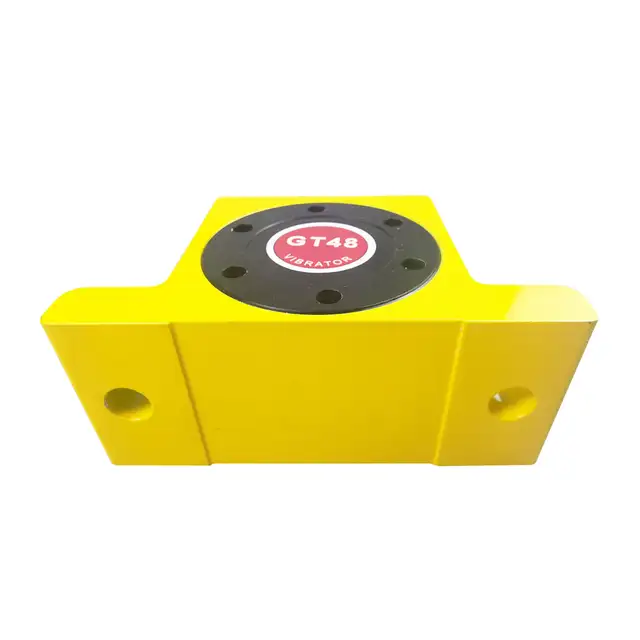

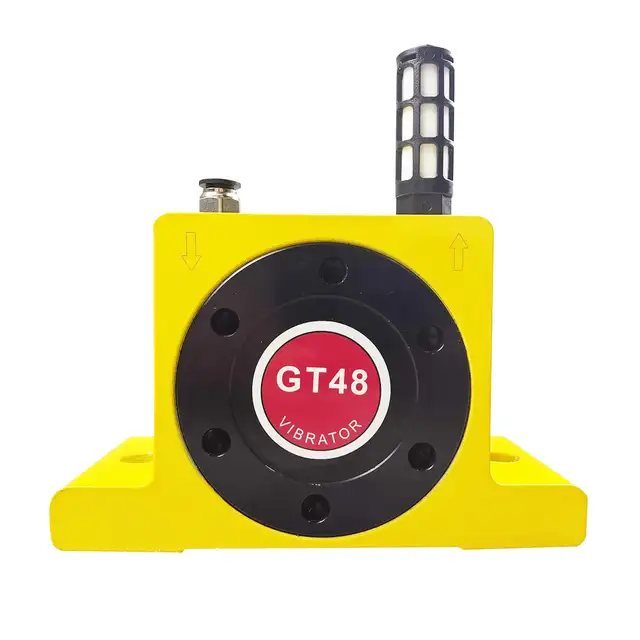

GT48 Pneumatic Vibrators Pneumatic Air Turbo Vibrator with Muffler 0.2-0.6MPa Gear Vibrator Air Turbine Vibrators Used for Material Conveying and Vibration 056192

Product Overview
The eccentric copper counterweight is installed in the gear, and the air entering the air inlet impinges on the gear to produce thrust force, which makes the gear rotate. During rotation, the centrifugal force of the eccentric counterweight produces vibration, and the gear is driven by the bearing.The vibration intensity can be adjusted according to the air pressure. It is widely used in material conveying, vibration screening, hopper vibration and other industries.

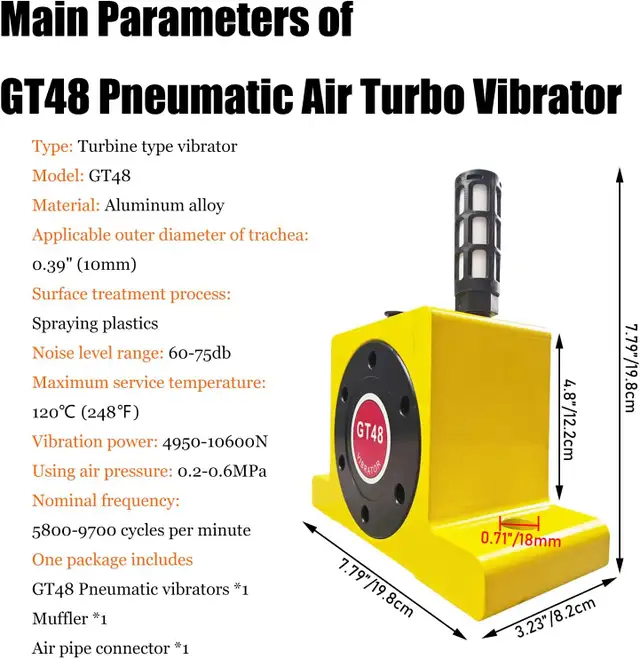

Product Parameters
Type: Turbine type vibrator
Model: GT48
Material: Aluminum alloy
Applicable outer diameter of trachea: 0.39"(10mm)
Surface treatment process: Spraying plastics
Color: Yellow
Noise level range: 60-75db
Maximum service temperature: 120℃
Vibration power: 4950N-10600N
Using air pressure: 0.2MPa-0.6MPa
Nominal frequency: 5800-9700 cycles per minute
Package size: 9.4"*6.7"*5.1"(24cm*17cm*13cm)
Net weight/Gross weight: 7.4LB(3.35kg)/8.0LB(3.65kg)

Product Features & Advantages
- Made of wrought aluminum alloy, the surface is sprayed and oxidized at high temperature, strong and durable against corrosion.
- Containing special grease, low noise, stable performance, long life.
- The vibration amplitude and frequency can be changed by adjusting the air pressure.Fast start and stop.
- High quality bearings, low friction resistance, high speed, fast heat dissipation.
- The thread is smooth without burr, and the base is provided with fixed mounting hole for easy mounting.

Item Included: 056192

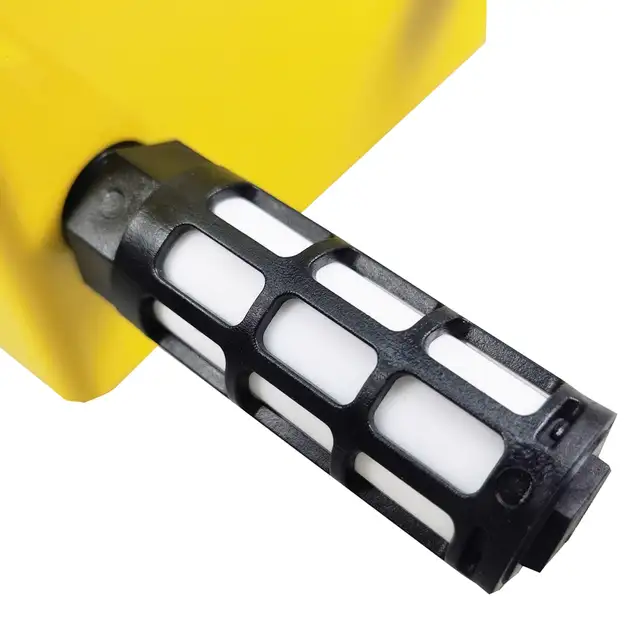

GT48 Pneumatic vibrators *1 Muffler *1 Air pipe connector *1
