Item number: 056194

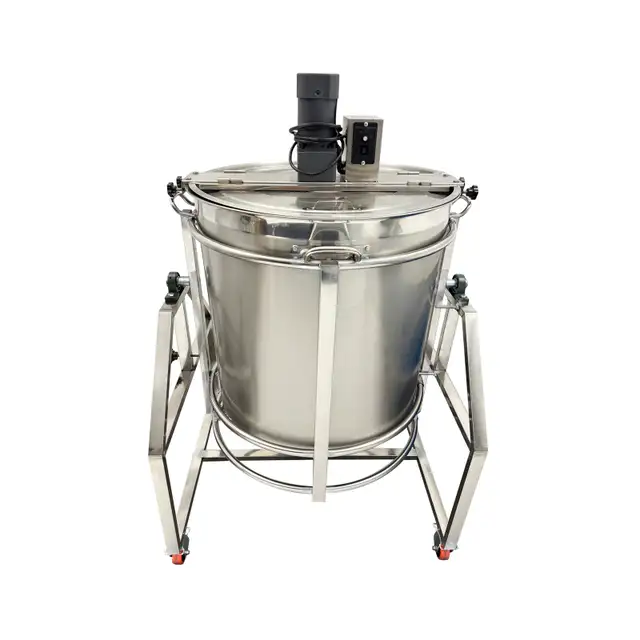

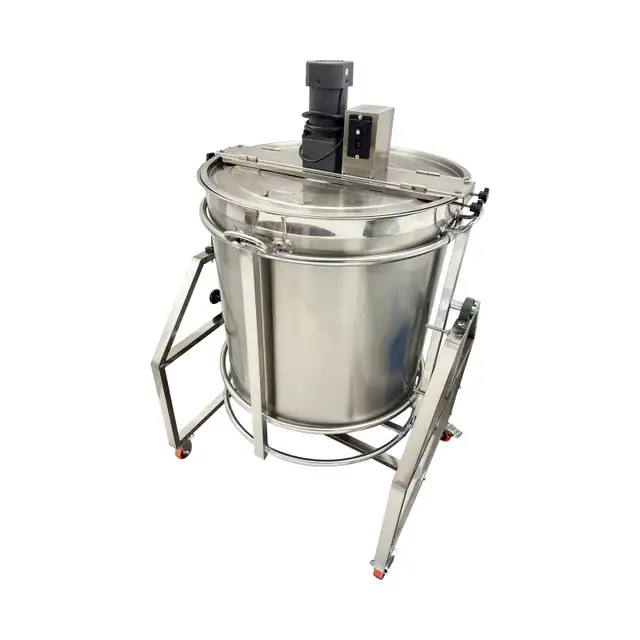

Stainless Steel 50L Food Mixer Commercial Sauce Heat Blender 13.2gal Hand Tilt LPG and Electric Stirrer 110V 056194
-

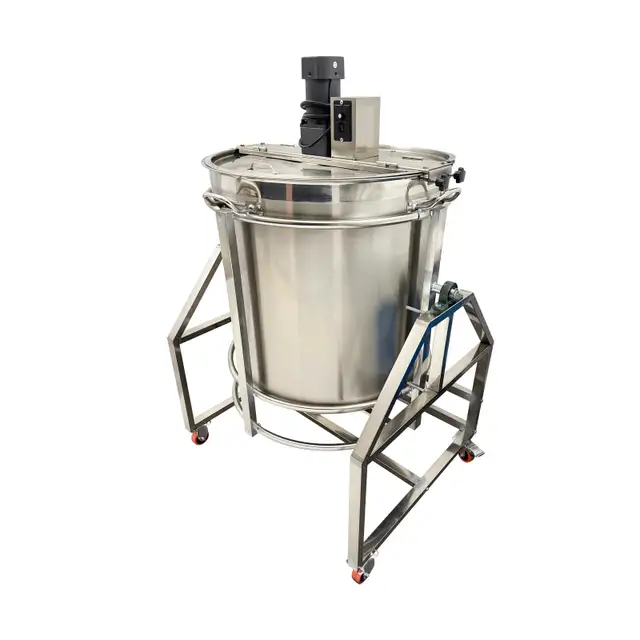

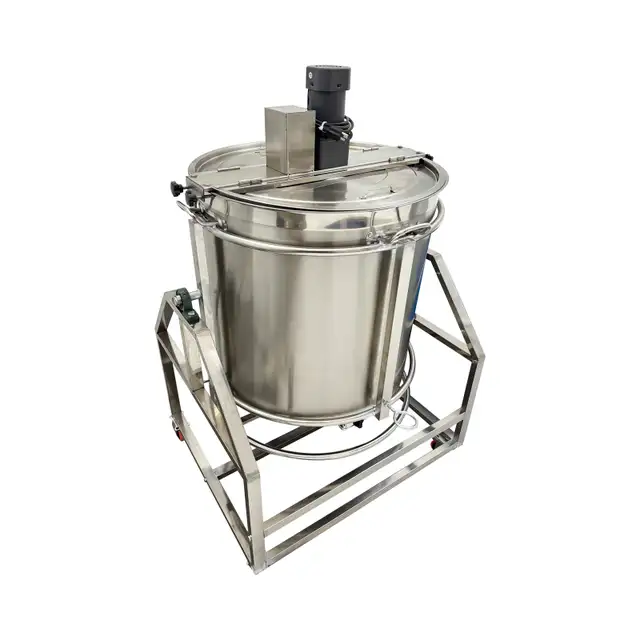

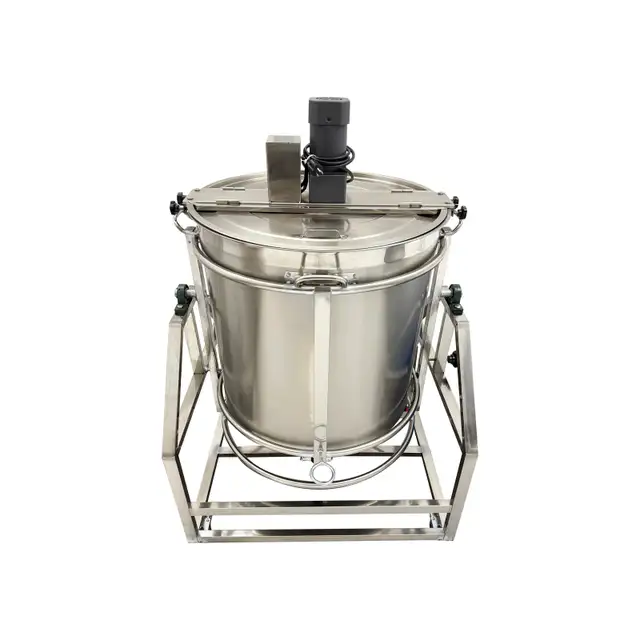

Product Overview
This electric Natural Gas heating stirrer is composed of three parts: bottom rotating frame, stainless steel stirring bucket and stirring motor, easy to install; It has the characteristics of high heating efficiency, fast heating speed, uniform heating, energy saving, safety and reliability, and is widely used in the processing of all kinds of food, and can also be used in large restaurants or cantons to make soup, porridge, hot pot and other food processing, which can greatly improve the quality of food processing, shorten the time and save manpower.

Product Parameters
Voltage: AC110V
Power: 500W
Motor speed: 0-100rpm
Suitable fuel: Natural Gas
The inner diameter of the Natural Gas hose: 0.39"(10mm)
Youdaoplaceholder0 tank capacity: 25.9gal(98L)
Recommended maximum mixing capacity(70%): 69L(18.2us gal)
Mixing tank material: SUS304 stainless steel

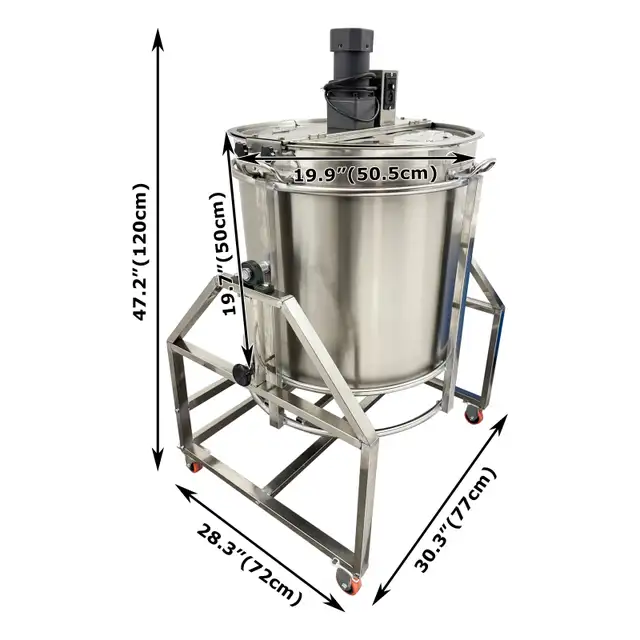

Package size: 27.2"*23.6"*41.3"(69cm*60cm*105cm)
Net weight/Gross weight: 86.0LB(39kg)/136.7LB(62kg)

Operational Safety Precautions!!!
I. Pre-Operation Preparation

Location & Installation:
●Place the machine on a stable, level surface, away from flammable materials. Ensure the gas hose and valve are correctly connected, without cracks or wear. Check for gas leaks using a leak detection solution (e.g., soapy water).
●Component Check: Confirm that the mixing paddles are fully installed and tightened. Rotate the paddles manually several times to ensure they move freely. Check the tilting mechanism for smooth operation.
●Power Connection: Plug the stirring motor's power cord into a properly grounded outlet.

II. Safety During Operation

Start-up Sequence:
●The correct sequence is: First, start the top stirring motor. Once the paddles are running smoothly without load, then ignite the gas to begin heating. This prevents materials from scorching locally at the bottom.

Burn Prevention:
●During operation, the entire stainless steel pot, lid, escaping steam, and metal frame become EXTREMELY HOT.
●Operators must always wear long sleeves, safety goggles, and professional heat-resistant gloves.
●NEVER touch any metal working parts with bare hands during or after operation until the unit is fully cooled.

Stirring & Monitoring:
●ABSOLUTELY DO NOT put hands, spoons, or any tools into the pot while the mixing paddles are rotating to avoid serious injury.
●Do not fill the pot beyond 70% of its capacity to prevent boil-over.
●Continuously monitor the gas flame and machine operation. If any abnormality occurs (e.g., unusual odor or noise), immediately turn off the gas and power.

III. Discharging, Shutdown & Cleaning

Tilting to Discharge:
●Always wear heat-resistant gloves before tilting.
●Operate the tilting handle slowly and deliberately. Keep your body clear of the pouring path to avoid being splashed by hot oil or materials.
●After discharging, always return and secure the pot to its level home position.

Shutdown Sequence:
●After cooking, first turn off the gas valve. Allow the stirring motor to continue running for a few minutes to help dissipate heat evenly, then turn off the motor power.

Cleaning & Maintenance:
●Ensure the unit has cooled down completely to room temperature before cleaning.
●Never spray water directly onto the motor, gas valves, or electrical cabinet. Use a damp cloth for cleaning.
●Regularly check and lubricate the moving parts of the tilting mechanism to ensure smooth and reliable operation.


Product Features & Advantages

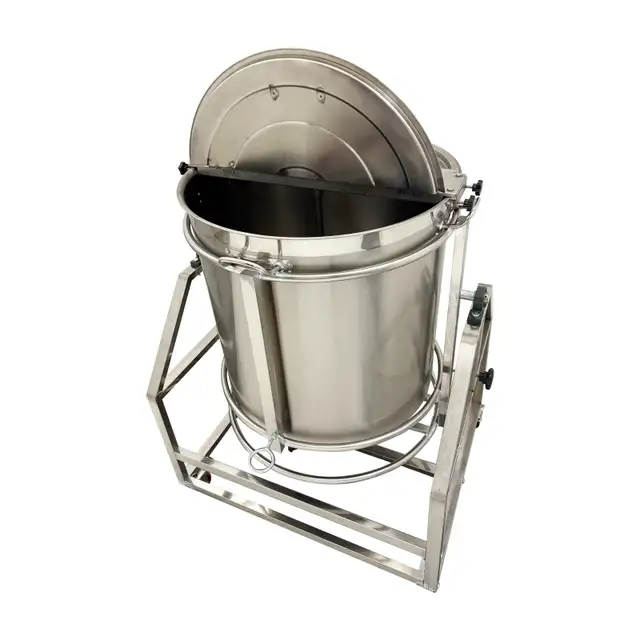

Half-open Lid Design
The top features a 50% openable stainless steel cover, enabling mid-process ingredient addition (e.g., spice, oil) and real-time cooking observation without fully removing the lid, preventing heat loss.

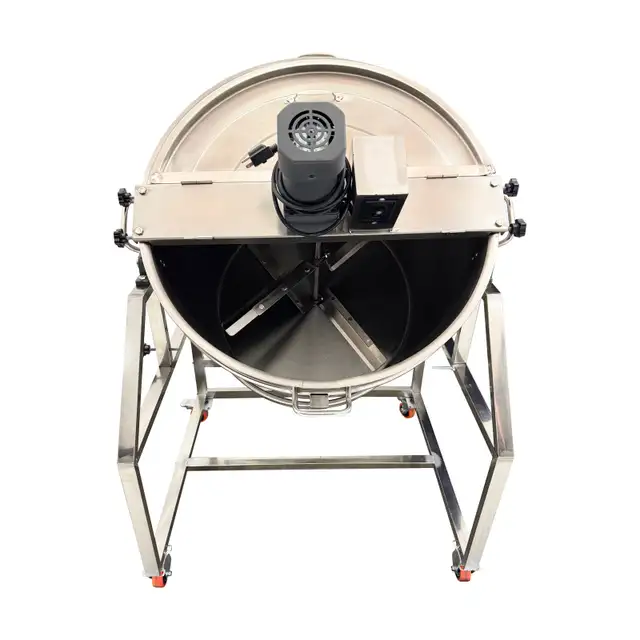

Stirring Blade
The stirring blade is constructed from 304 stainless steel. Its scientific and rational structure ensures optimal mixing performance. The unique spring design ensures that the blade maintains close contact with the container bottom.

Speed Controller
Features a knob-operated speed control system that enables precise stirring speed adjustment (0-100 RPM) to accommodate different ingredients. Simply rotate the switch to change speeds effortlessly.

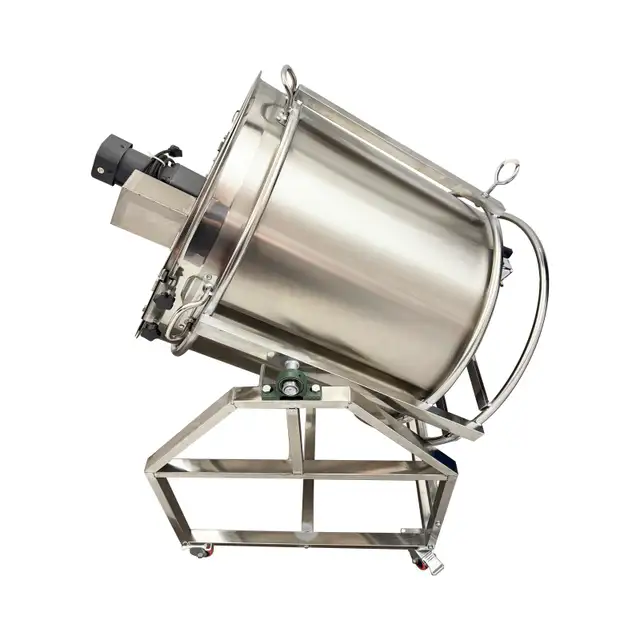

180° Tiltable Design
The pot body features full 180° tilting capability for complete material discharge and easy cleaning. Reinforced connections between the pot and frame ensure stable operation without wobbling during tilting, ideal for rapid discharge of high-viscosity sauces.

Fixed Device
The machine side is designed with a fixing device, which secures the mixing tank to the frame by rotating the handwheel, thus fixing the mixing tank with convenient operation.

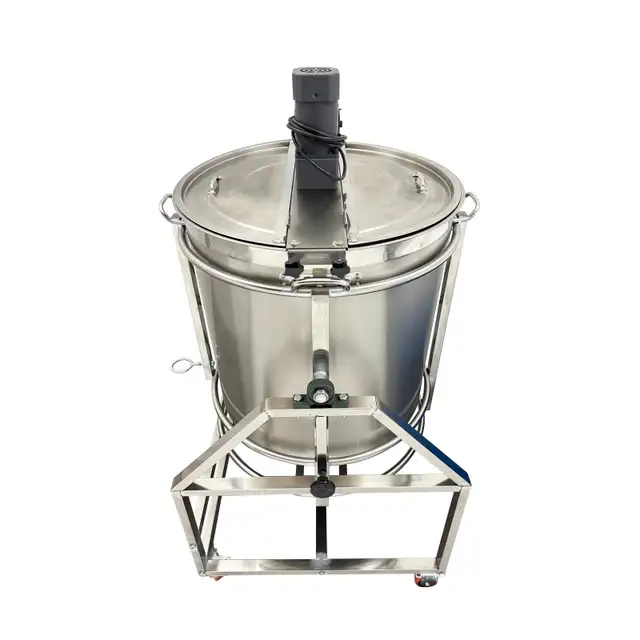

Revolving Frame
The base adopts a rotating frame, which allows 180° rotation when the locking device is released. The frame features a ring handle for ergonomic pouring.


Motor
Premium 500W pure copper brush DC motor, featuring large starting torque, fast response speed, and wide speed regulation range; capable of continuous long-term operation; simple structure with easy maintenance.

Swivel Caster
Equipped with four universal movable casters made of wear-resistant plastic material, the system allows flexible movement and instant fixation by gently stepping on the caster pedal.

Side-Axis Locking Device
The rotary knob locks are positioned on the side of the equipment. By rotating the locking mechanism, it securely fixes the mixer in place, preventing wobbling for stable operation while enabling quick disassembly and cleaning.

- Both sides of the stirring barrel are designed with handles for easy installation.
- All food-contact components (including the stirring barrel and blades) are constructed from food-grade SUS304 stainless steel, ensuring safety and hygiene.
- The thickened 304 stainless steel drive shaft resists deformation, guaranteeing smooth mixing operation.
- The stirring blade adopts the upper and lower double-layer design, and the height of the stirring blade can be adjusted, which can be flexibly applied to the mixing of different food materials, and the mixing effect is better and the application range is wider.
- Note: This product is exclusively compatible with liquefied petroleum gas (LPG). For alternative fuel options, please contact us for customization.

Item Included(056194)
Mixer *1
