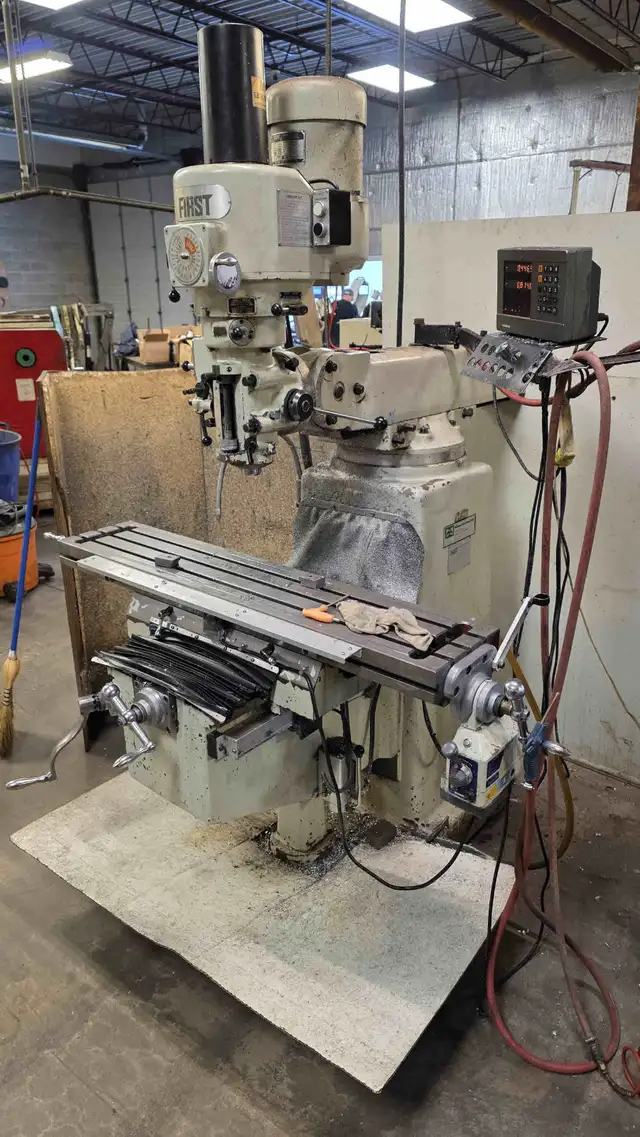

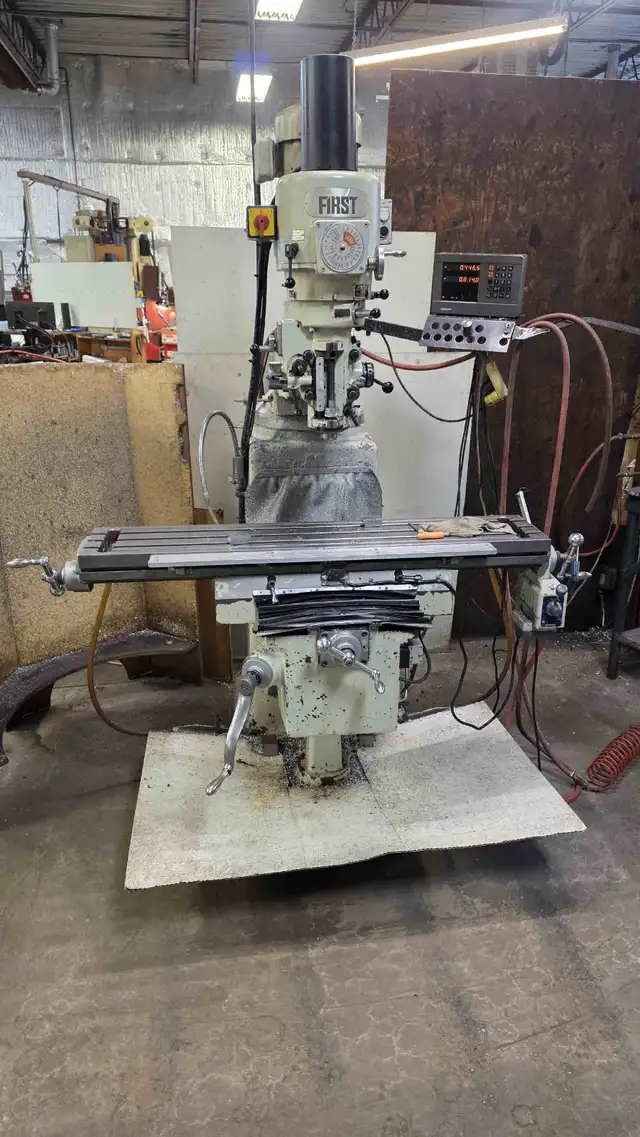

Here Is A First LC-185VS Vertical Milling Machine We Have In Stock,
If You Require Anymore Photo`s & Info Please Call Or E-mail Us.

Specifications:

Model - LC-185VS
Year - 1995

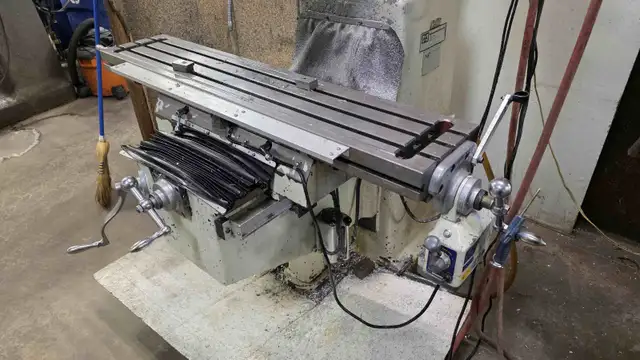

Table Size - 10” x 50”
Table Travel Left/Right - 29”
Table Travel Front/Back - 16”
Table Travel Up/Down - 16”
Quill Travel - 4.7”
Spindle Taper - R8
Spindle Speeds (Variable) - 60 to 4500 RPM

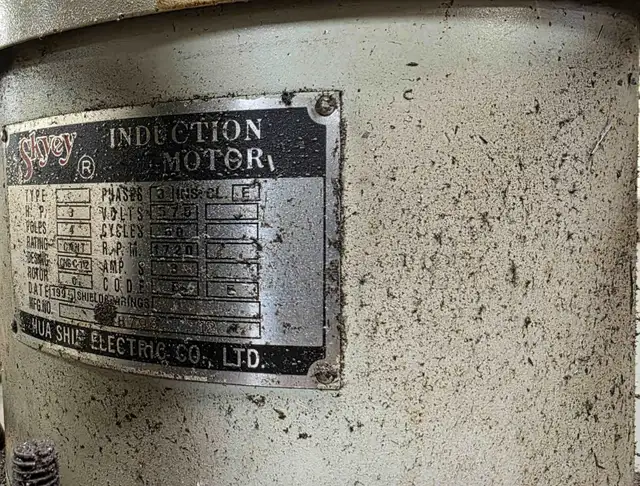

Spindle Motor - 3 HP
Electrics - 575V/3PH/60HZ
Made In - Taiwan
Approximate Weight - 3,500 LBS
Approximate Overall Dimension - 67”L x 67”W x 86”H

Equipped With:

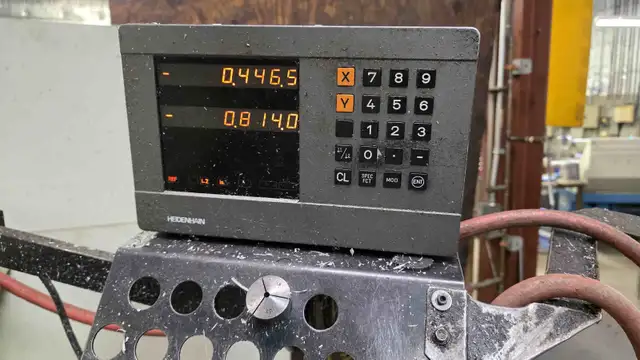

Heidenhain Two Axis Digital Readout

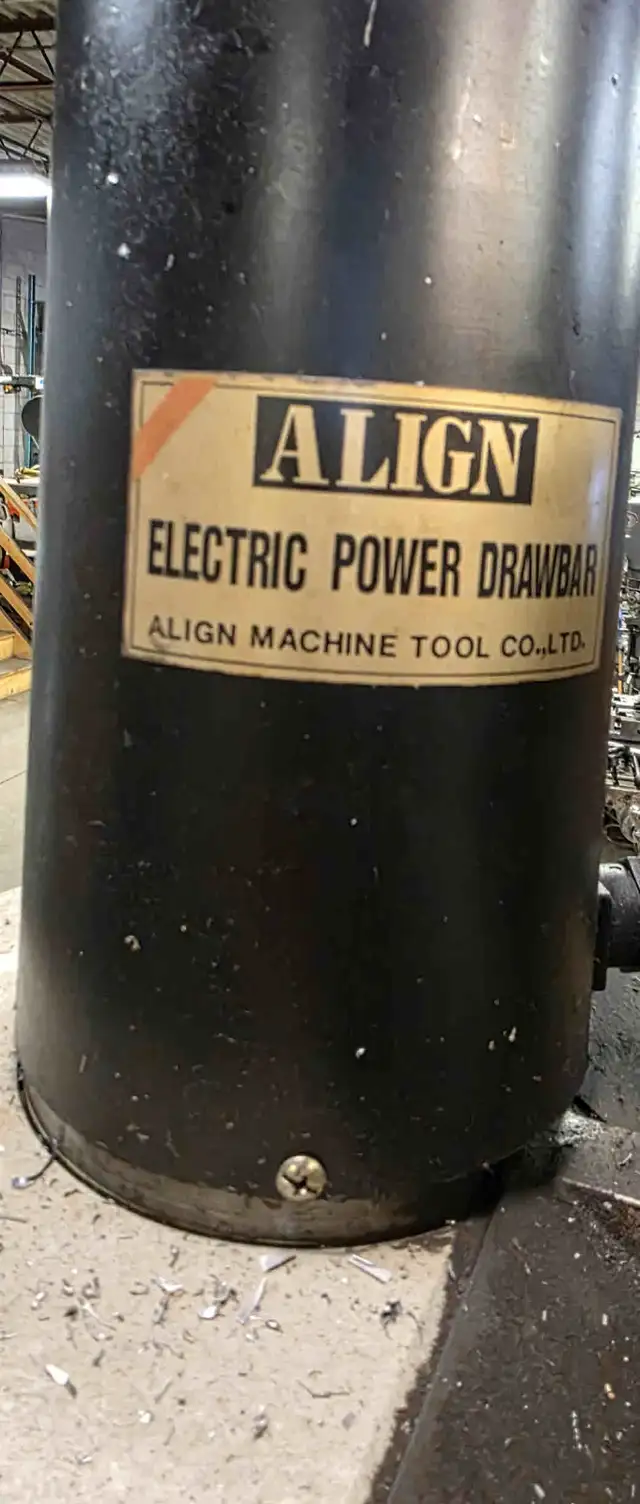

Align Electric Power Draw Bar
Variable Spindle Speeds
One Shot Lubrication
Rapid Cross Feed Attachment Does Not Function
