Model: AHB600
Features

Specifications

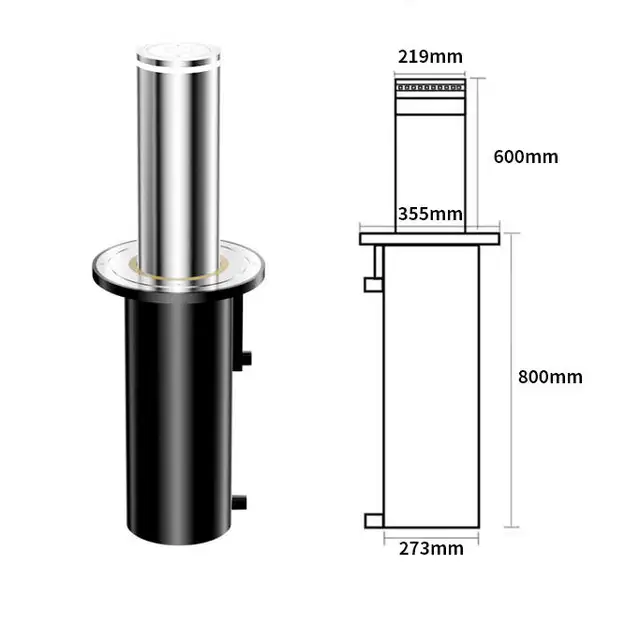

Bollard

Material:Stainless steel304
Surface Treatment: satin brush
Wall Thickness: 6mm
Rising Height: 600mm
Diameter: 219mm
Base Plate: D355mm*T8mm
Buried Height: 800mm
Buried Sleeve Size: D273*T3mm
Movement Mechanism: electric-hydraulic
With led light
With 50mm width reflective tape
Operating Voltage: single phase 220V
Motor Power: 330W
Rise And Fall Speed: 2-6S
Working Humidity: 95% non-condensing
Working Temperature: -45°C-75°C
Protection Level: IP68

Control Box

Material: hot galvanized steel
Size: 600*500*170mm
2 pcs of Remote Controls

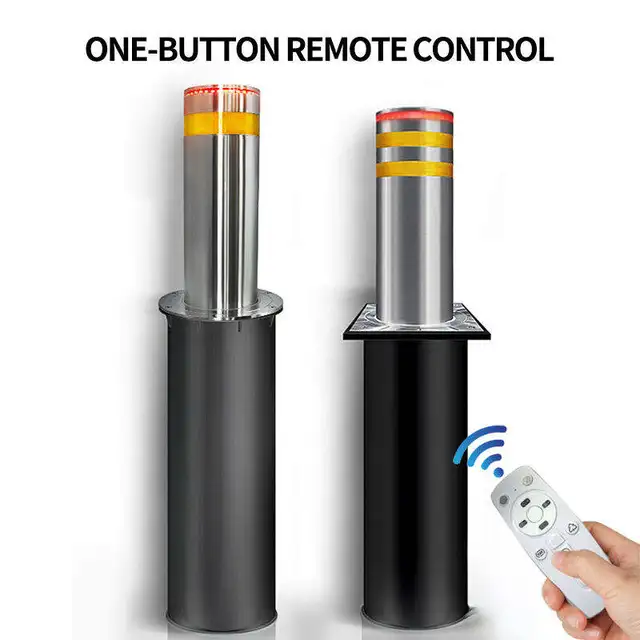

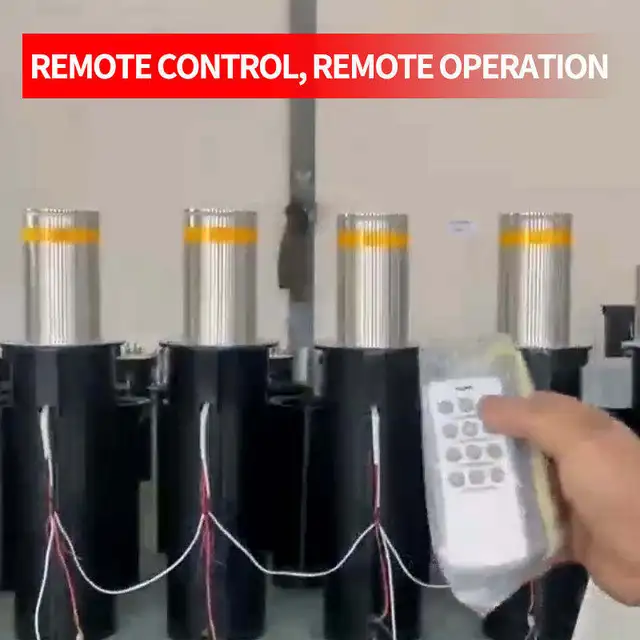

Control way: Remote control
Manual Button Inside
With emergency button to make raised
bollard go down one time when power failure.
1 set control 8 bollards at the same place

Warranty

Warranty Terms and Conditions (EN)
Conditions de Garantie (FR)

Packing Details

Bollard （4pcs）

Dimensions: 30*30*37 inches
Weight: 656 lbs

Control Box

Dimensions: 26*22*12 inches
Weight: 45 lbs
