Item Number: 022888

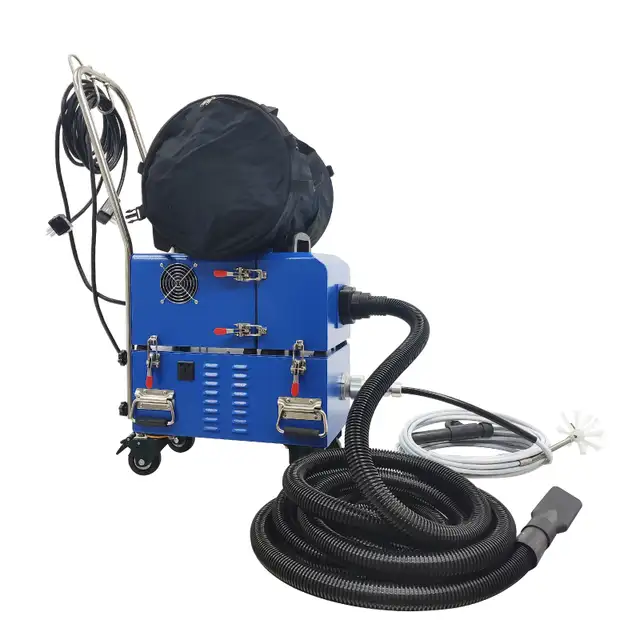

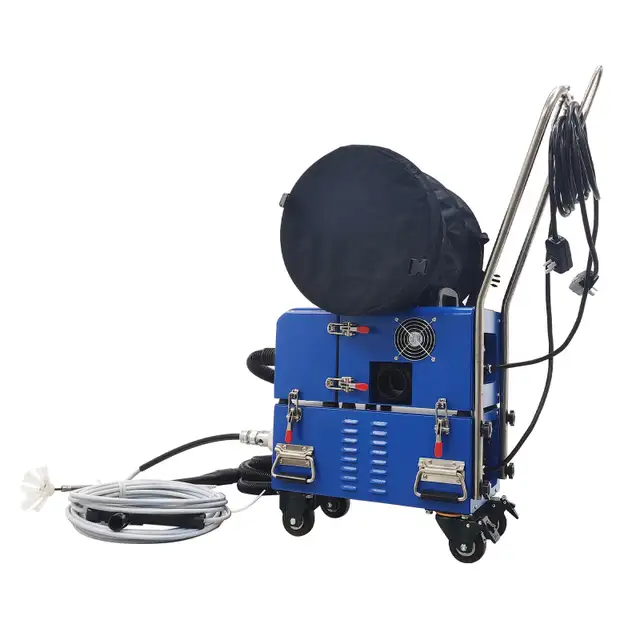

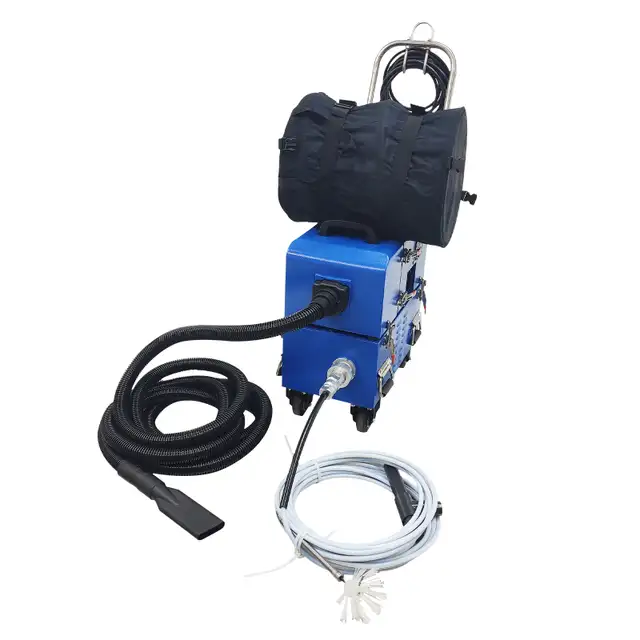

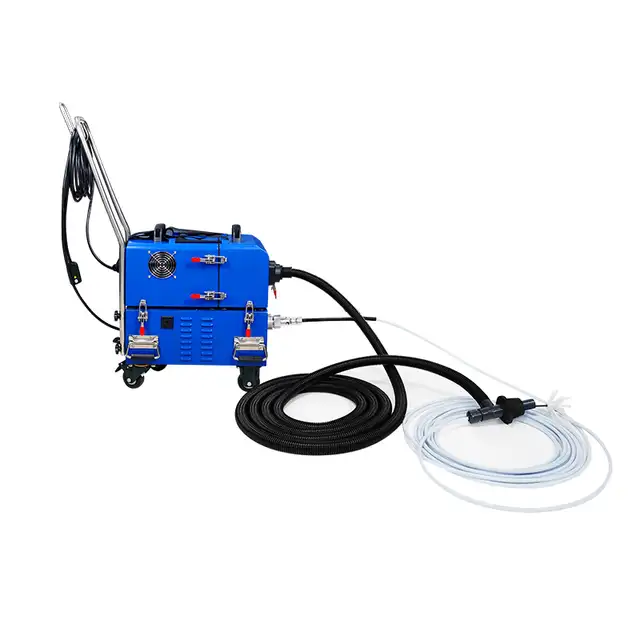

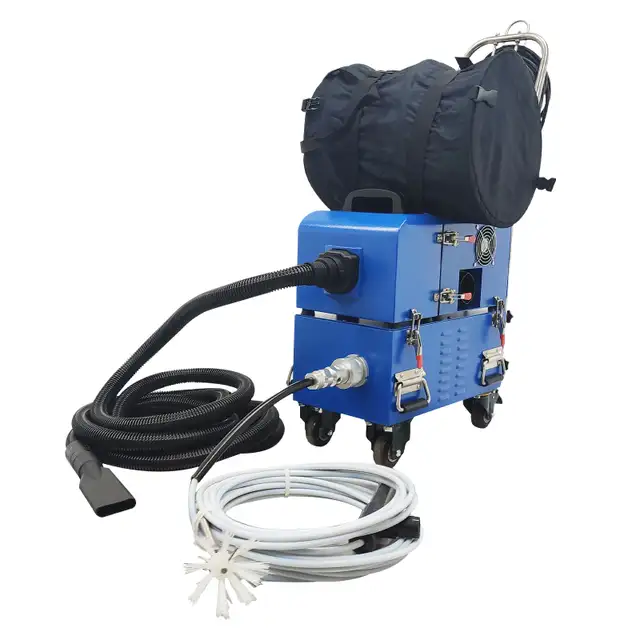

The air pipe cleaning machine is a special device for cleaning central air conditioner pipes and is mainly used for cleaning dust and dirt in the pipes away. The brush is driven to rotate through a soft shaft to conduct dry cleaning on the pipes, the machine works in cooperation with a high-power vacuum cleaner to absorb away the dust and dirt on the inner walls of the pipes, and therefore the purpose of cleaning the inner walls of the pipes is achieved.

Parameters
Voltage: 220V (A transformer is given as a present along with the product and can be used for both household 110V and industrial 220V power.)
Power：1600W
Applicable pipe diameter：50-200mm
Length of the soft shaft：15 meters
Diameter of the soft shaft：6mm
Rotating speed：0-1400r/min (step less speed regulation)
Air volume：1000m3/h
Length of the dust absorption pipe：6 meters
Material of the dust absorption pipe：EVA corrugated pipe

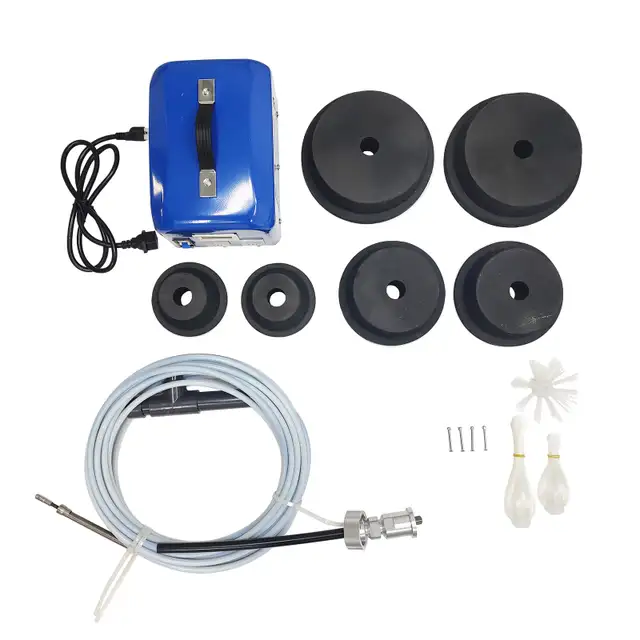

Pipe plug：3 pieces（110mm/150mm/20mm）
Brush：3 pieces（100mm/200mm/300mm）

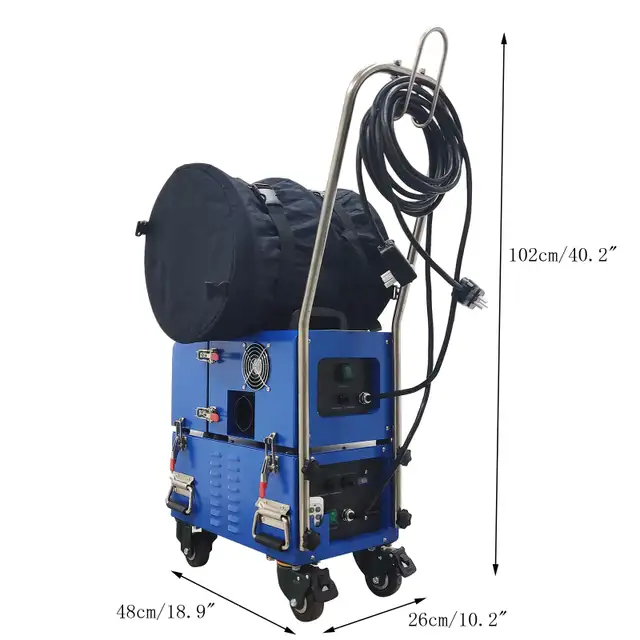

Product size：48*26*102cm

Notice
1.In order to ensure the transportation safety of the product, no batteries are installed in the remote controller, and the customers need to prepare the batteries by themselves. The type of batteries: 23A12V
2.Before powering on the equipment, ensure that the flexible shaft is fully extended and do not use it in a wrapped state to prevent internal breakage and damage of the flexible shaft.

Features
1. It can continuously pass through three right-angle bends and freely move inside the air pipe, and cleaning is free of dead corners.
2. The rotating speed is adjustable, 0-1400r/min stepless variable frequency speed regulation.
3. Integration of sweeping and suction, the falling dust can be sucked into the dust collection bag while cleaning is conducted, and cleaning and dust suction can be carried out simultaneously, so that the efficiency is improved.
4. The machine has a dust blowing function, the dust blowing mode can be chosen according to working conditions, the wind power is high, and the speed is high.
5. Split design, the dust suction filtration system and the cleaning system can be controlled separately and can be used independently.
6. Forward and reverse rotation operation, forward and reverse rotation can be adjusted according to the operating requirements so as to achieve cleaning without dead corners.
7. Large diameter of the cleaned pipe, the pipes with diameter of 50-200mm can be cleaned.

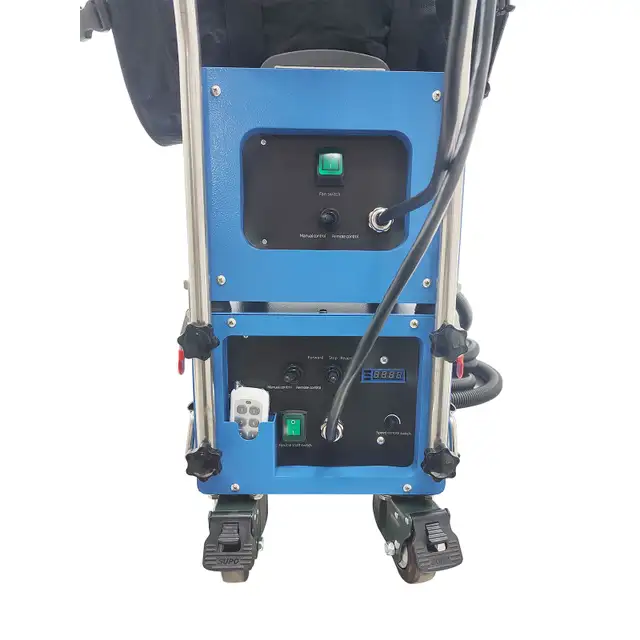

8. Dual modes of manual control and remote control, remote control can be conducted, and single person operation can be achieved.

Operation Method
1. Connect one end of the flexible shaft to the interface of the main unit.
2. Connect one end of the vacuum tube to the interface of the main unit.
3. Thread the flexible shaft through the other end of the vacuum tube and install the cleaning brush.
4. Place the cleaning brush into the interior of the pipe and seal the pipe opening.
5. Turn on the main power switch and turn on the vacuum and flexible shaft switches simultaneously.
6. Select the manual or remote control mode as needed. The remote controller can control the on/off function of both the flexible shaft and vacuum switches simultaneously.
7. Adjust the forward or reverse rotation direction as needed.
8. Rotate the speed knob to adjust the brush speed.

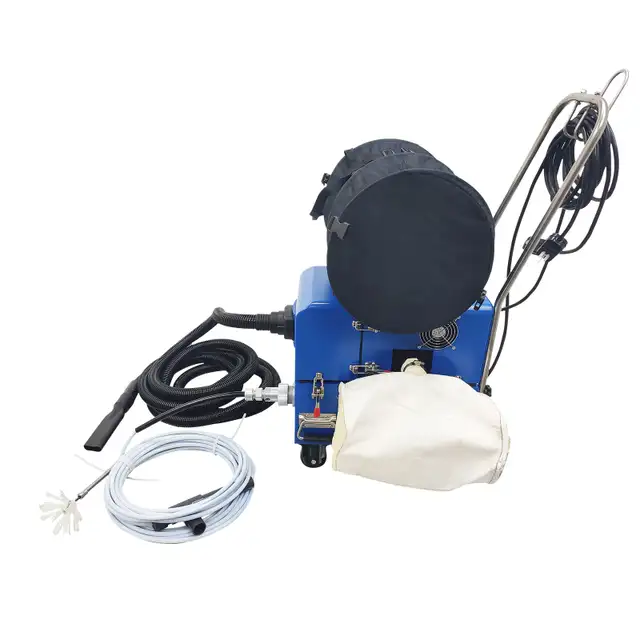

9. After using the machine, take down the dust collection box and remove the dust.
