Item number: 145010

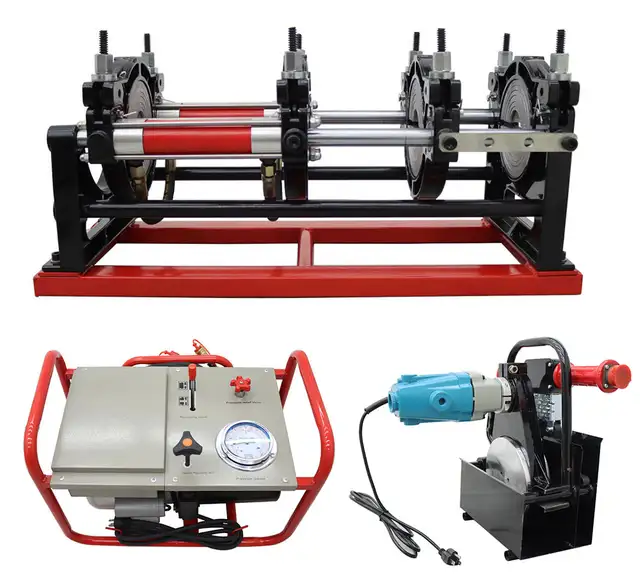

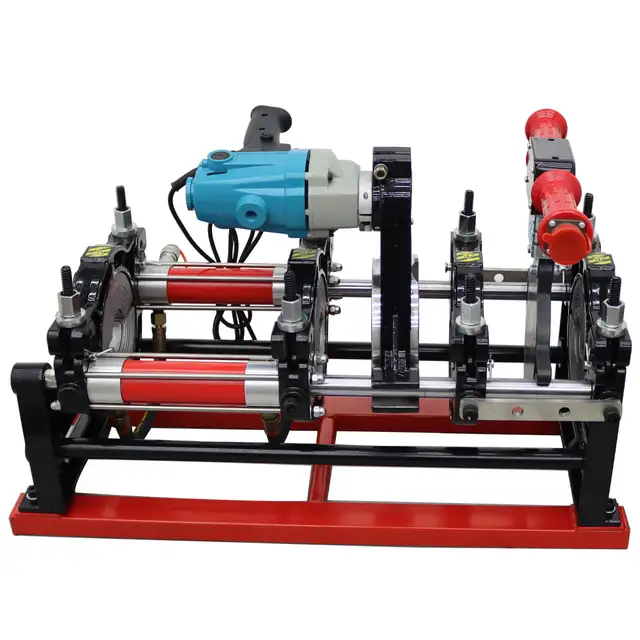

2.48-6.30inch Pipe Welding Machine Electric Tube Butt Fusion Equipment for PE PP PB PVDF PPR with Hydraulic Station 145010
-
Multifunctional hydraulic butt welding machine, suitable for a variety of hot melt pipe fittings, PE PB PPR, etc. Simple operation, solid welding, intelligent, digital temperature control. Combined operation, perfect function, simple time saving and labor saving.

Specifications:
Model No. 2.48"-6.30" (63-160mm) 4 rings
Materials Aluminum alloy casting, 45# steel
Welding level (Φ, mm) outer dia 2.48 "(63 mm), 2.95" (75 mm), 3.54 (90), "4.33" (110 mm), 1.92 "(125 mm), 5.51" (140 mm), 6.30" (160mm)
Docking deviation ≤0.3mm
Voltage 110V
Power of Heater 1KW
Power of Milling Cutter 0.85KW

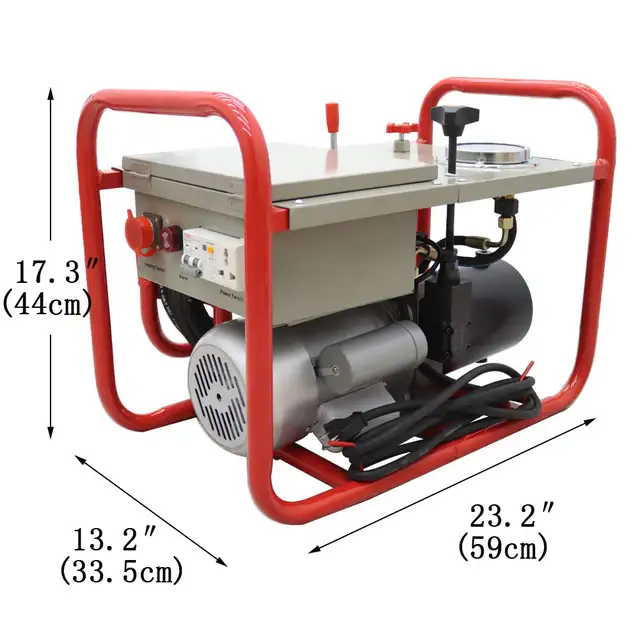

Power of Hydraulic Station 0.75KW
Pressure adjustable range 0-6Mpa
Working temperature 0-300°c
Temperature deviation ±5°c
Environment temperature -5-40°c
Time required to reach soldering temperature <20min
Materials can be welded PE PPR PB PVDF
Package Size Package 1:33*18*13inch
Package 2:29*25*20inch

Details:

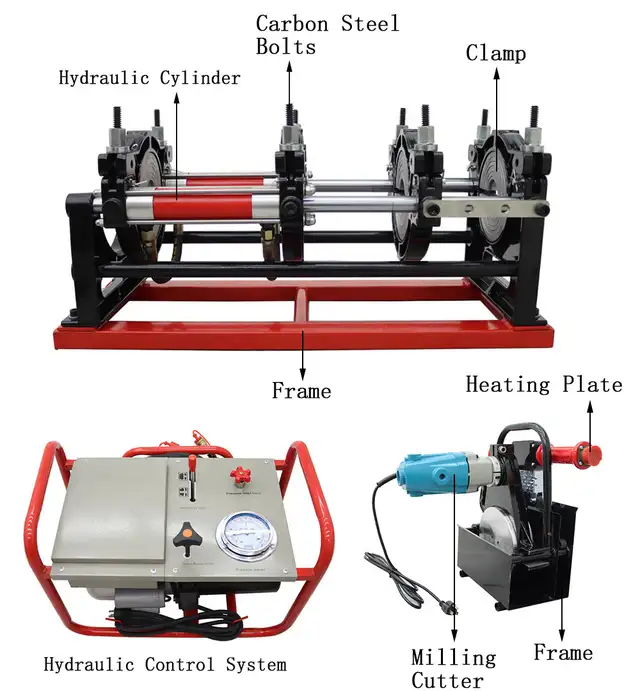

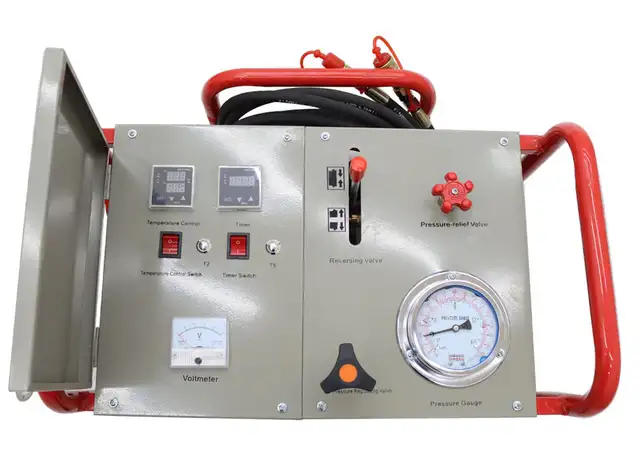

01 Multifunctional hydraulic control system,timing temperature control, random adjustment,digital clear, clear at a glance,multifunctional operation,save time and effort.
02 Hydraulic cylinder control, with quick joint, simple operation, save time and effort.

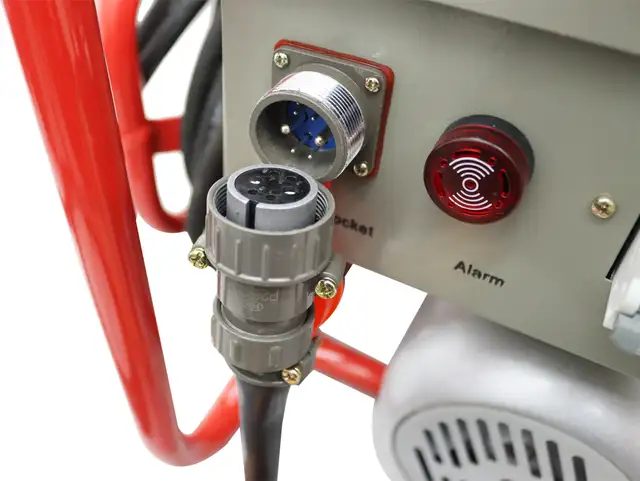

03 Industrial aviation plug,transmission is more stable, more durable.
04 Carbon steel bolts are more tightly connected.

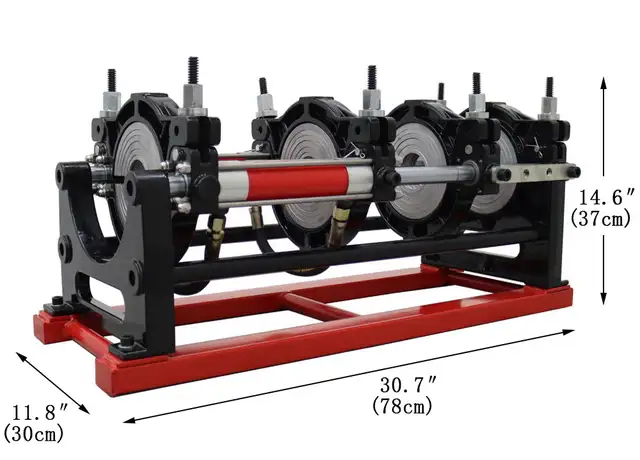

05 The adjustable widening and thickening clamp makes the pipe more firmly fixed and prevents the pipe from shifting during welding pressure.
06 Wider and thicker frame, better bearing capacity,more stable.

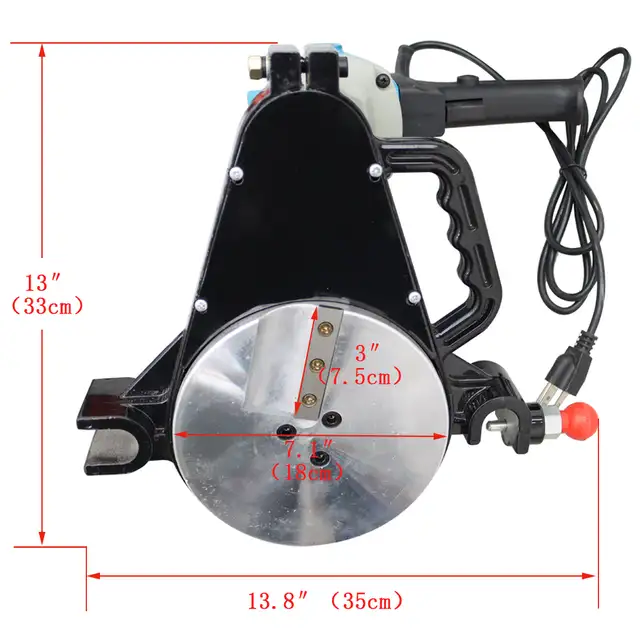

07 With high-power motor, the cutting is more smooth and the welding is more convenient.

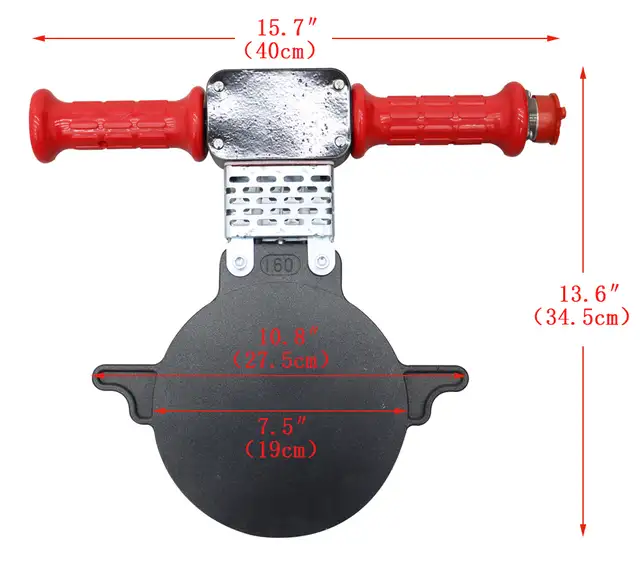

08 Anti-dip heating plate,uniform heat conduction,anti-slip and anti-electric handle,fast connector,good performance,long life.
09 The support of the heating plate and milling cutter can be placed after use to prevent
scalding.

Feature:
Multifunctional hydraulic control system,timing temperature control, random adjustment, digital clear clear at a glance, multifunctional operation, save time and effort.
Hydraulic cylinder control, with quick joint, simple operation, save time and effort.
Industrial aviation plug, transmission is more stable, more durable.
Carbon steel bolts are more tightly connected.
5. The adjustable widening and thickening clamp makes the pipe more firmly fixed and prevents the pipe from shifting during welding pressure.
Wider and thicker frame, better bearing capacity, more stable.
With high-power motor, the cutting is more smooth and the welding is more convenient.
8. The support of the heating plate and milling cutter can be placed after use to prevent scalding.


Item Included: 145010
1*Hydraulic Butt Fushion Welding Machine 145010
