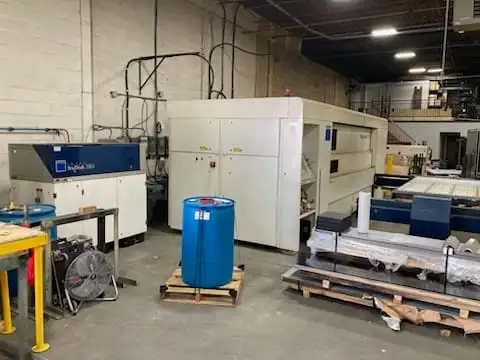

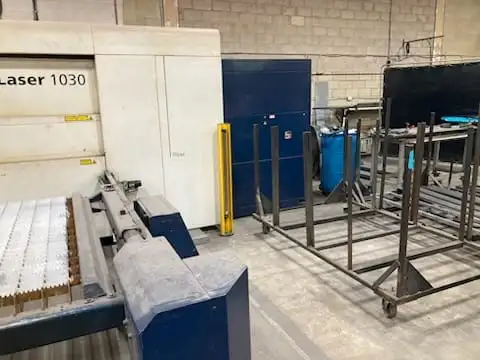

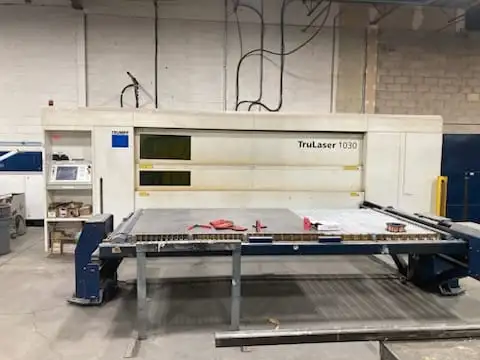

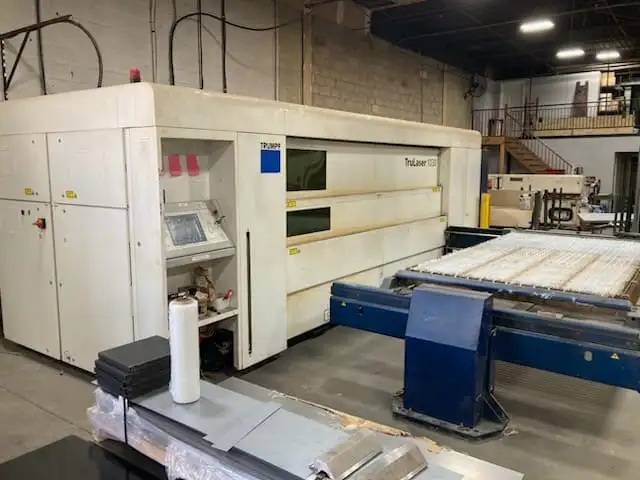

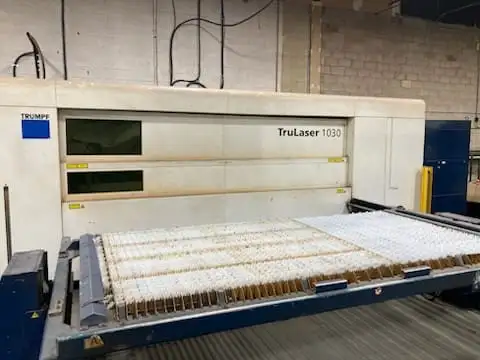

Here Is A Trumpf TruLaser 1030 CNC Fiber Laser We Have In Stock,
If You Require Anymore Photo`s & Info Please Call Or E-mail Us.

Specifications:

Model - TruLaser 1030
Year - 05/2012
Laser Power - 2000 W
Pallet Size - 60” x 120”
X Axis Travel - 121”
Y Axis Travel - 61”
Z Axis Travel - 3”
Max Speed (X/Y) - 2360 IPM
Combined Speed (X/Y) - 3340 IPM
Max Work Piece Weight - 1267 LBS
KVA - 26 KVA
Electrics - 460V/3PH/60HZ
Made In - USA
Approximate Weight - 20,000 Lbs
Approximate Overall Dimension - 342"L x 210"W x 86"H

Equipped With:

Siemens 840D CNC Control

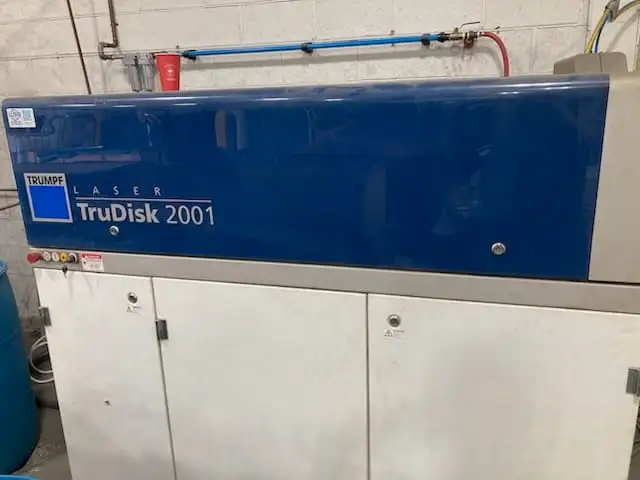

Trudisk 2001 Solid State Fiber Oscillator
Dual Pallet Changer
Chillier System
High Precision
High Speed

Mild Steel 1”
Stainless Steel 1"
Aluminum 1"
Copper/Brass 3/16”
