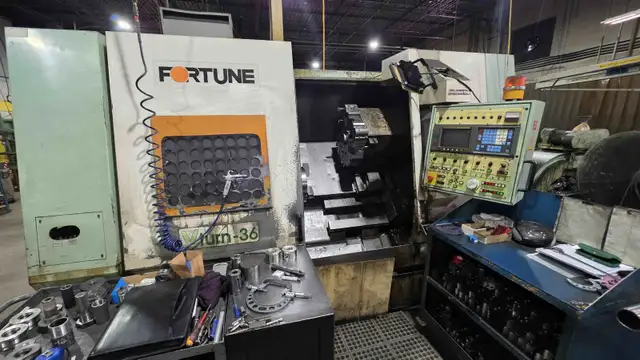

Here Is A Fortune Vturn-36 Slant Bed CNC Lathe We Have In Stock,
If You Require Anymore Photo`s & Info Please Call Or E-mail Us.

Specifications:

Model - Vturn-36
Year - 1997
Swing Over Bed - 25.5”
Maximum Turning Diameter - 21.6”
Swing Over Carriage - 19.6”
Center Distance - 35”
Z Axis Travel - 34”
X Axis Travel - 10.8”
Chuck Diameter (3 Jaw) - 12”
Spindle Bore - 4.13”
Number Of Tool Positions - 10
Max Spindle Speed - 2500 RPM
Control - Fanuc
Main Spindle Motor - 40 KW
Electrics - 240V/3PH/60HZ
Made In - Taiwan
Approximate Weight - 20,000 LBS
Approximate Overall Dimension - 190”L x 82”W x 88”H

Equipped With:

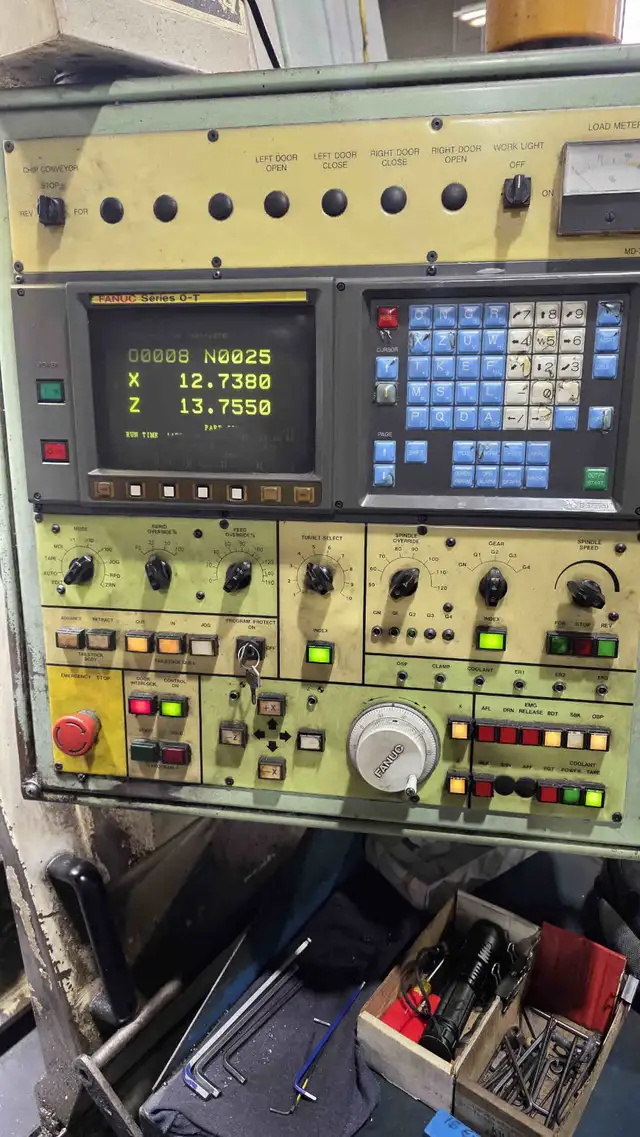

Fanuc Series O-T CNC Control
12” Three Jaw Pneumatic Chuck

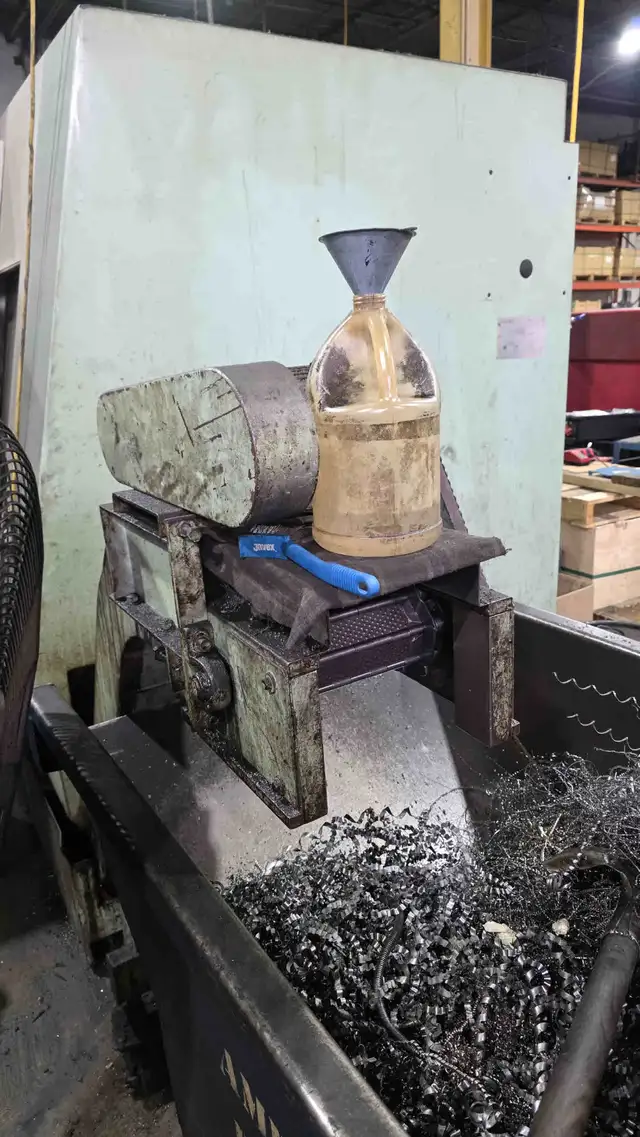

Chip Conveyor
Coolant System
Tailstock
Foot Pedal
Transformer
Manual Books

Avo’s Machinery Equipment Inc.
905-738-7958 PH
416-816-3054 CELL
416-844-8547 CELL
avosmachinery@rogers.com
www.avosmachinery.com

Thank You, Hope To Hear From You Soon.

Best Regards,
Greg/Avo/Albena
