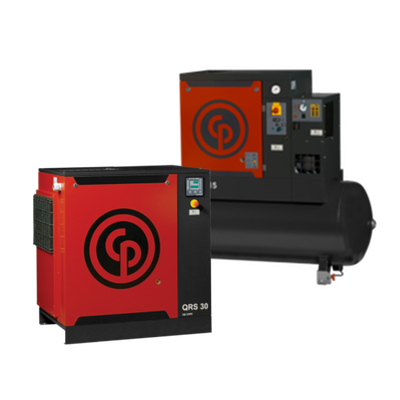

Chicago Pneumatic QRS Rotary Screw Compressor

QRS Series – 5 to 30 HP, Base Mount & Tank Mount c/w Dryer Option Available

Please Contact for Details: 416-573-7573

Starting At: $6645.00 (Freight Included with-in the GTA)

Flow Capacities QRS Series
- 5 HP = 18.1 acfm @ 145 psi (Available 230/1/60, & 230-575/3/60)
- 7.5 HP = 26.1 acfm @ 145 psi (Available 230/1/60 $230-575/3/60)
- 10 HP = 38.8 acfm @ 145 psi (Available 230-575/3/60)
- 15 HP = 54.9 acfm @ 116 psi (Available 230-575/3/60)
49.2 acfm @ 145 psi (Available 230-3-575/3/60)
- 20 HP = 82.2 acfm @ 125 psi (Available 230-575/3/60)
- 25 HP = 99.4 acfm @ 125 psi (Available 230-575/3/60)
- 30 HP = 113.8 acfm @ 125 psi (Available 230-575/3/60)

Standard Features:
• Low sound enclosure
• 150 psig standard (3-10M)
• 125 & 150 psig standard (10-20M, 100 & 175 available with kit)
• Continuous operating capability
• 60 gal. ASME/CRN receiver tank (3-10M)
• 132 gal. ASME/CRN receiver tank (10-20M)
• Single phase 230 TEFC motor (3-7.5)
• 3-phase, 208-230/460V and 575V, TEFC Motor (3-20M)
• Start/stop operation – QRS 3-10M 3-phase
• Load/no-load operation with timed shutdown – QRS 5.0-7.5 HP single phase – QRS 10-20M
• UL, cUL and CSA approved control panel
• 5-year warranty with authorized start-up
• Spin-on oil filter and separator
• NEMA 1 electrical protection
• Vibration isolated assembly

** Notes**
- Financing Available (Please ask for details)
- Installation & Setup also available (Please contact for details)
- Delivery included within The GTA (Please contact for details)
