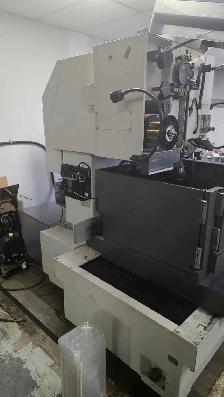

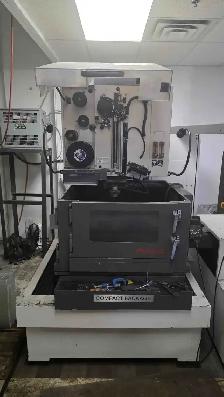

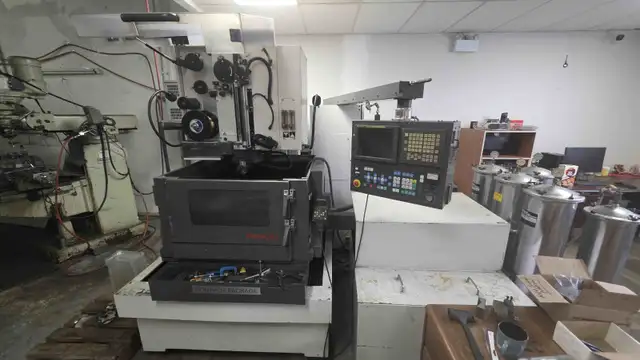

Here Is A Fanuc Robocut 1iA CNC Wire EDM We Have In Stock,
If You Require Anymore Photo`s & Info Please Call Or E-mail Us.

Specifications:

Model - Robocut 1iA
Year - 12/1998
Tank Size - 32.6” x 31.8”
Max Work Piece - 31.1” x 28.7” x 11.8”
X Axis Travel - 20.4”
Y Axis Travel - 14.5”
Z Axis Travel - 12.2”
U/V Travel - ( /-) 2.36”
Taper Capacity - ( /-) 30°
Table Feed Rate - 900 MM/MIN
Wire Diameter Range - 0.1 to 0.3 MM
Max Weight Of Work Piece - 1,000 KG
Tank Capacity - 530 L
Control - Fanuc
Electrics - 208V/3PH/60HZ
Made In - Japan
Approximate Weight - 7,000 Lbs
Approximate Overall Dimension - 115"L x 86"W x 92"H

Equipped With:

Fanuc Series 18i-W CNC Control
Remote Hand Pendant
Submergible Machining
RS232 Capability

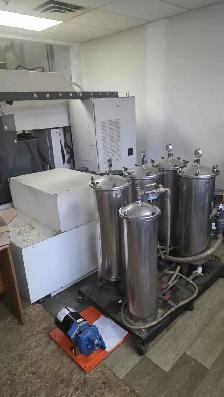

Extra Tanks
Automatic Wire Threader (Needs New Sensor)
