Gantry Machining Centers (incld. Bridge & Double Column)

Make VISION WIDE

Model: VB-3020

Year: 2006

Power 24.8 hp

RPM 8,000 RPM

# ATC 40

Taper 50

Table 66.93" wide x Lenght 122.05"

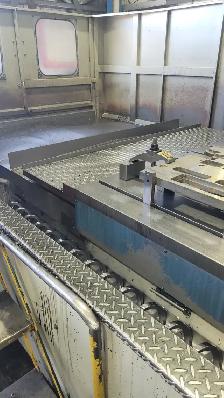

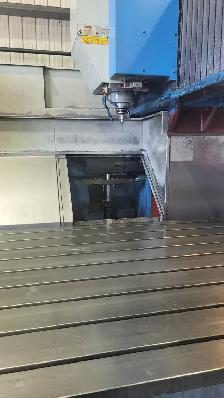

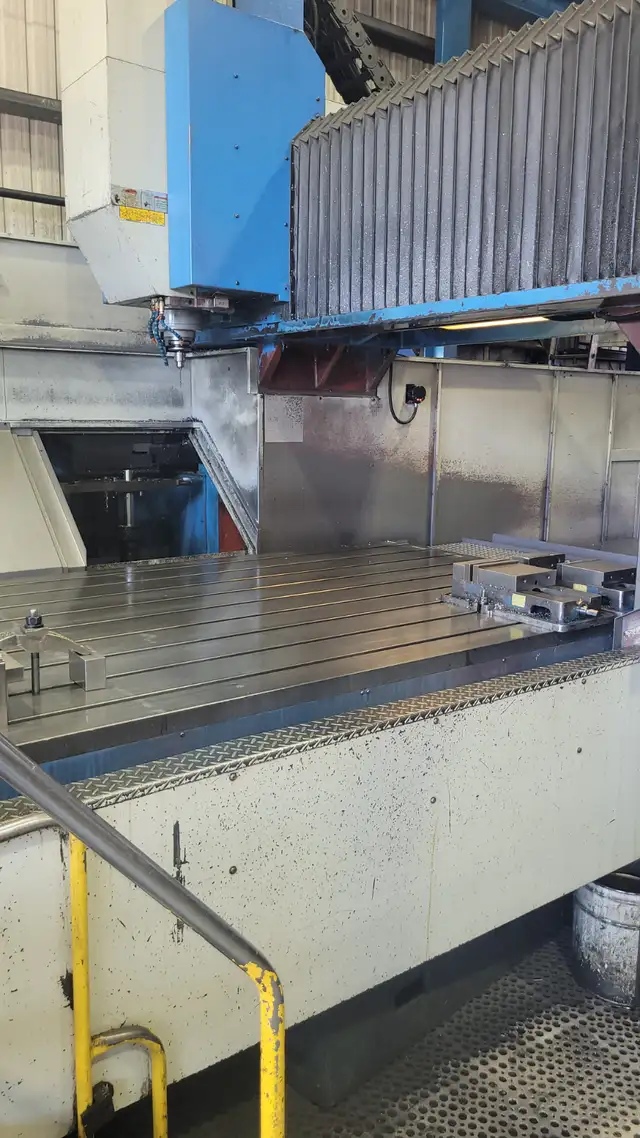

VISION WIDE VB-3020 Heavy Duty Cutting Double Column Machining Center (2006)

X-Axis Travel: 122.05 in. (3,100 mm)

Y-Axis Travel: 78.74 in. (2,000 mm)

Z-Axis Travel: 31.50 in. (800 mm) standard, with a 40.16 in. (1,020 mm) option.

Table Size (Length): 122.00 in. (3,100 mm)

Table Size (Width): 66.93 in. (1,700 mm)

Max Workpiece Weight: 22,000 lbs (11,000 kg)


Spindle Power: 24.8 hp (18.5 kW) continuous / 29.5 hp (22 kW) 30-minute rating.

Spindle Speed: 8,000 RPM

Spindle Taper: 50

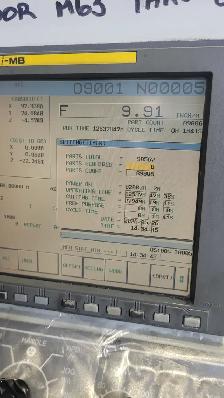

Equipped With Fanuc 18iMB CNC

Equipped With 40 Position Tool Changer

Heavy Duty X/Y/Z Box Ways: All movement is supported by heat-treated and hand-scrapped Box Ways for low friction, precise feeding, and maximum rigidity during heavy cuts.
Structural Integrity: Features a Meehanite grade casting iron structure with a box-shape, V-shape reinforced bed designed to carry up to 11,000 kg stably.
Versatility: Equipped with a standard 4,000 RPM 2-step gear spindle and 40-tool magazine (optional), this model is ready for auto head attachments to perform 5-face mold surface machining.
Precision Layout: The spindle is positioned close to the Y box way to reduce unbalanced cutting moments and offset thermal expansion.


MARK ROSS 514-944-6048
