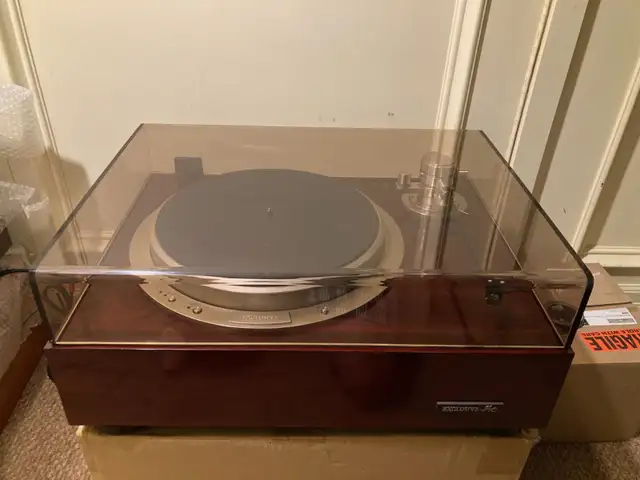

For sale a rare and hard to find PIONEER EXCLUSIVE P10 direct drive quartz lock turntable in excellent condition. Turntable works properly and keeps speed well. This model comes with Pioneer EA-10 original long tonearm and working Shure M95ED cartridge.

DESCRIPTION ( from website ):

A high-end stereo player system announced around the same time as Exclusive P3.
As with the P3, in order to pursue the music quality thoroughly, the technical know-how was poured into it and each piece was hand-made.

EM-10 is used for the phono motor part.
The EM-10 uses a coreless, slotless structure linear torque hole motor that does not cause cocking, resulting in a strong starting torque (3kg-cm).
In addition, in order to obtain stable rotation, In addition, in order to obtain stable rotation, a balanced toy type SHR system (Stable hanging rotor) is used for the bearing structure to reduce side pressure applied to the bearing and lower the center of gravity of the rotating part, achieving an uneven rotation performance of 0.007% and a rotational speed accuracy of 0.002%.

EA-10 is used for the tone arm.
The EA-10 adopts a level variable type oil dump mechanism using reliable silicon oil, which improves traceability and greatly reduces intermodulation distortion that occurs during large amplitude reproduction in the low frequency range.
In addition, by rotating the adjustment ring, the damping is turned off so that the horizontal balance can be easily taken accurately.

In order to flatten the mechanical impedance of the tone arm, we repeatedly analyze and listen to the vibration mode of every part and use a straight tapered pipe made of carbon fiber that is integrated with the head shell. This reduces the vibration of each part in fine details and enables playback with stable sound quality from MM to MC.

The cabinet uses a non-resonant slit-type laminated solid board, and a low-center-of-gravity insulator, which is strong against howling and prevents unnecessary vibration for players, is installed from above inside the body.
In addition, it is finished with an Andes Rosewood natural wood finish and combined with a 5 mm thick smoked acrylic cloth for a simple design.

SPECIFICATIONS:

Type - Cartridgeless player system
Phono Motor Unit (EM-10):

Motor type - Linear torque DC hall motor
Bearing structure - SHR system
Drive system - Direct drive
Control system - Quartz PLL
Number of revolutions - 33 1/3, 45 rpm
Speed accuracy - 0.002%
Uneven rotation - 0.007% (WRMS, FG Method) / 0.015% (WRMS, JIS Record Method)
S/N - 78dB(DIN-B)
Starting torque - 3kg-cm
Load versus load characteristic - No change in rotational speed up to needle pressure of 540g
Start-up characteristic - 0.9 sec
Turntable - 31 cm aluminum low-pressure casting, weight 2.8 kg (including anti-vibration material)
Inertial mass - 680kg-cm2(including motor rubber seat)

Tone Arm Unit (EA-10):
Type - Dynamic balance twin pipe replacement system
Straight pipe with integrated head shell
Effective arm length - 282mm
Overhang - 12.5mm
Tracking error - 1.85 °, -1.10 °
Needle pressure adjustment range - 0 ~ 3g (0.1g step)
Height adjustment range - / - 3 mm
Output code - With Low Impedance Gold-Plated Plug (oxygen-free copper Wire)
Base mounting part - Collet chuck system
Braking part - Low-frequency braking mechanism using silicon oil
(Variable Damping Coefficient Method)
Attachment mechanism - Direct lever type anti-skating
Silicone Oil Dump Type Arm Lifter

(Main Body):
Cabinet - Andes Rosewood natural wood Finish
Hood - 5 mm Thick Acrylic Smoke Laminated Hood
HINGE - Fleece Top, Removable
Insulator - Coil spring and rubber insulator (low center of gravity structure)
Brake with quick stop - Electronic and mechanical combined brake
Operation button - Feather Touch, Short Stroke Push SW (Power Removal SW)
External dimensions - Width 550x Height 245x Depth 415 mm
Weight - 30kg
