Model: EMC-GH3080
Specifications
Frame system:

Material: Hot Galvanized steel
Arch：Φ60*1.8mm ,1.5m spacing
Purline：Φ32*1.5mm, 5runs of Φ32*1.5mm
tube on roof to strengthen structure
End column: Φ60*1.8mm
Beam: Φ32*1.5mm
Wind brace:Φ32*1.5mm

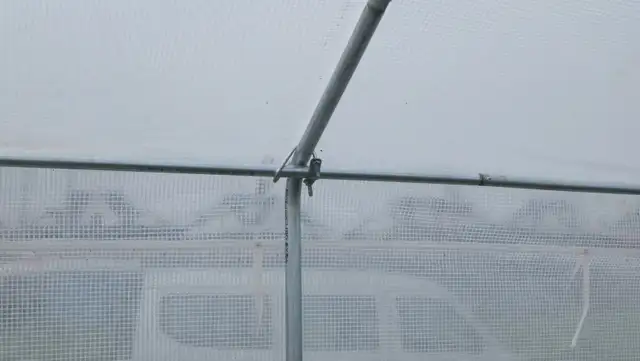

Card slot & Wire lock
Top connection card & other accessories
Door: 2*2m Sliding Door

Cover system:

Material：The tunnel greenhouse is covered by PE film,it is fixed by the card slot and the wire lock
Thickness: 200 micron
UV transmission: 300 -390%
Diffusion: ≤20%
Global light transmission: ≥90%
Horizontal/Vertical Elongation: ≥690%
Horizontal/longitudinal stretch length: ≥35N/mm²
Impact strength:1200
Haze: ≤15
Thermal insulation, Anti-dripping, High intensity, high light transmittance, enhance

Side ventilation system:

Manual film winder
Plastic card to fix the film on the rolling rod
Rolling Rod: φ36*1.5mm
Winding rod: φ36*1.5mm
Laminated rope
Laminated rope hook
Windscreen
Insect net

Warranty

Warranty Terms and Conditions (EN)
Conditions de Garantie (FR)

Packing details

Size: L87”*W47”*H47”
Weight: 2930 lbs
