Item number: 057099
-

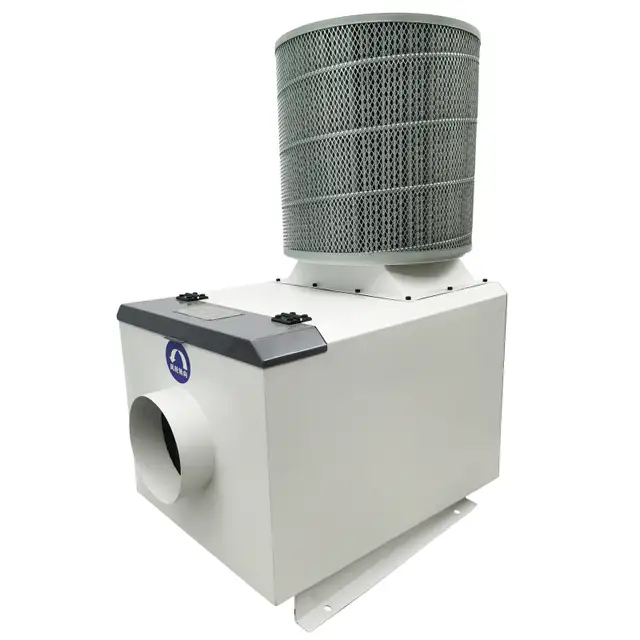

220V 1PH CNC Machine Tool Processing Center Oil Mist Collector Industrial Soot Purifier 650-823CFM 057099

Product Overview
Oil mist purifier is a professional equipment installed in CNC machining centers, grinding machines, lathes and other kinds of machine tools to collect and purify environmental pollutants such as oil mist, water mist and dust produced by mechanical processing. It can reduce the influence of oil fog on the control system of the machine tool circuit system and reduce the maintenance cost of the machine tool. Protect the physical and mental health of employees and reduce the occurrence of occupational diseases.

Product Parameters
Voltage: AC220V
Phase number: 1
Power: 1HP (750W)
Air volume: 650-823cfm (1100~1400m3/h)
Speed: 2,800 RPM
Maximum static pressure: 0.95 Kpa
Inlet diameter: 5.9" (150mm)
Noise level: 66 dB(A) or less
Applicable area: 2m³
Filtration efficiency: 98%; 0.2um or more
Net weight / Gross weight: 68.3lbs(31kg) / 77.1lbs(35kg)

Product Features & Advantages

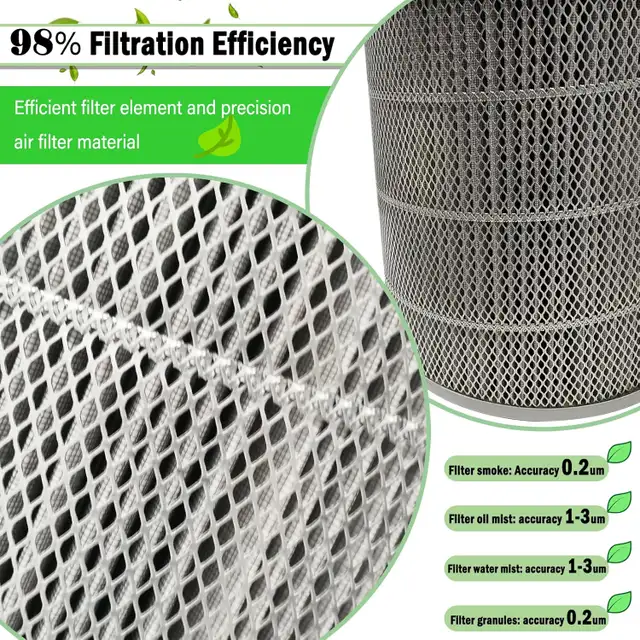

Filter Element
Efficient filter element and precision air filter material are used to effectively deal with oil mist, water mist, smoke, dust odor and harmful gases. Effective adsorption of particles above 0.2um, filtration efficiency of 98%.

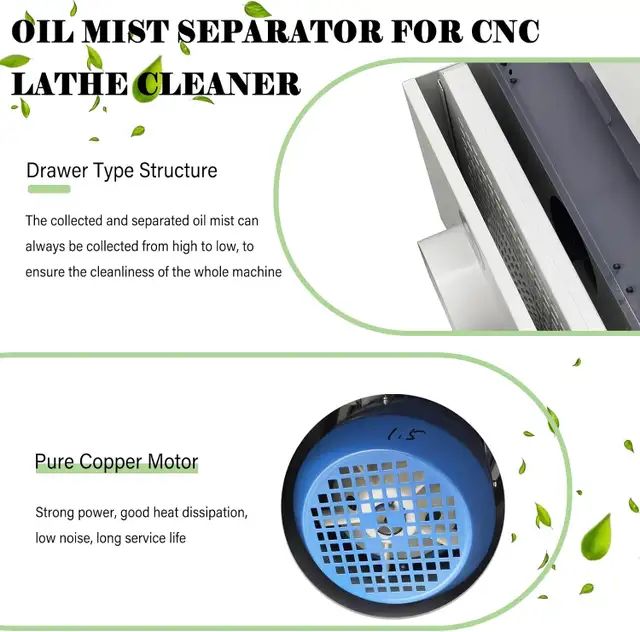

Pure Copper Motor
The oil mist purifier adopts a pure copper motor, delivering strong power and high efficiency. Its simple structure ensures long-lasting stability, high reliability, and low maintenance costs.

Easy to Clean
Drawer type filter adopts drawer type structure, and can be removed at any time through detachable plate, which is convenient for cleaning and maintenance. The bottom adopts the inclined Angle design, the collected and separated oil mist can always be collected from high to low, to ensure the cleanliness of the whole machine and improve the use efficiency.

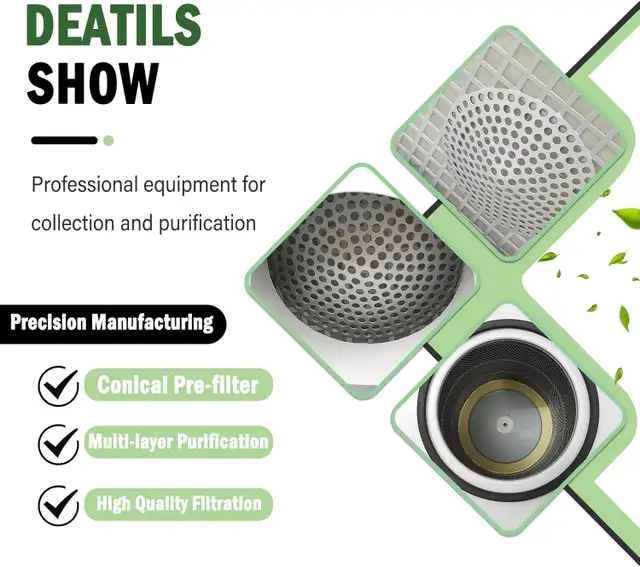

Multi-layer Purification
The use of drawer type filter cotton and high efficiency filter bucket, block large particles, multiple filtration, stable and efficient, purify the workshop air.

Oil Return Port
There is a design of oil return port at the bottom, the oil separated from the oil return port is discharged through the oil discharge port, and the collected oil mist can be reused.

Shockproof Pad
Four rubber shockproof pads at the bottom, which are non-slip, wear-resistant, and provide good silence, ensure the stability of the machine and prevent water from entering from the bottom.

- The turbine design is designed to effectively avoid dust deposition on the surface, while ensuring that vibration problems can be avoided even if there are a large number of pollutant particles.
- Small size, save installation space; Suitable for all kinds of small machine tool top mounting.
- The filter cotton has a longer life, simple and convenient maintenance, and lower consumable cost.
- Low decibels and high frequency make you feel more comfortable working environment.
- Multi-layer high performance filter cotton can intercept and capture the smallest particulate pollutants, preventing pollutants from re-release and diffusion in the workshop.
- Rapid purification, separation and recovery of oil mist and water mist produced in the work of machine tools and equipment, and re-sending the purified air into the workshop to improve the air environment.



Item Included: 057099

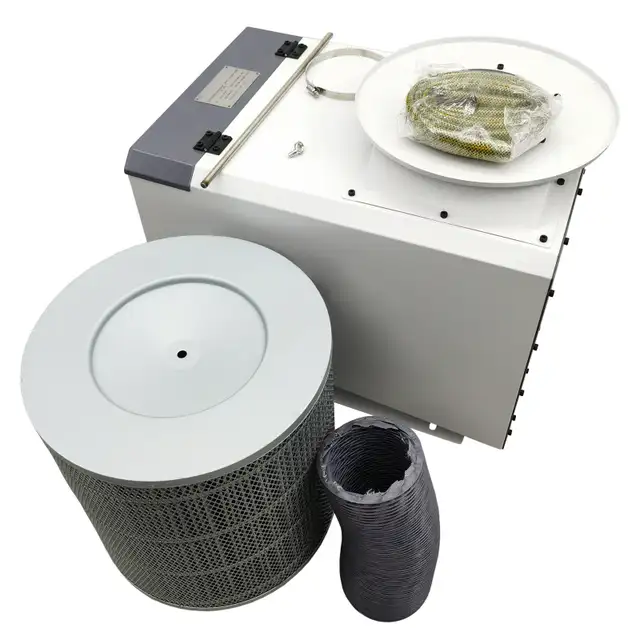

Oil mist purifier *1
Accessory Kit *1
